System Diagram

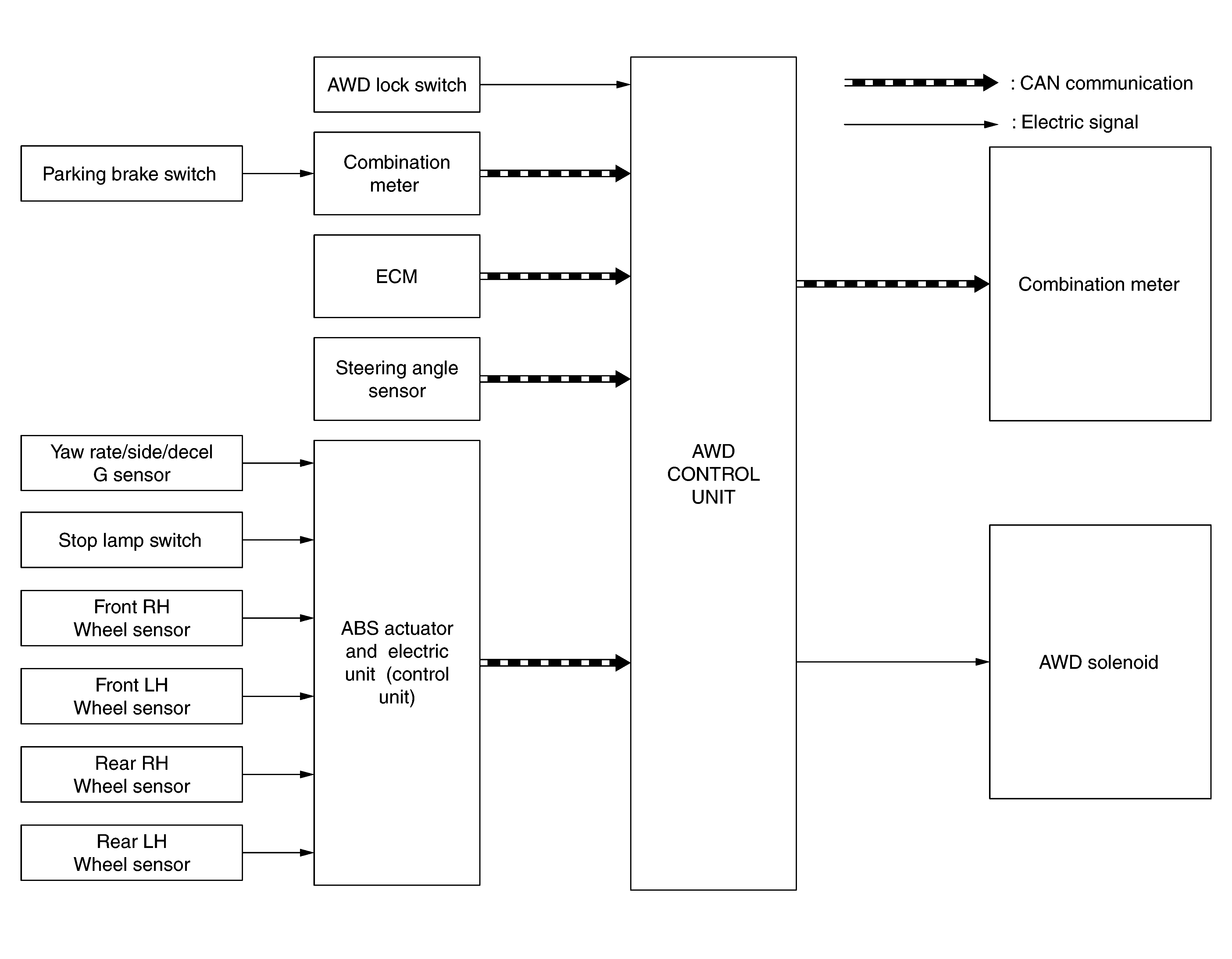

Fig 1: AWD - System Diagram
G09156033Courtesy of NISSAN NORTH AMERICA, INC.

Signal with Communication Line

Major signal transmission between each unit via CAN communication lines are shown in the following table.

Component parts Signal item
Combination meter Mainly transmits the following signals to AWD control unit via CAN communication.
  • Parking brake switch signal

Mainly receives the following signals from AWD control unit via CAN communication.
  • AWD warning lamp signal
  • AWD LOCK indicator lamp signal
Steering angle sensor Mainly transmits the following signals to AWD control unit via CAN communication.
  • steering angle sensor signal
ABS actuator and electric unit (control unit) Mainly transmits the following signals to AWD control unit via CAN communication.
  • Each wheel speed signal
  • Stop lamp switch signal (brake signal)
  • Yaw rate sensor signal
  • Side G sensor signal
  • Decel G sensor signal
ECM Mainly transmits the following signals to AWD control unit via CAN communication.
  • Accelerator pedal position signal
  • Engine speed signal
