Power Control System (IPDM/Er)
>>
Removal And Installation
>>
IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Exploded View
Exploded View

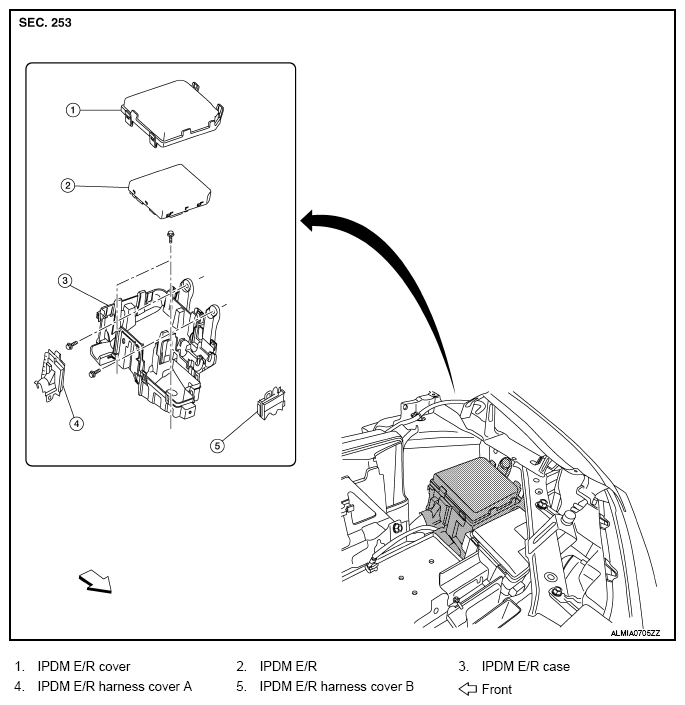

Fig 1: Exploded View Of IPDM E/R (Intelligent Power Distribution Module Engine Room)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
