Component Parts Location

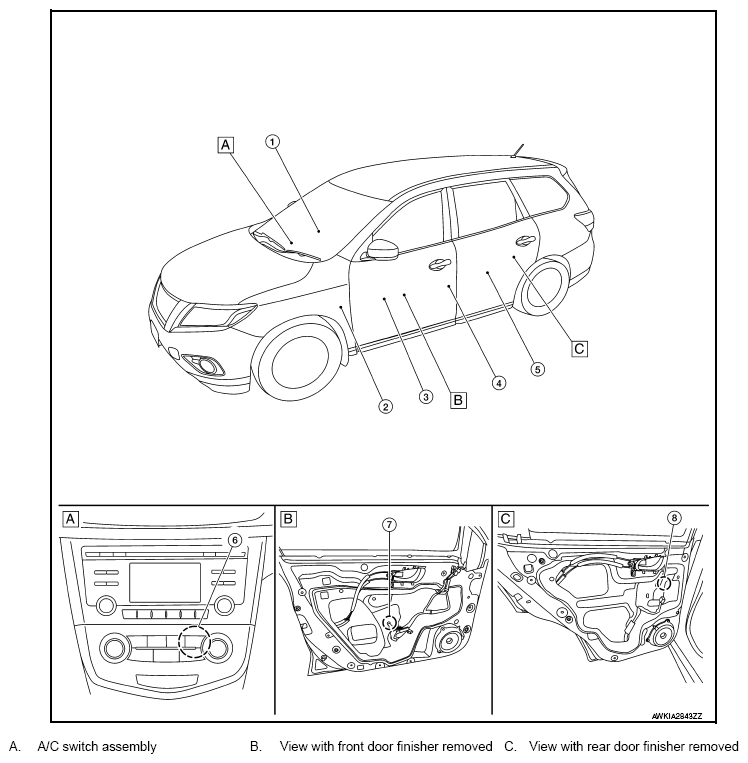

Fig 1: Power Window Control System Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component parts	Function
1.	Front power window switch	Refer to "POWER WINDOW SWITCH ".
2.	BCM	Supplies power supply to power window relay. Controls retained power. Refer to "BODY CONTROL SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
3.	Main power window and door lock/unlock switch	Refer to "POWER WINDOW MAIN SWITCH ".
4.	Front door switch LH (RH similar)	Inputs door open/close condition to BCM. Refer to "FRONT DOOR SWITCH ".
5.	Rear power window switch LH (RH similar)	Refer to "POWER WINDOW SWITCH ".
6.	Power window relay	Operates the power window system with the control signal from the BCM.
7.	Front power window motor LH (RH similar)	Refer to "POWER WINDOW MOTOR ".
8.	Rear power window motor LH (RH similar)	Refer to "POWER WINDOW MOTOR ".
