Quest SL
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (CVT)
>>
Wiring Diagram
>>
CVT Control System
>>
Connector End Views
Connector End Views

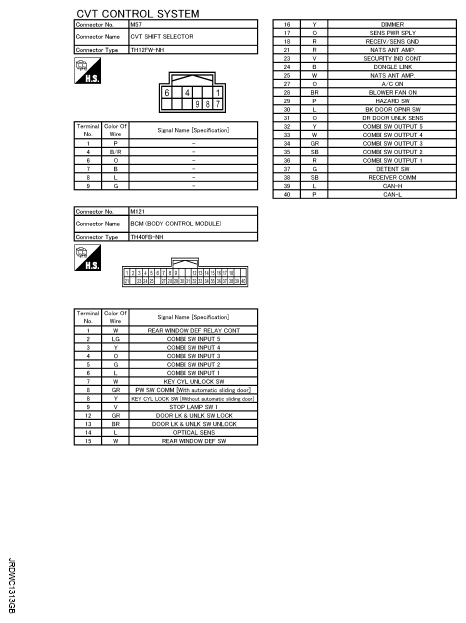

Fig 1: CVT Control System Connector End View (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

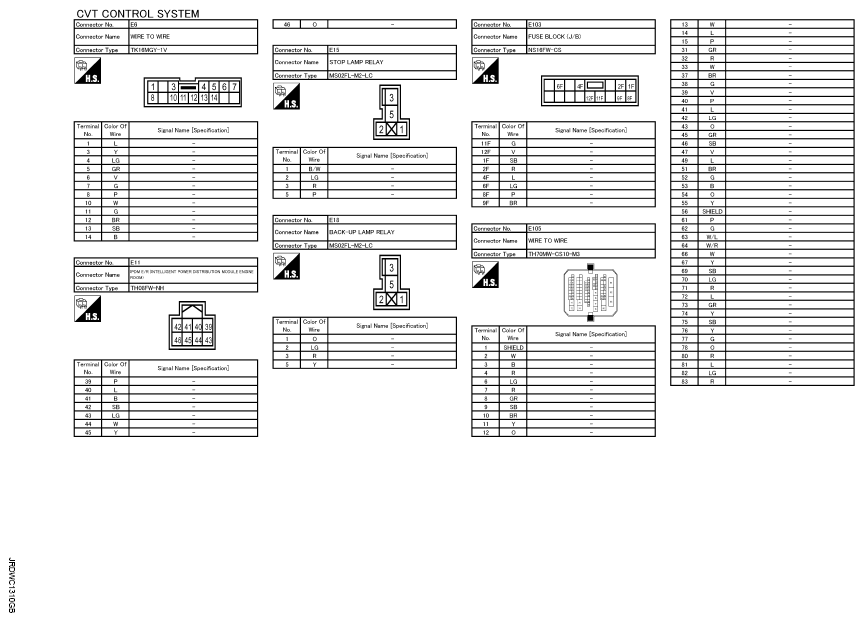

Fig 2: CVT Control System Connector End View (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

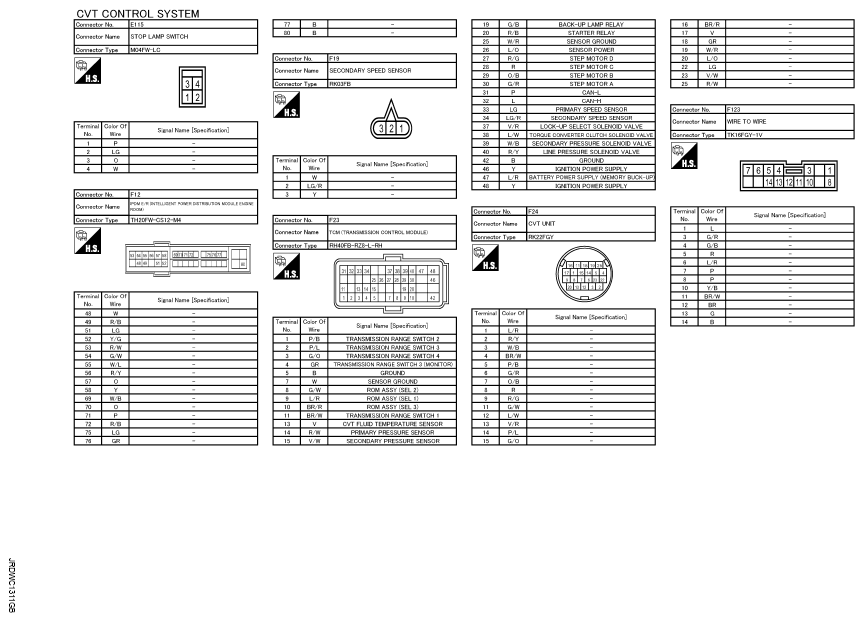

Fig 3: CVT Control System Connector End View (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

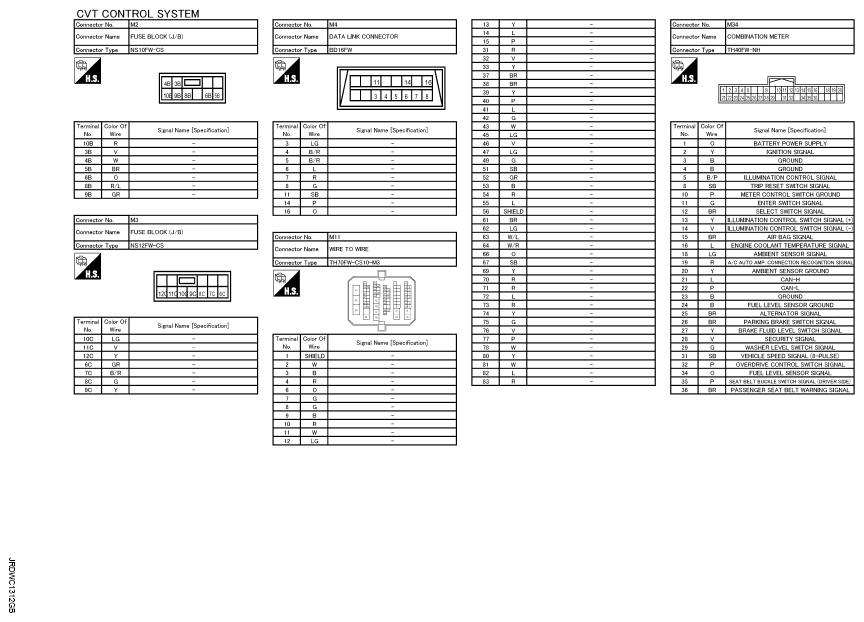

Fig 4: CVT Control System Connector End View (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
