Exploded View: Disassembly

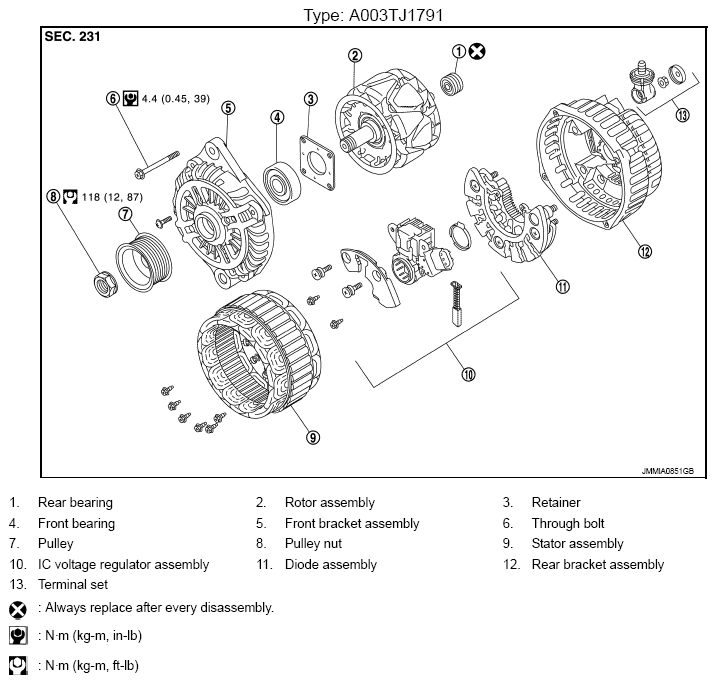

Fig 1: Disassembled View Of Alternator (Type A003TJ1791) With Torque Specifications

G09581938

Courtesy of NISSAN NORTH AMERICA, INC.
