Section 91 (Accelerator Control System (Hybrid))
>>
Removal And Installation
>>
Accelerator Pedal Assembly
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2014 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

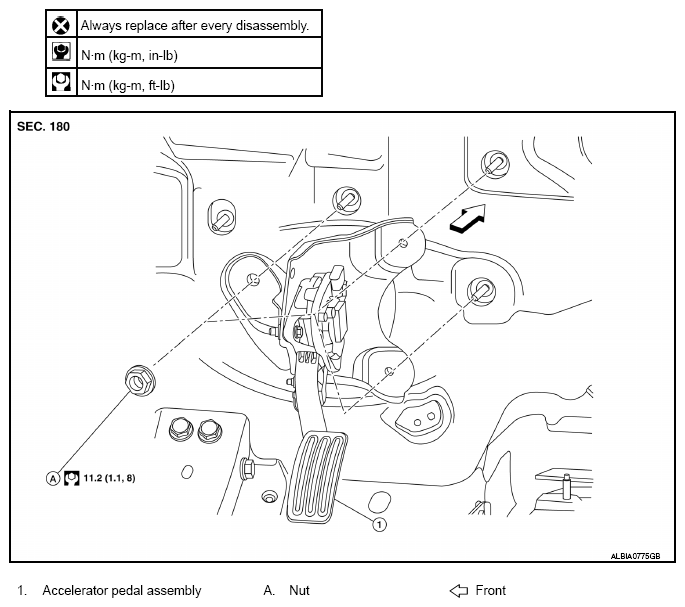

Fig 1: Exploded View Of Accelerator Pedal Assembly With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
