Connector End Views

WARNING: This page is about a different car, the 2014 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

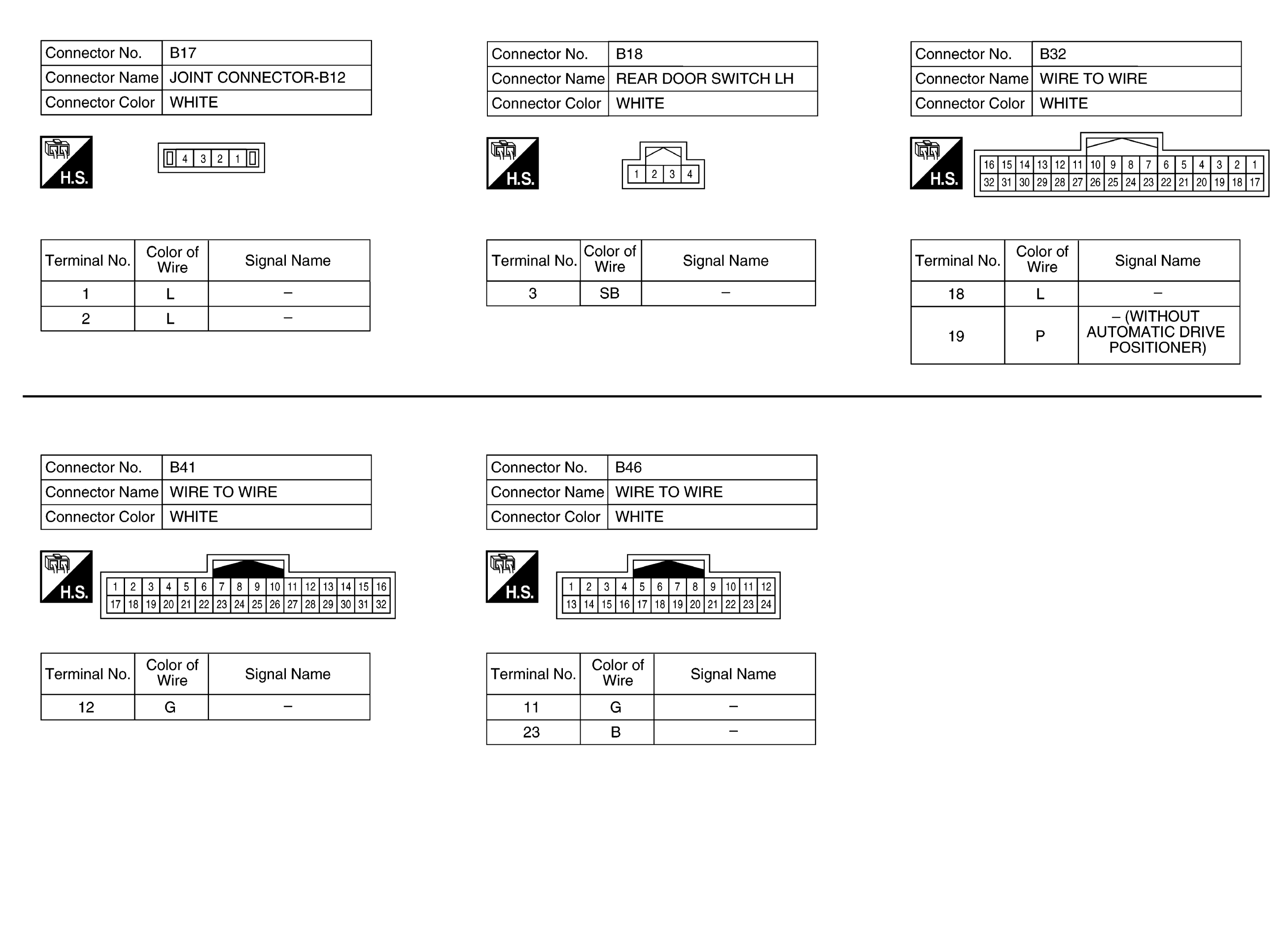

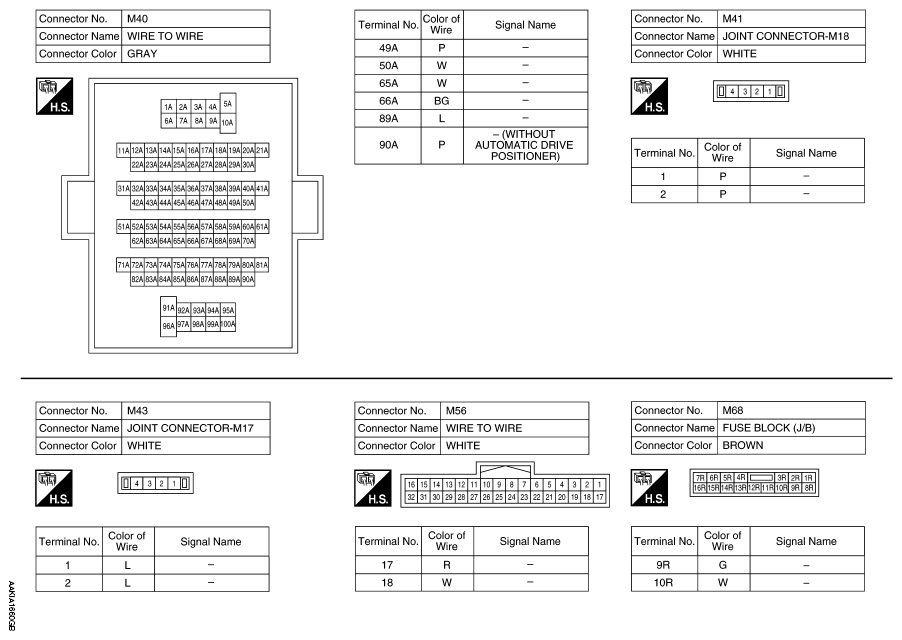

Fig 1: Engine Start Function Connector End Views (1 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

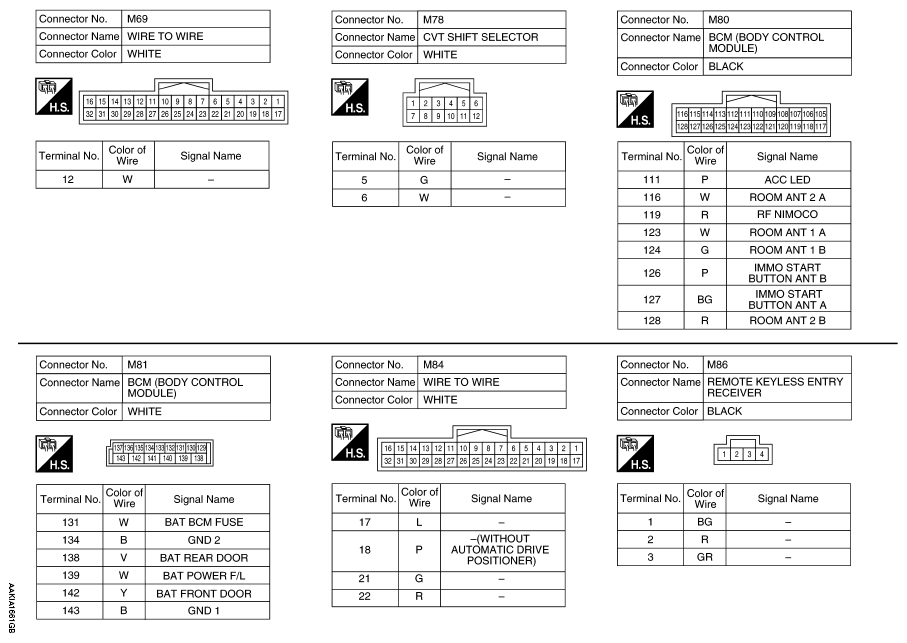

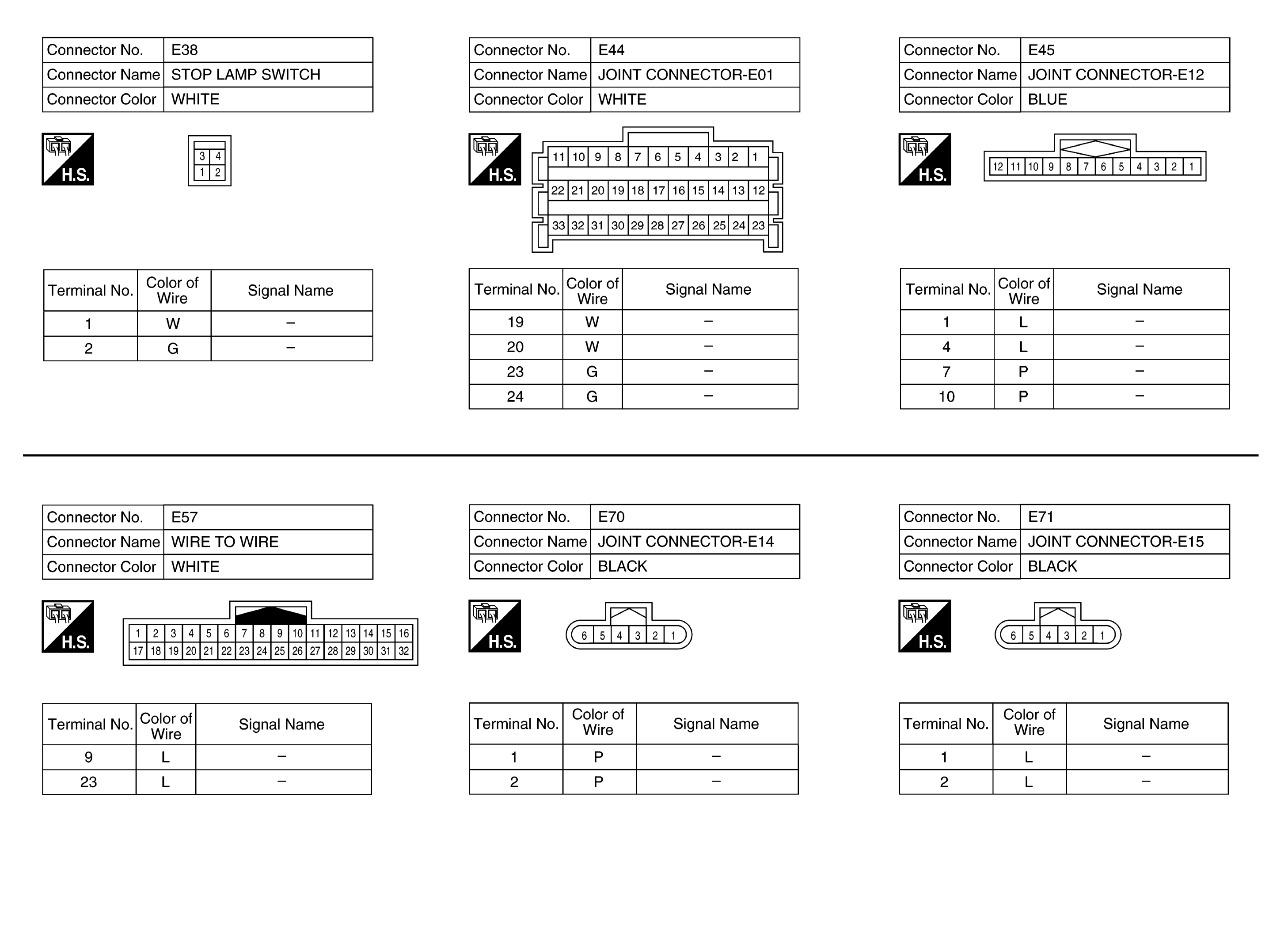

Fig 2: Engine Start Function Connector End Views (2 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

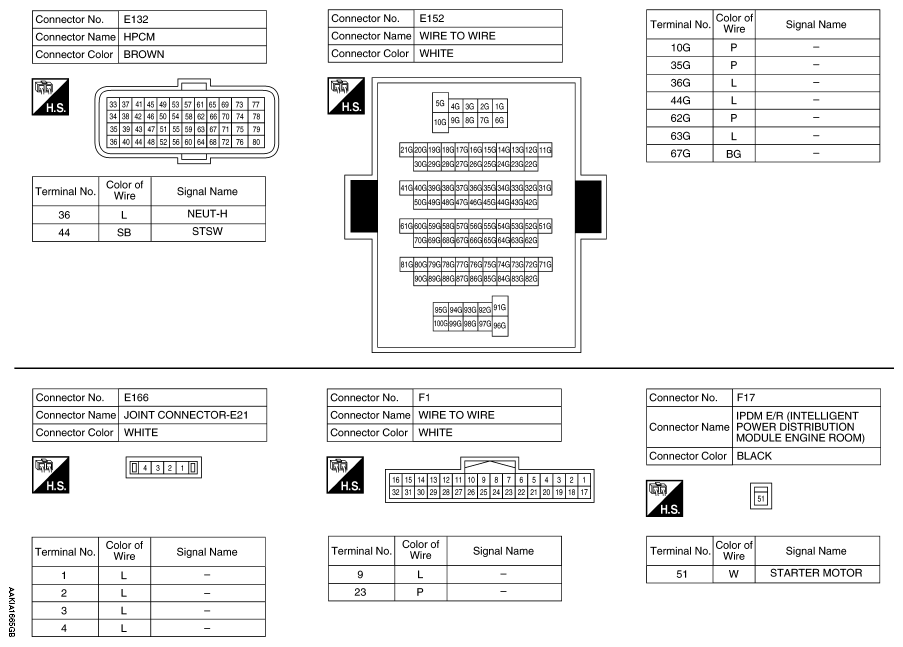

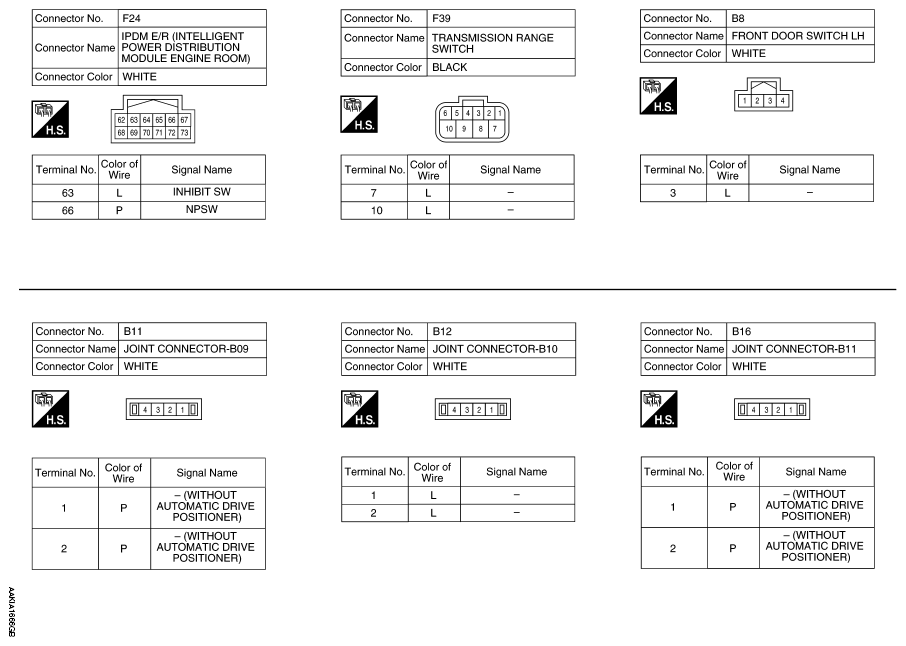

Fig 3: Engine Start Function Connector End Views (3 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

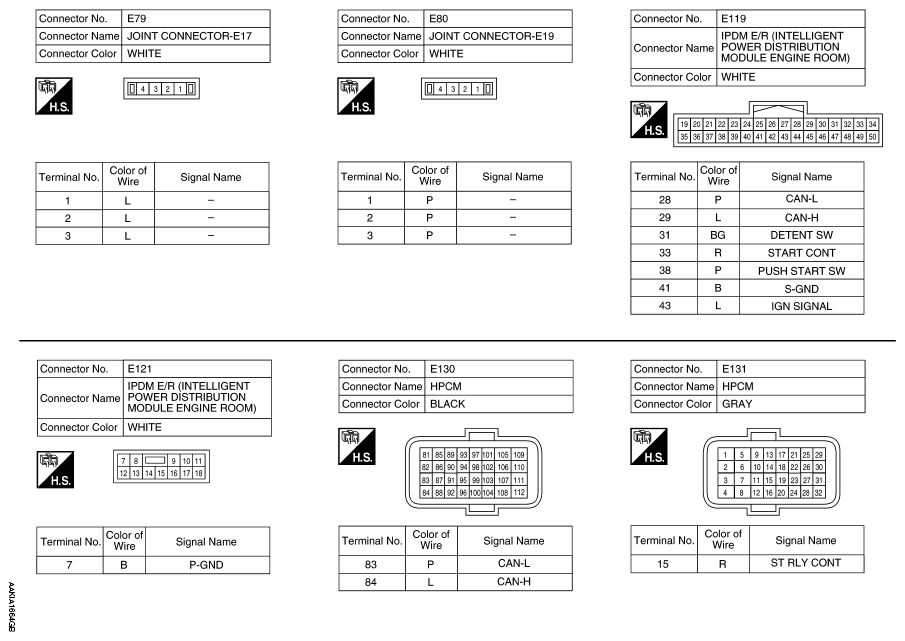

Fig 4: Engine Start Function Connector End Views (4 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

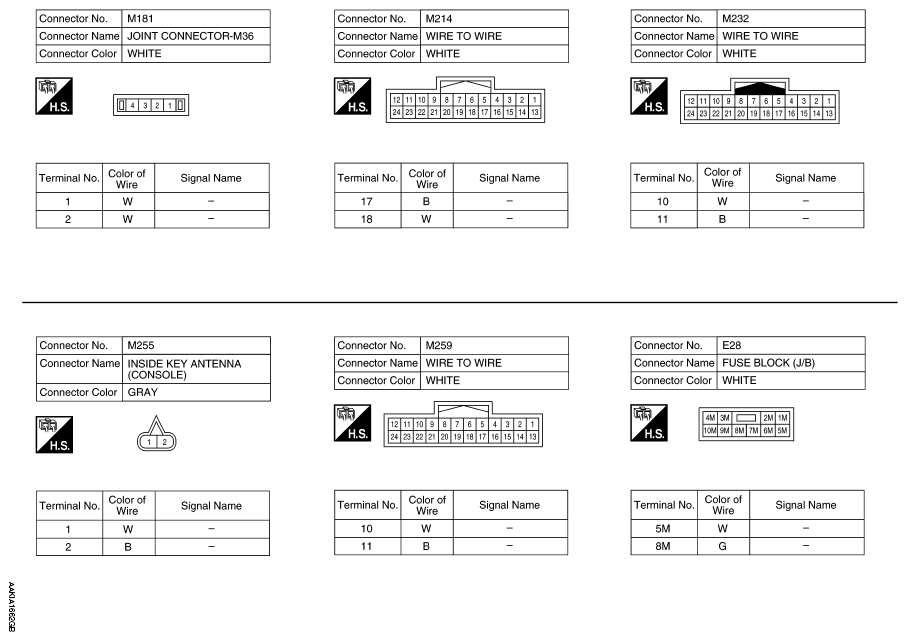

Fig 5: Engine Start Function Connector End Views (5 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

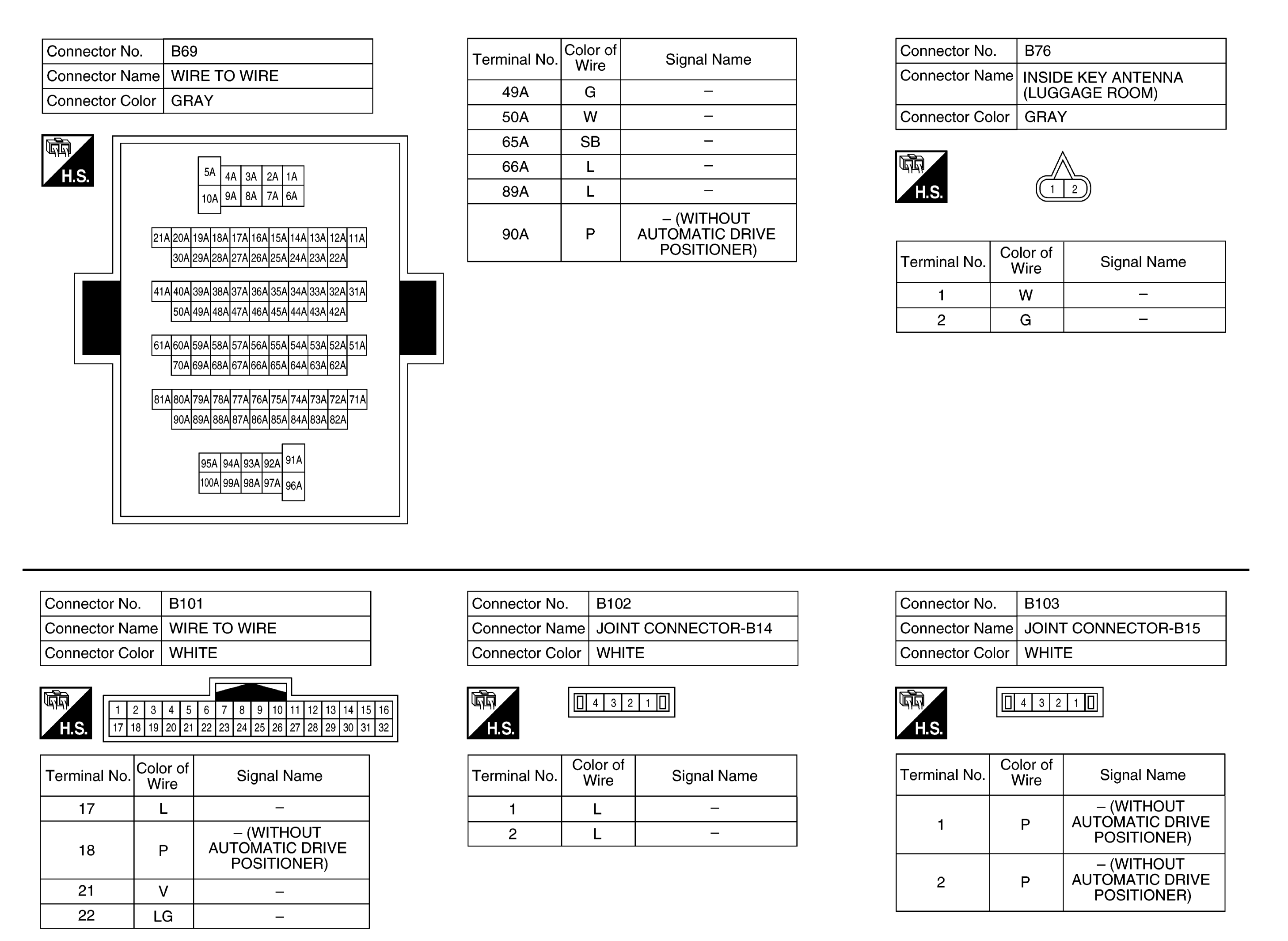

Fig 6: Engine Start Function Connector End Views (6 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

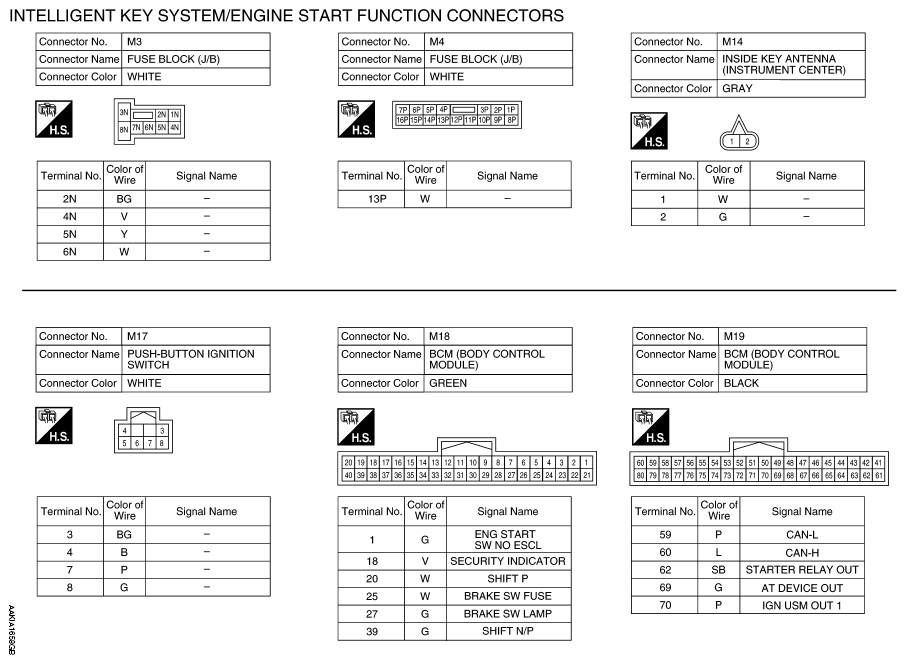

Fig 7: Engine Start Function Connector End Views (7 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

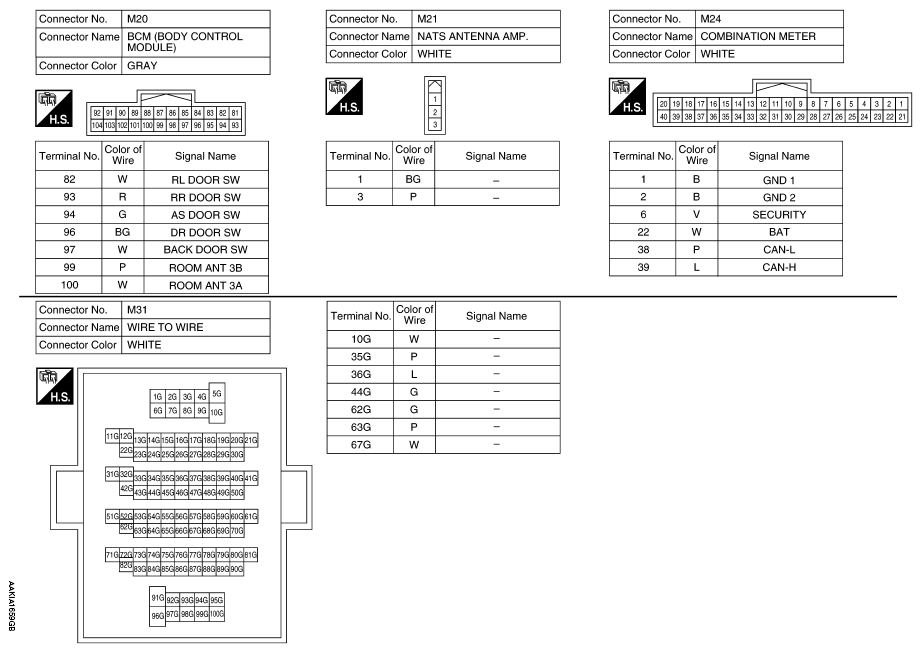

Fig 8: Engine Start Function Connector End Views (8 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Engine Start Function Connector End Views (9 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Engine Start Function Connector End Views (10 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Engine Start Function Connector End Views (11 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.
