INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION: System Diagram

WARNING: This page is about a different car, the 2014 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

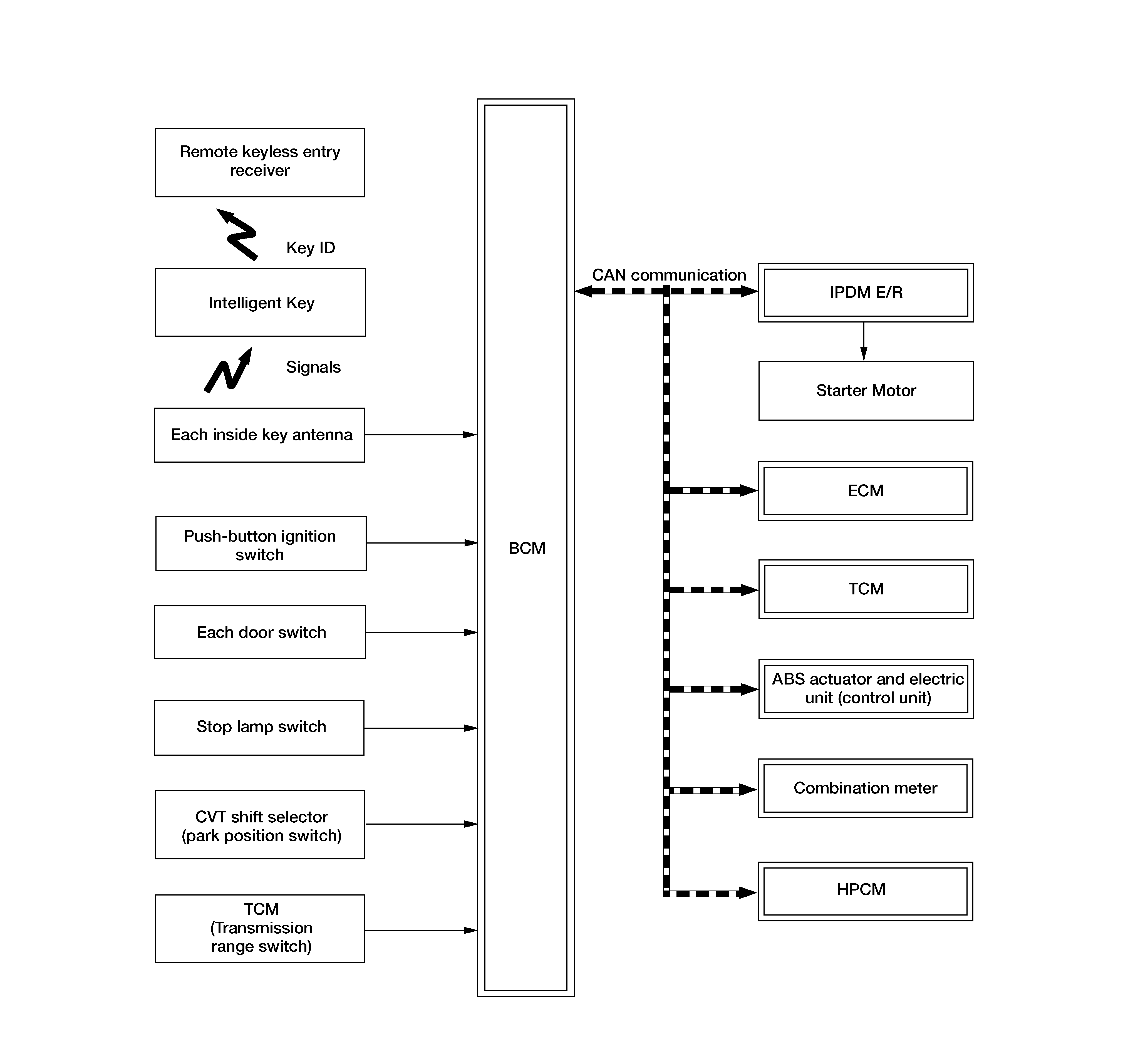

Fig 1: Intelligent Key System/Engine Start Function - System Diagram
G09516374Courtesy of NISSAN NORTH AMERICA, INC.
