Exploded View: Disassembly

WARNING: This page is about a different car, the 2011 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

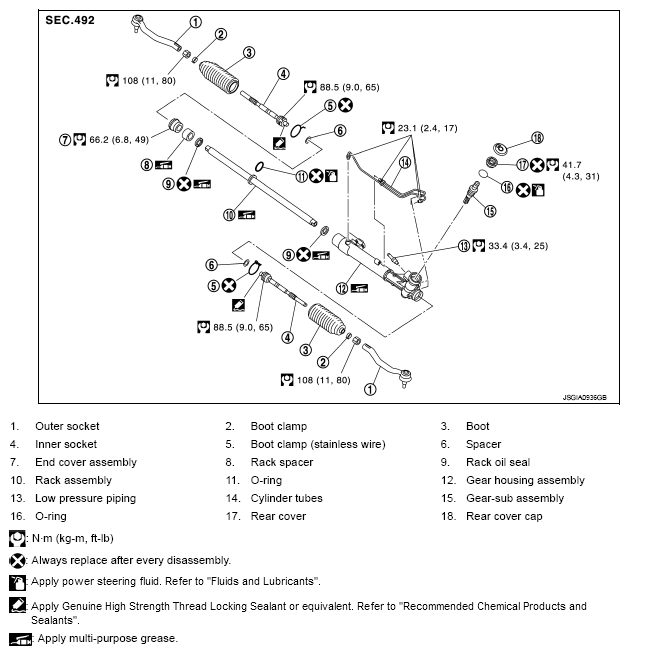

Fig 1: Disassembled View Of Steering Gear & Linkage With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
