Connector End Views

WARNING: This page is about a different car, the 2014 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

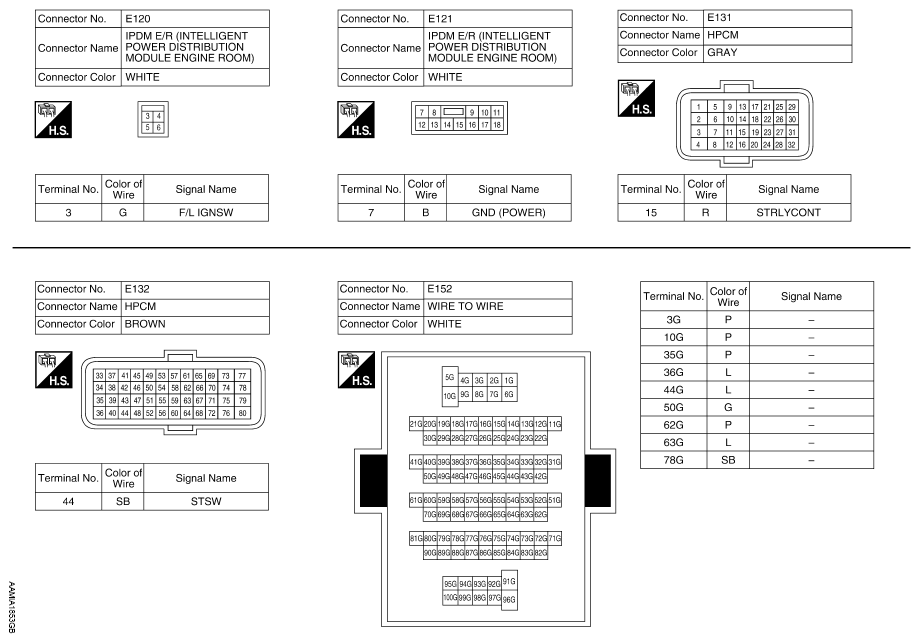

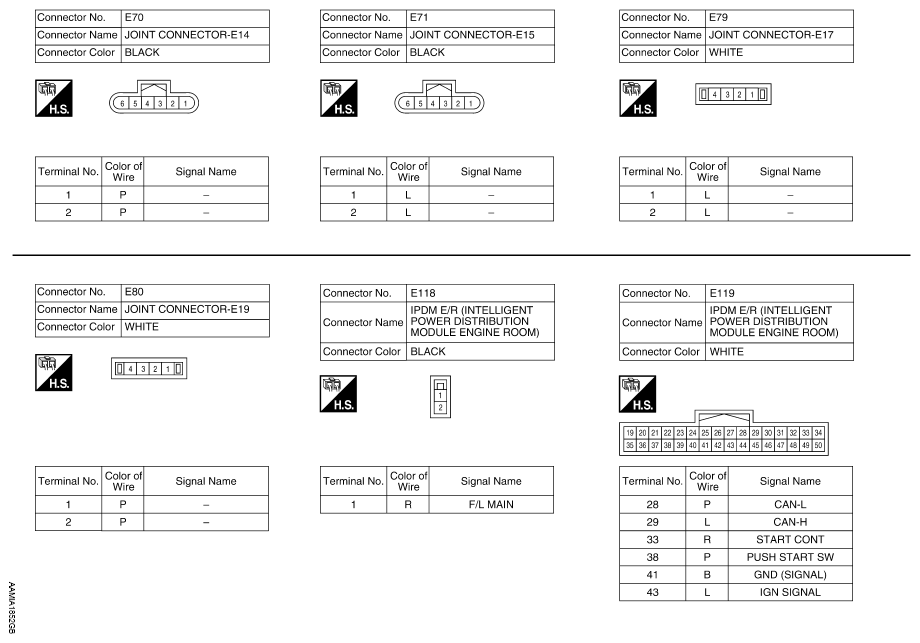

Fig 1: Power Distribution System Connector End Views (1 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

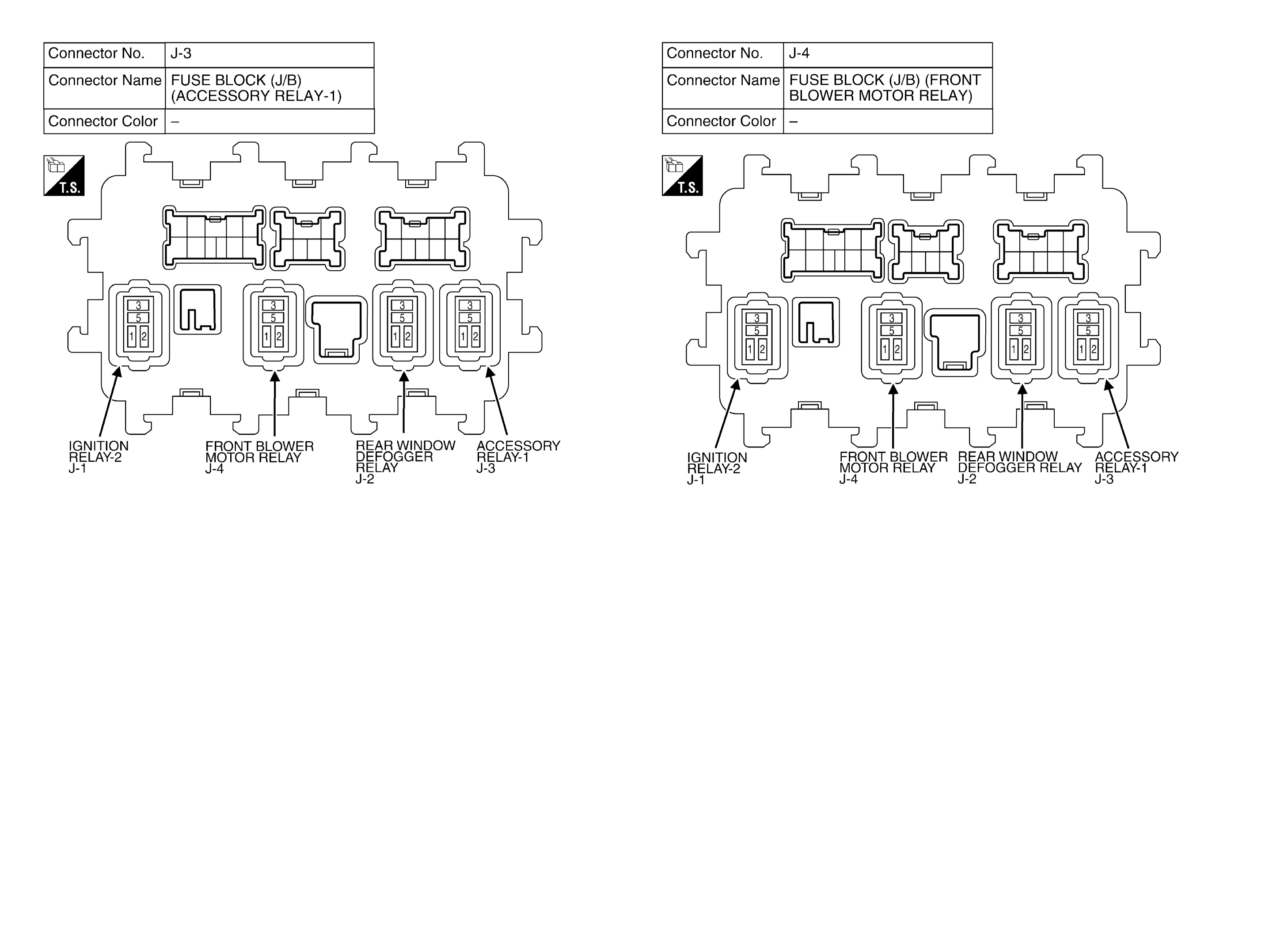

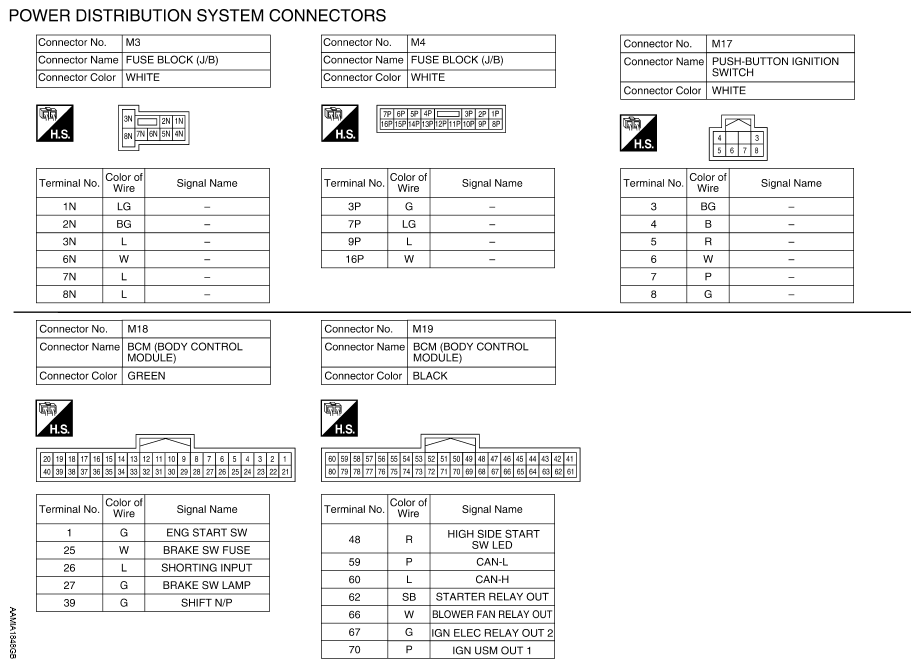

Fig 2: Power Distribution System Connector End Views (2 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

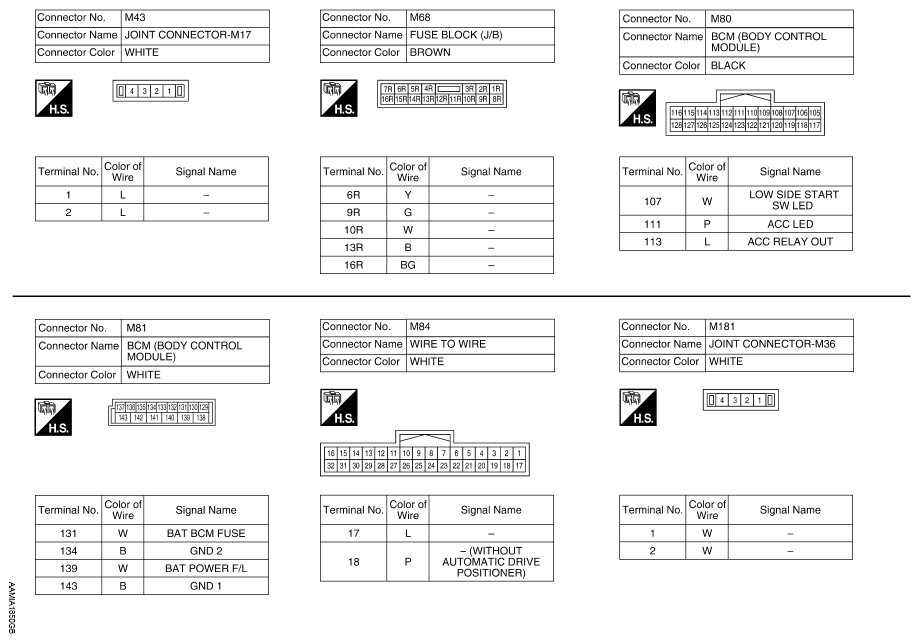

Fig 3: Power Distribution System Connector End Views (3 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

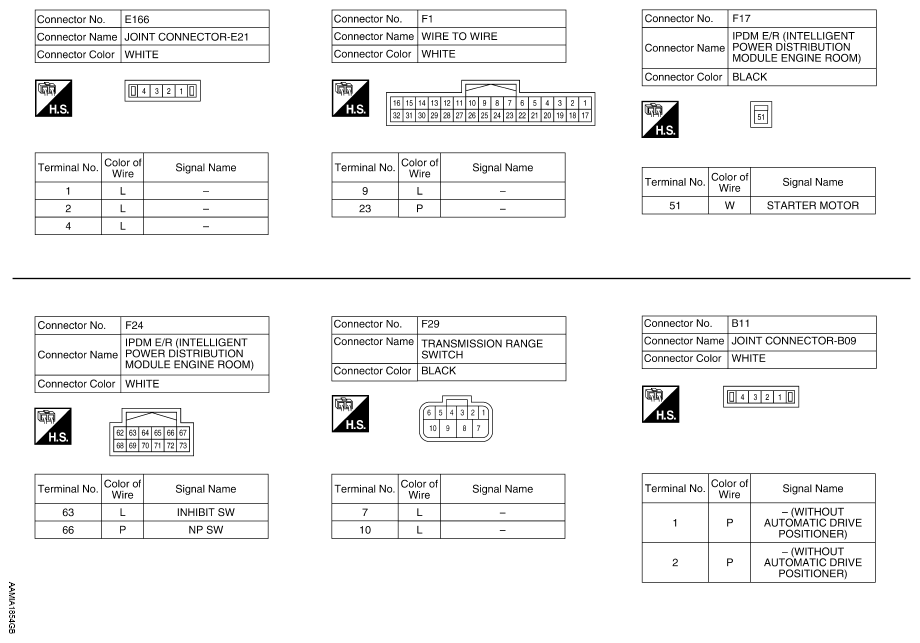

Fig 4: Power Distribution System Connector End Views (4 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

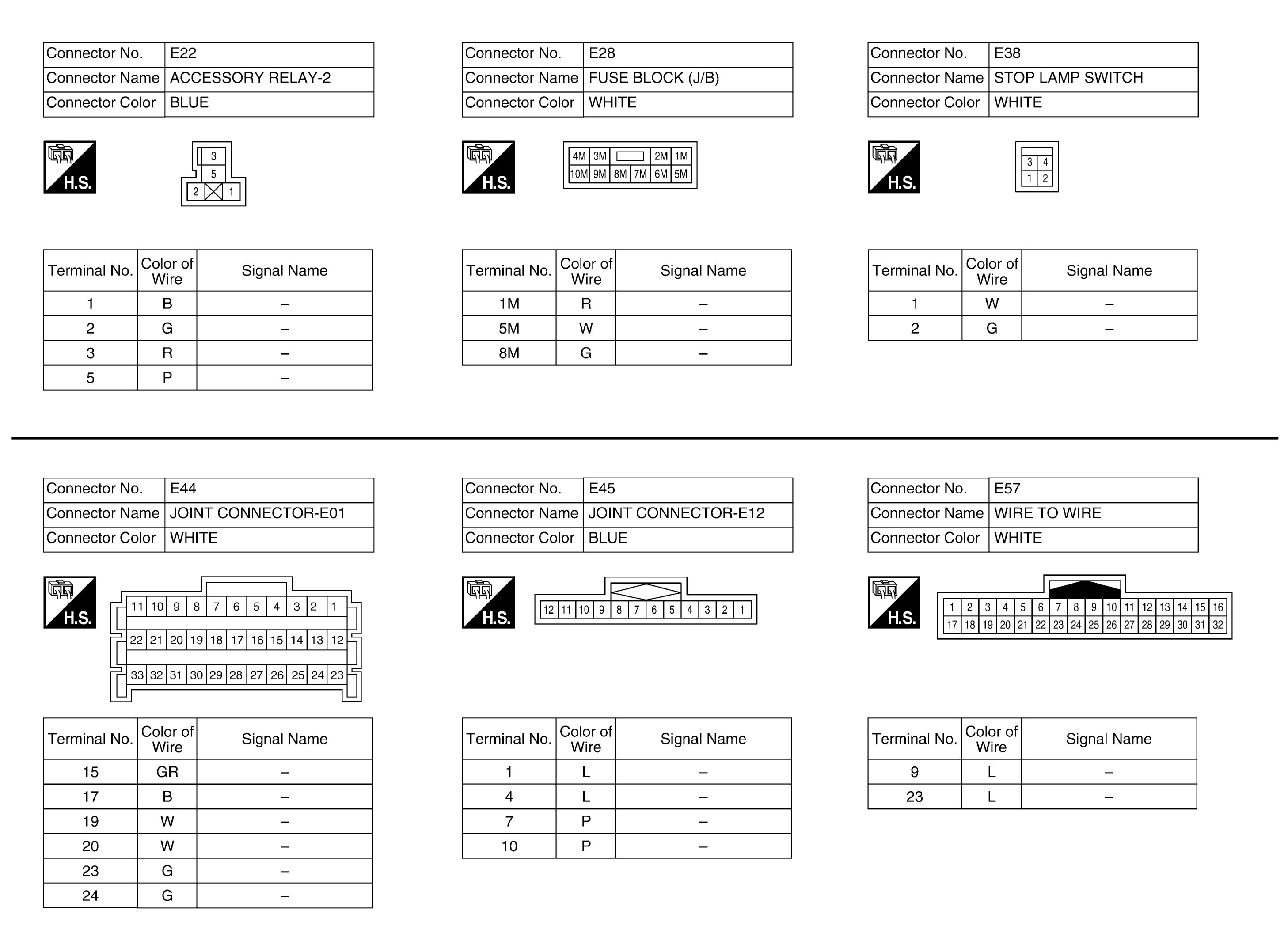

Fig 5: Power Distribution System Connector End Views (5 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

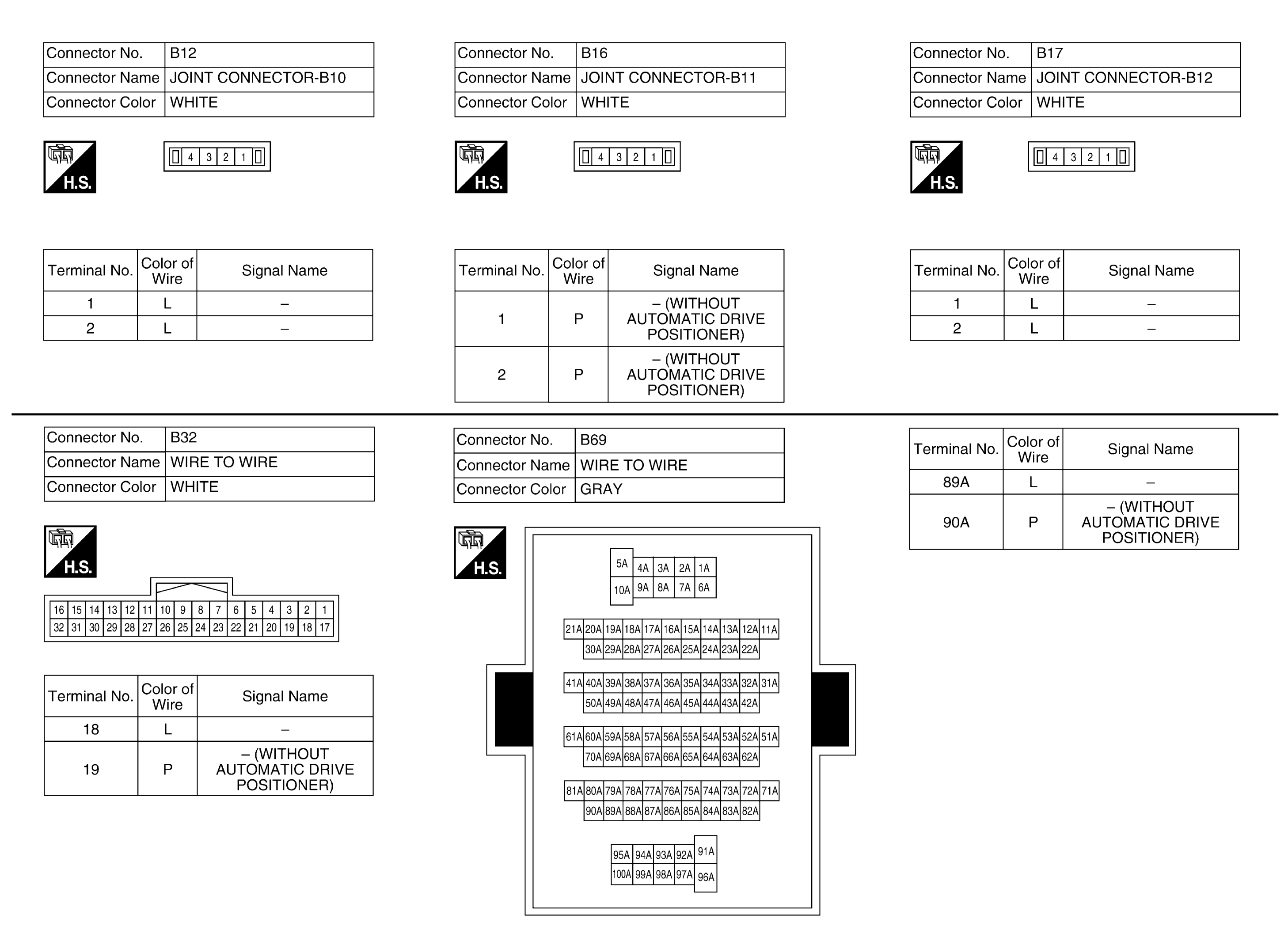

Fig 6: Power Distribution System Connector End Views (6 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

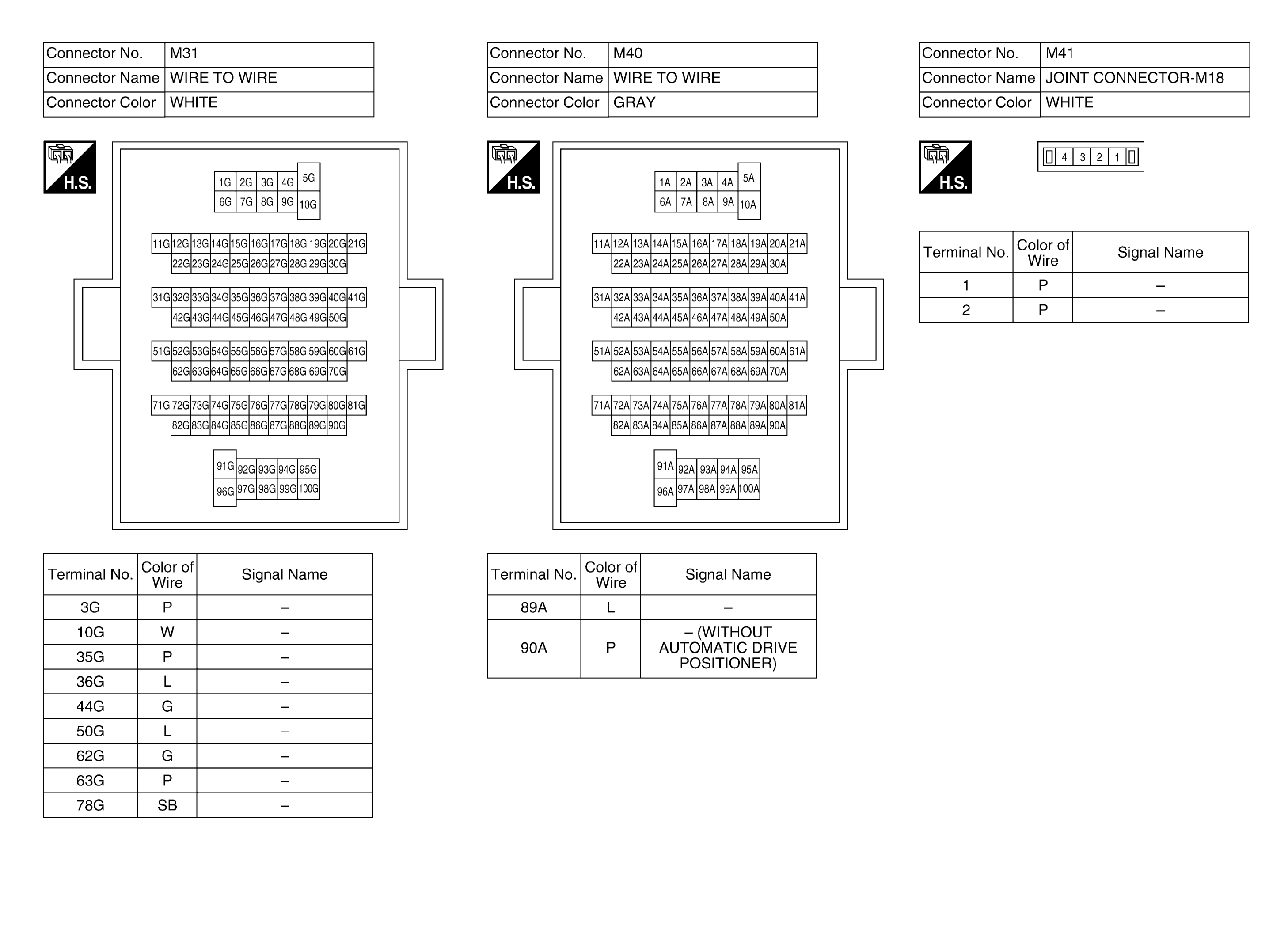

Fig 7: Power Distribution System Connector End Views (7 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

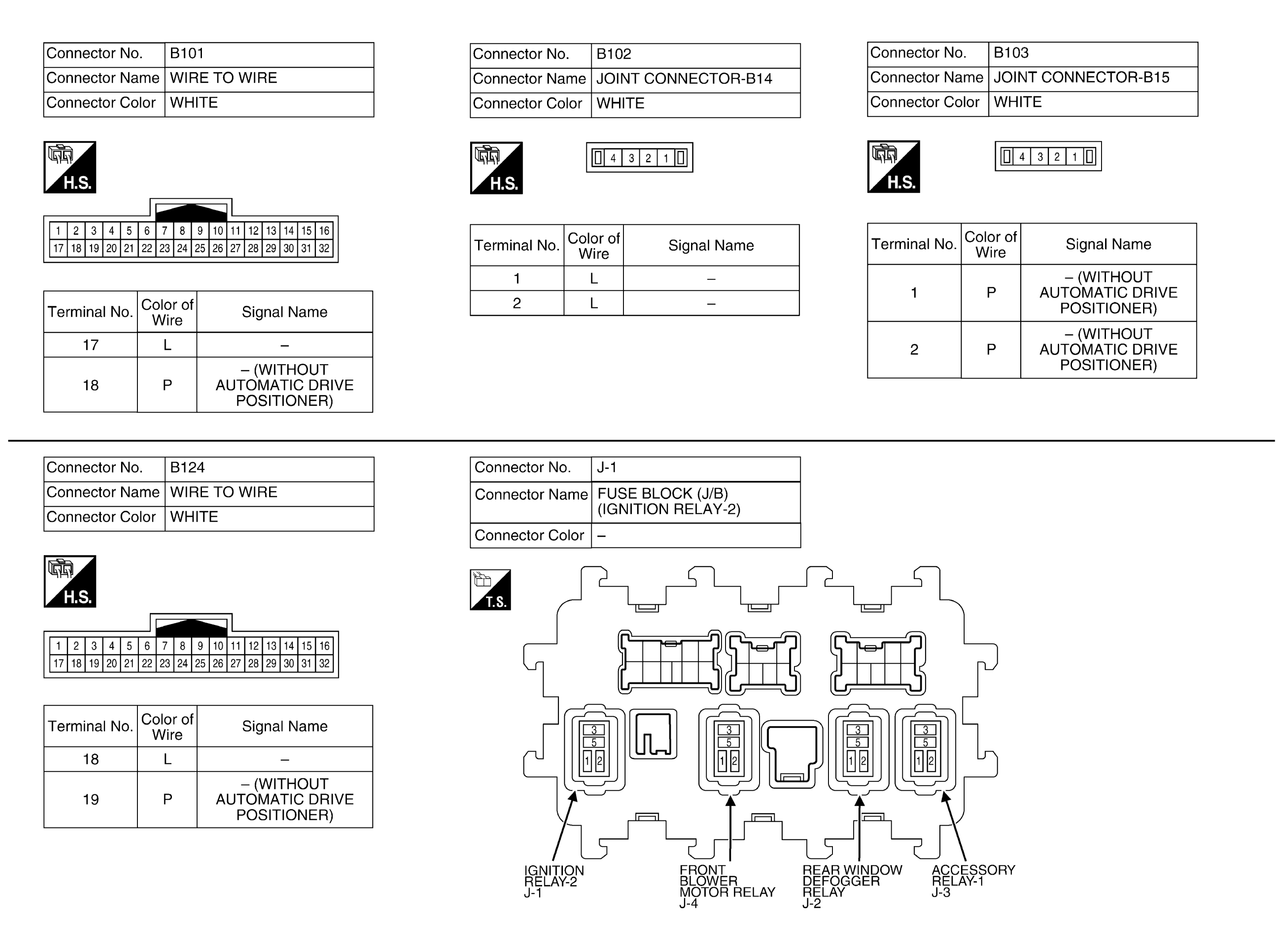

Fig 8: Power Distribution System Connector End Views (8 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Power Distribution System Connector End Views (9 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Power Distribution System Connector End Views (10 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.
