Section 120 (Power Control System (Power Distribution System) (Hybrid))
>>
Removal And Installation
>>
Push Button Ignition Switch
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2014 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

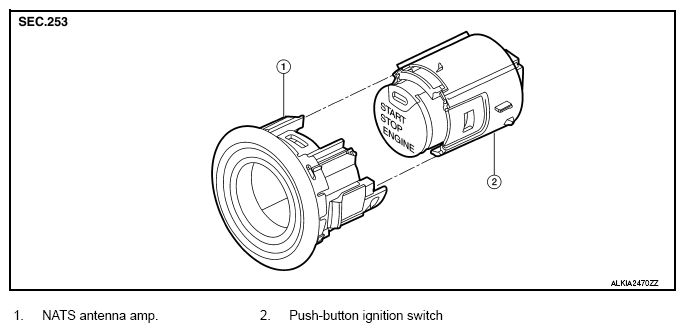

Fig 1: Exploded View Of Push Button Ignition Switch
Courtesy of NISSAN NORTH AMERICA, INC.
