Exploded View
Exploded View

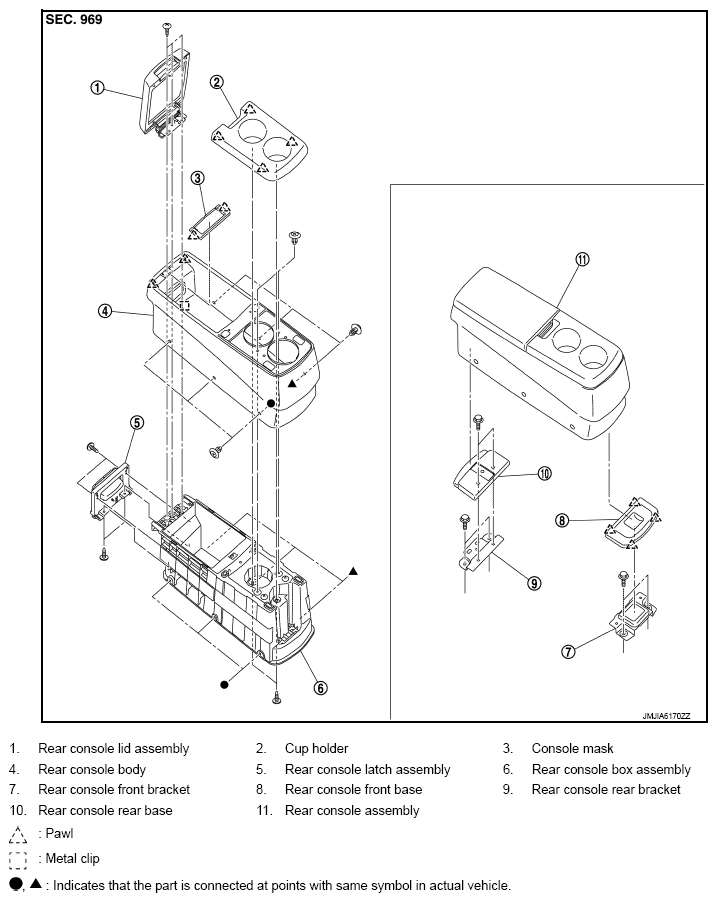

Fig 1: Exploded View Of Rear Console Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
