Component Parts Location

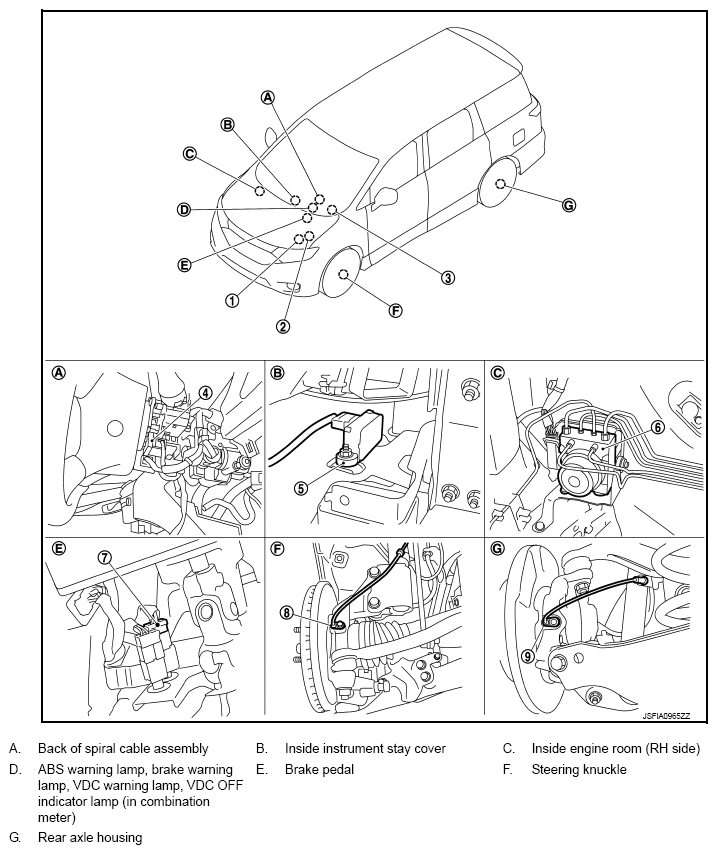

Fig 1: Brake Control System Component Parts Location
G09583551Courtesy of NISSAN NORTH AMERICA, INC.
No. Components Function
1. TCM Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
  • Shift position signal
  • Current gear position signal
  • P range signal
  • R range signal
  • N range signal
2. ECM Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
  • Accelerator pedal position signal
  • Engine speed signal

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication.
  • Target throttle position signal
3. VDC OFF switch "VDC OFF SWITCH "
4. Steering angle sensor "STEERING ANGLE SENSOR "
5. Yaw rate/side G sensor "YAW RATE/SIDE G SENSOR "
6. ABS actuator and electric unit (control unit) "ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) "
7. Stop lamp switch "STOP LAMP SWITCH "
8. Front wheel sensor "WHEEL SENSOR AND SENSOR ROTOR "
9. Rear wheel sensor
