Component Parts Location

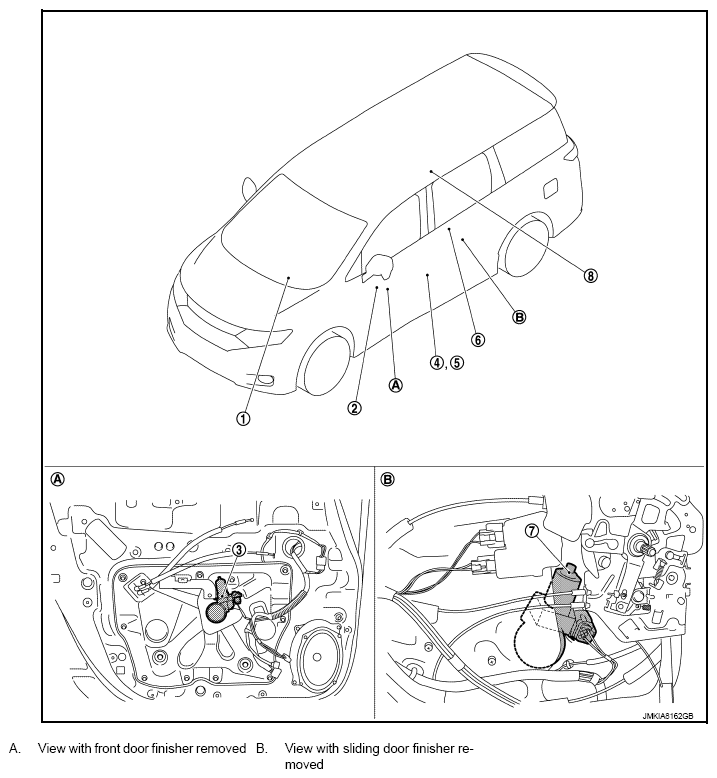

Fig 1: Power Window Control System Component Parts Location
G09581127Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
1. BCM
  • Supplies power supply to power window switch.
  • Controls retained power.
  • Receives key ID signal from remote keyless entry receiver.

Refer to "BODY CONTROL SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
2. Power window main switch Refer to "POWER WINDOW MAIN SWITCH ".
3. Front power window motor (driver side) Refer to "FRONT POWER WINDOW MOTOR (DRIVER SIDE) ".
4. Front door switch (driver side) Detects door open/close condition and transmits to BCM. Refer to "FRONT DOOR SWITCH ".
5. Front door lock assembly (driver side) (key cylinder switch) Transmits operation condition of key cylinder switch to power window main switch. Refer to "FRONT DOOR LOCK ASSEMBLY (DRIVER SIDE) ".
6. Sliding door power window switch LH Refer to "SLIDING DOOR POWER WINDOW SWITCH ".
7. Sliding door power window motor LH Refer to "SLIDING DOOR POWER WINDOW MOTOR ".
8. Remote keyless entry receiver Receives key ID signal from the Intelligent Key, and then transmits to BCM. Refer to "DOOR LOCK SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
