Component Parts Location

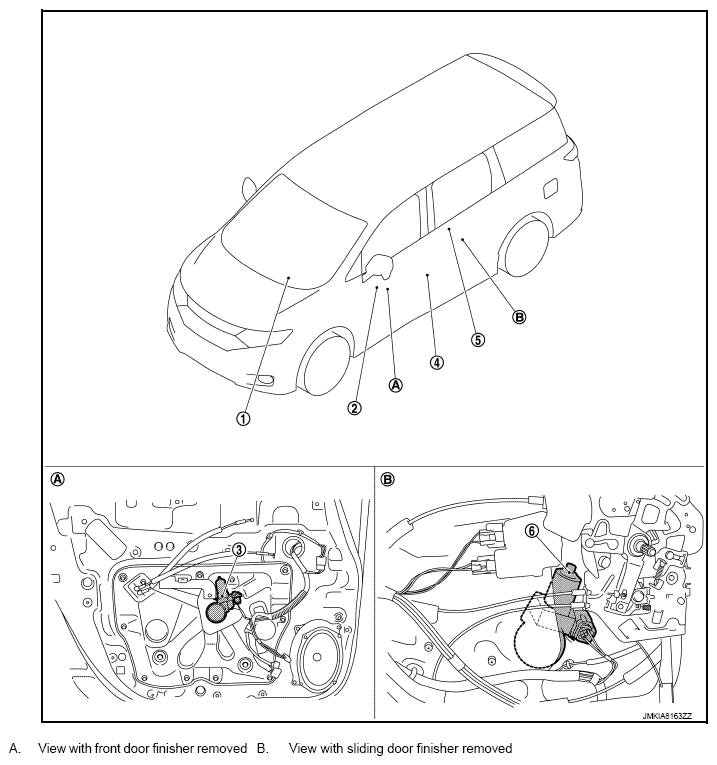

Fig 1: Power Window Control System Components Location
G09581155Courtesy of NISSAN NORTH AMERICA, INC.
No. Component parts Description
1. BCM
  • Supplies power supply to power window switch.
  • Controls retained power.

Refer to "BODY CONTROL SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
2. Power window main switch Refer to "POWER WINDOW MAIN SWITCH ".
3. Front power window motor (driver side) Refer to "FRONT POWER WINDOW MOTOR (DRIVER SIDE) ".
4. Front door switch (driver side) Detects door open/close condition and transmits to BCM. Refer to "FRONT DOOR SWITCH ".
5. Sliding door power window switch LH Refer to "SLIDING DOOR POWER WINDOW SWITCH ".
6. Sliding door power window motor LH Refer to "SLIDING DOOR POWER WINDOW MOTOR ".
