Removal and Installation: Removal

  1. Remove the power window main switch finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove power window main switch (1) from power window main switch finisher (2) using a remover tool (A).

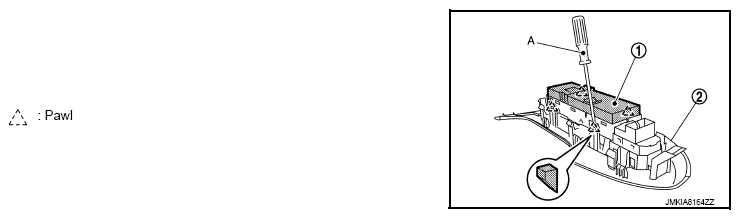

    Fig 1: Removing Power Window Main Switch From Finisher Using Remover Tool
    G09581170Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: The same procedure is also performed for front power window switch (passenger side).
