Without CONSULT

  1. Remove fuel pump fuse located in IPDM E/R.

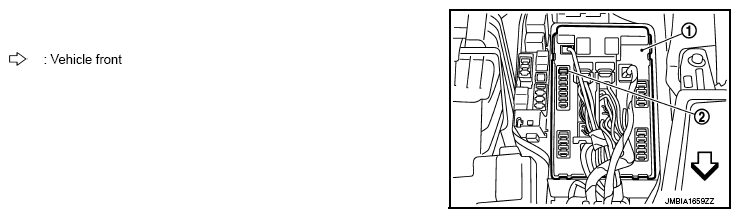

    Fig 1: Identifying IPDM E/R And Fuel Pump Fuse
    G09151766Courtesy of NISSAN NORTH AMERICA, INC.
  2. Start engine.
  3. After engine stalls, crank it 2 or 3 times to release all fuel pressure.
  4. Turn ignition switch OFF.
  5. Reinstall fuel pump fuse after servicing fuel system.
