Data Monitor Mode

Monitored Item

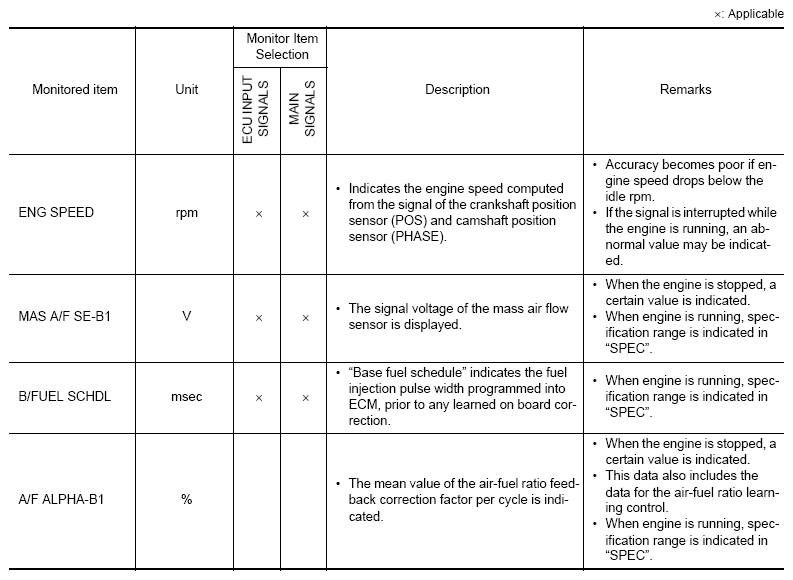

Fig 1: ECM Data Monitor Mode Chart (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

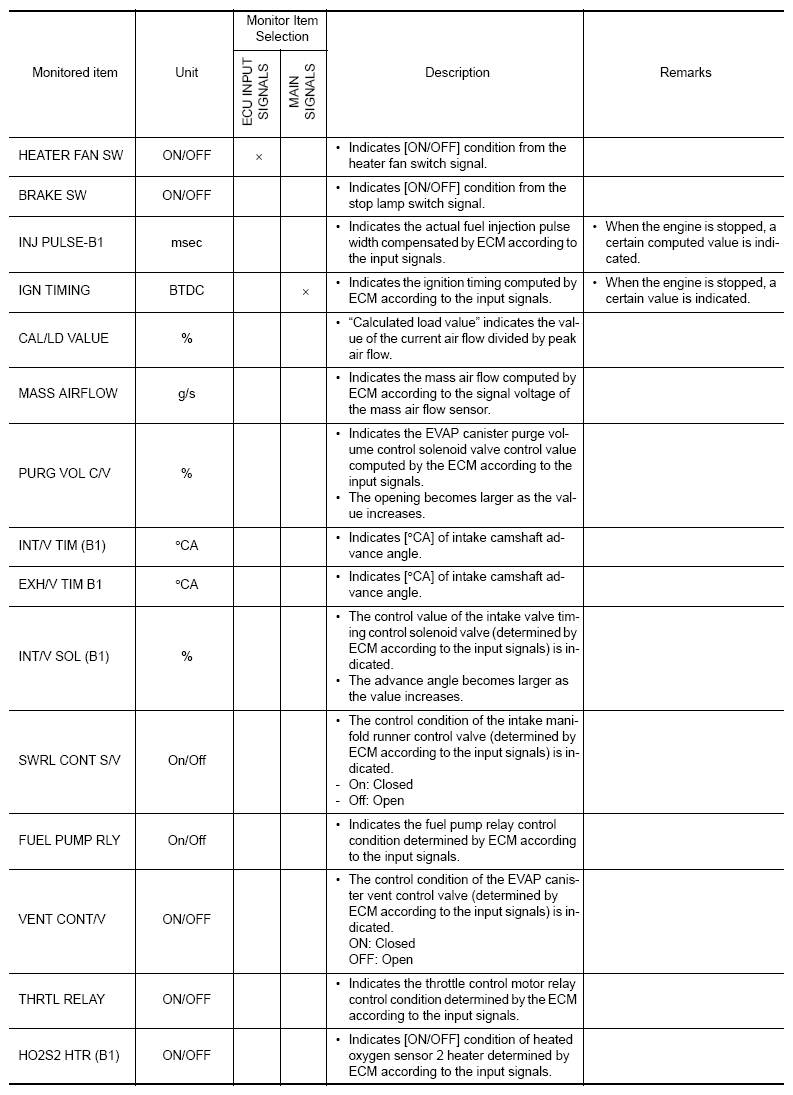

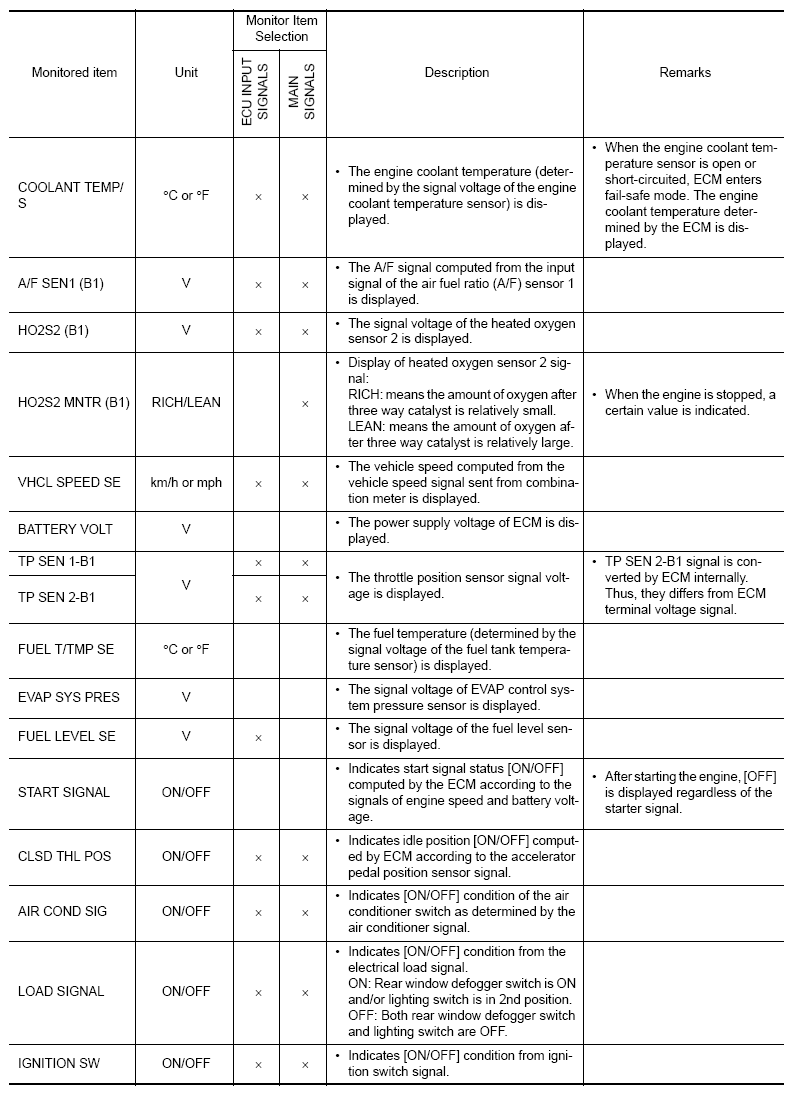

Fig 2: ECM Data Monitor Mode Chart (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

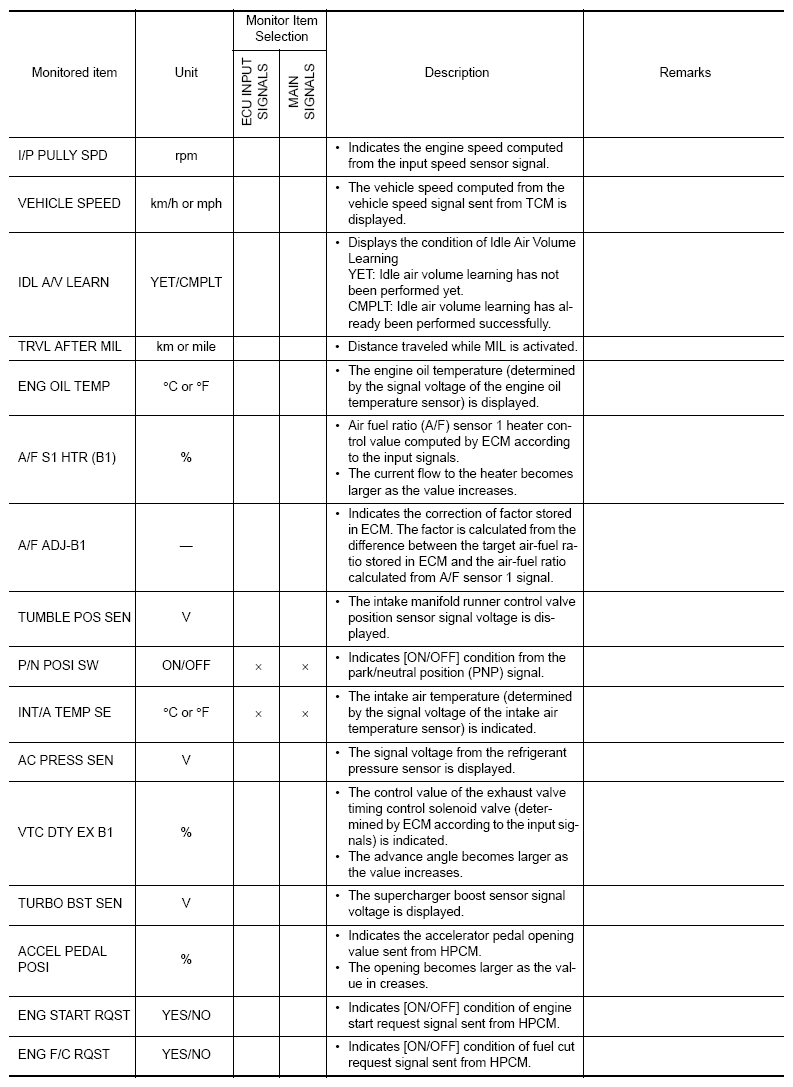

Fig 3: ECM Data Monitor Mode Chart (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: ECM Data Monitor Mode Chart (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

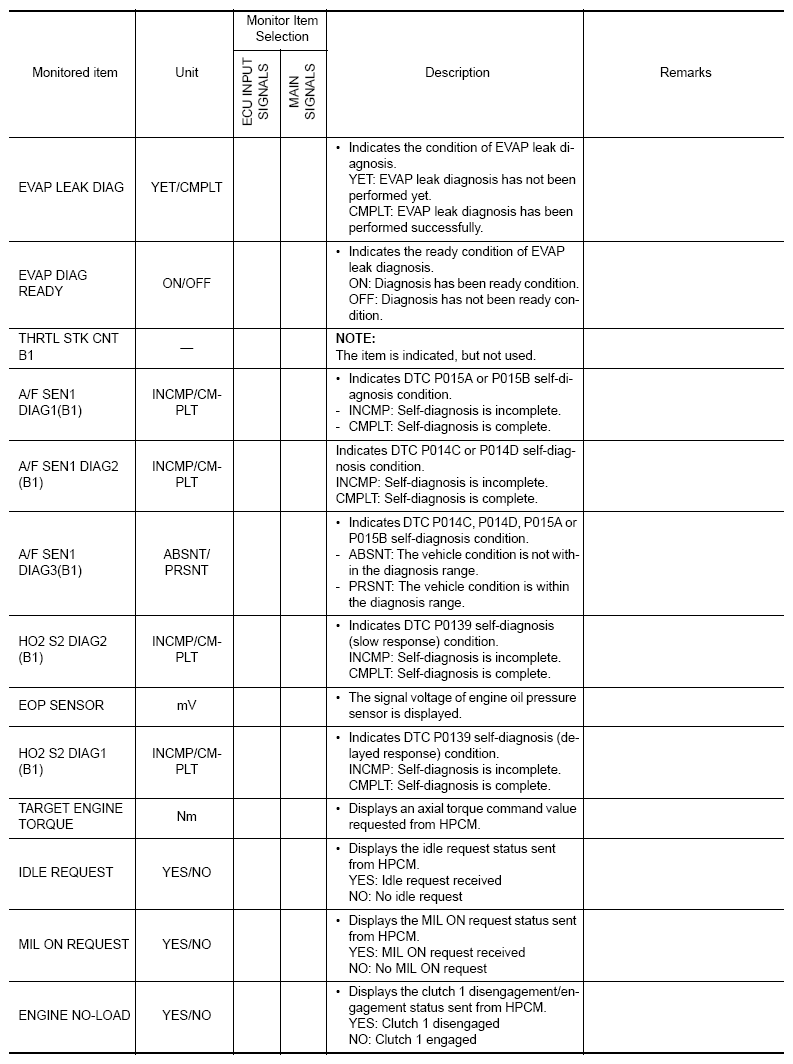

Fig 5: ECM Data Monitor Mode Chart (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

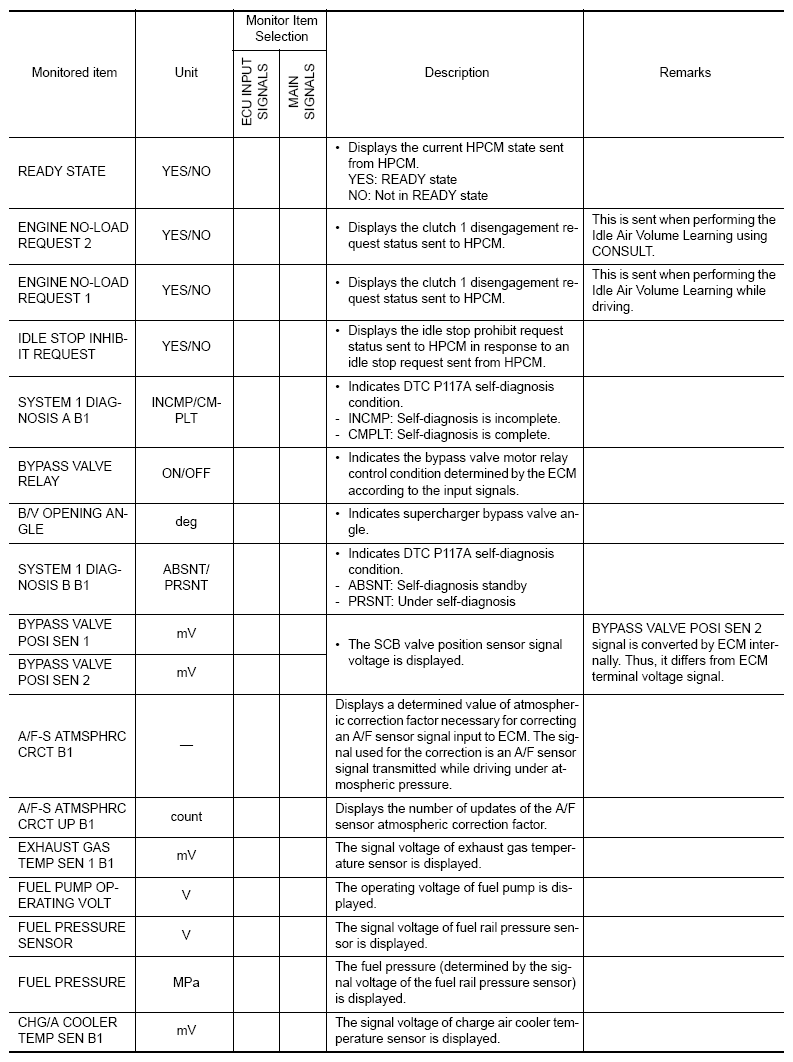

Fig 6: ECM Data Monitor Mode Chart (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

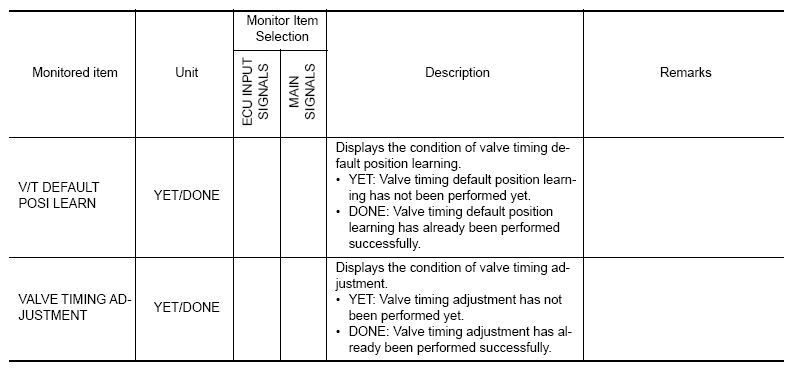

Fig 7: ECM Data Monitor Mode Chart (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
