System Description
>>
Component Parts
>>
Component Parts Location
Component Parts Location

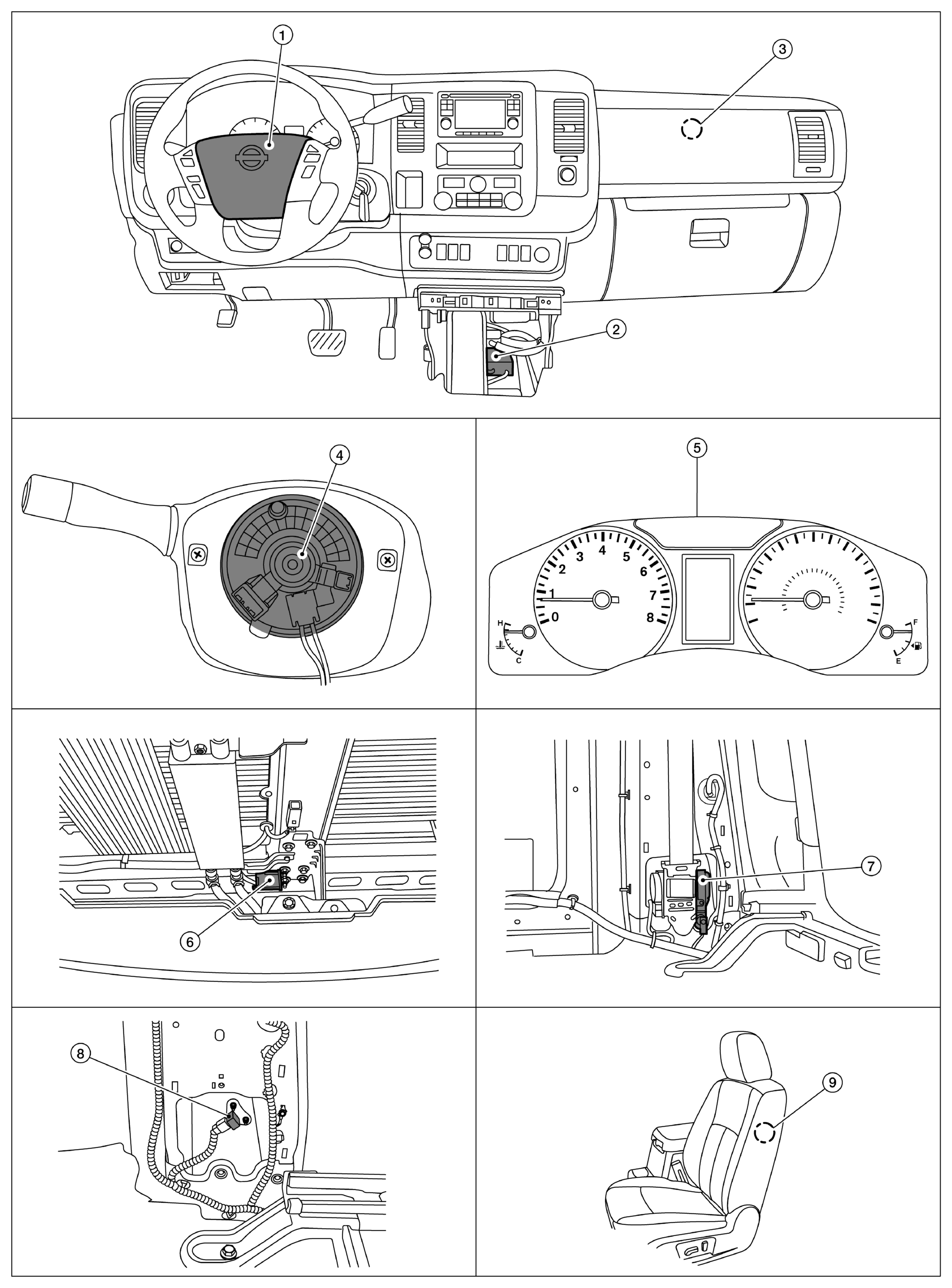

Fig 1: SRS Airbag Control System Components Location (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

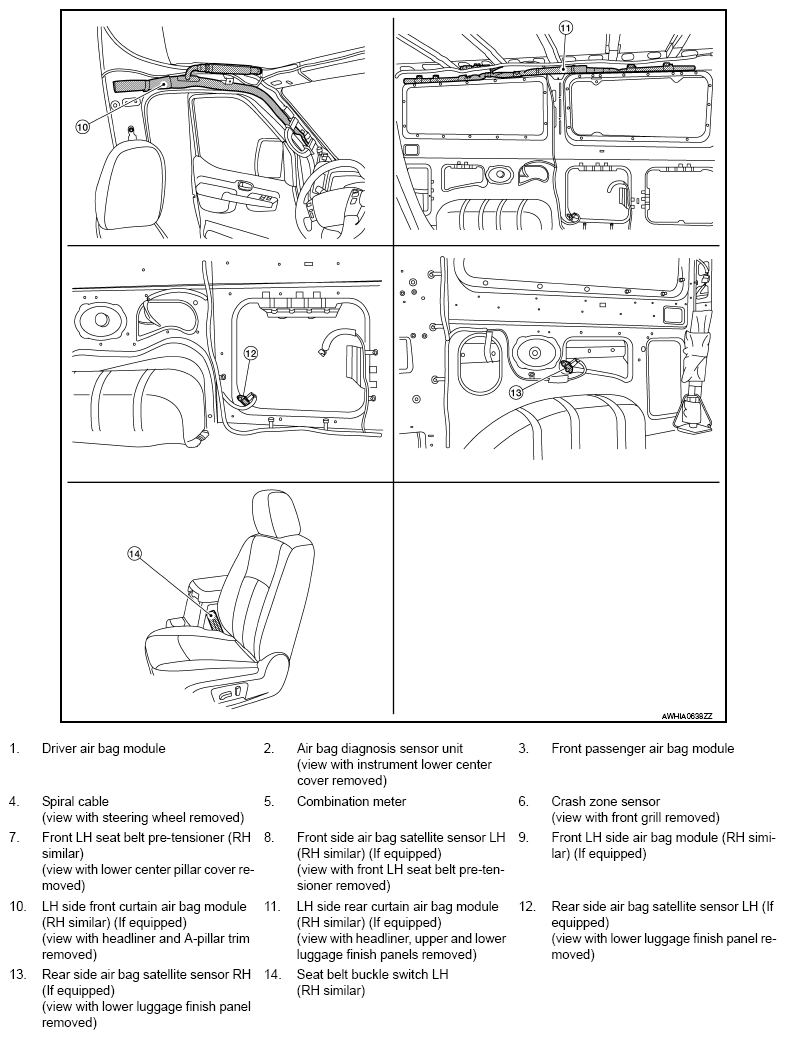

Fig 2: SRS Airbag Control System Components Location (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
