Engine Control System (Introduction) (VK56DE)
>>
System Description
>>
System
>>
Air Conditioning Cut Control
>>
AIR CONDITIONING CUT CONTROL: System Description
>>
System Diagram
System Diagram

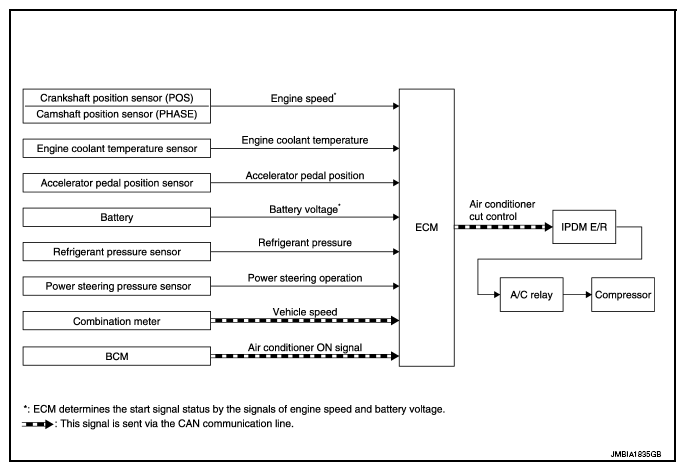

Fig 1: Air Conditioning Cut Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
