Connector End Views

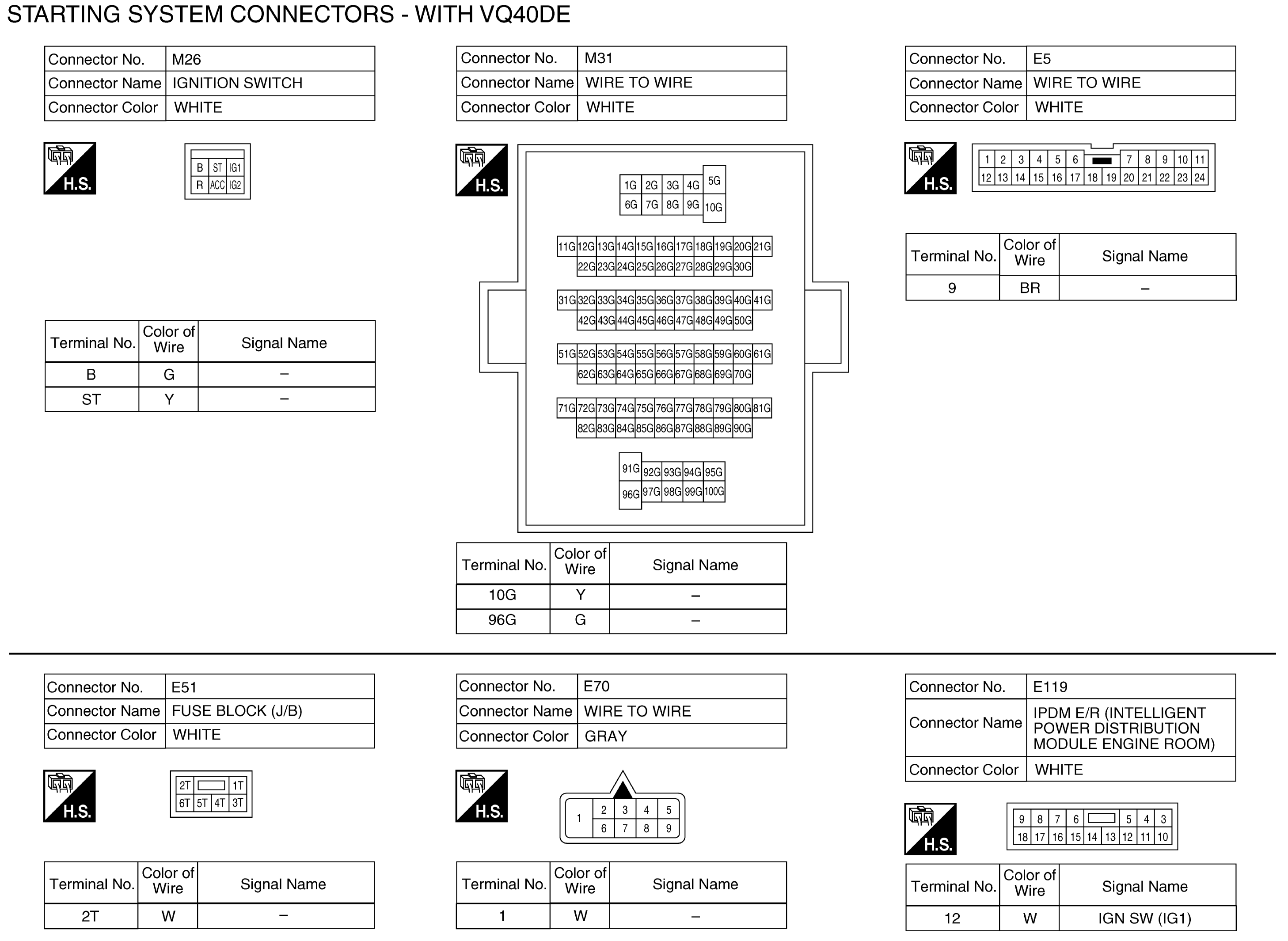

Fig 1: Starting System - With VQ40DE Connector End Views (1 Of 3)
G09442924Courtesy of NISSAN NORTH AMERICA, INC.

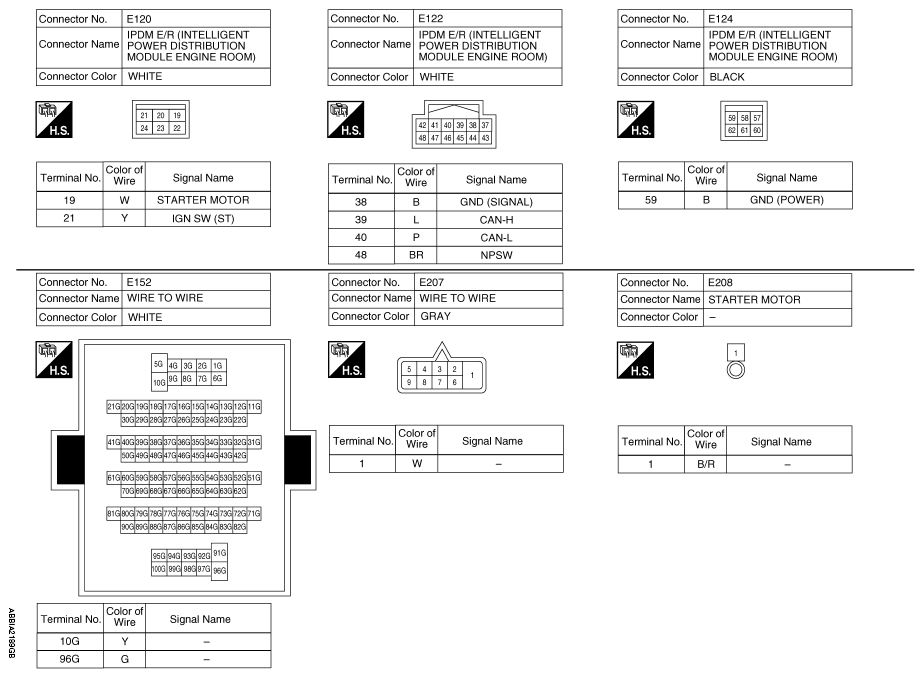

Fig 2: Starting System - With VQ40DE Connector End Views (2 Of 3)
G09442925Courtesy of NISSAN NORTH AMERICA, INC.

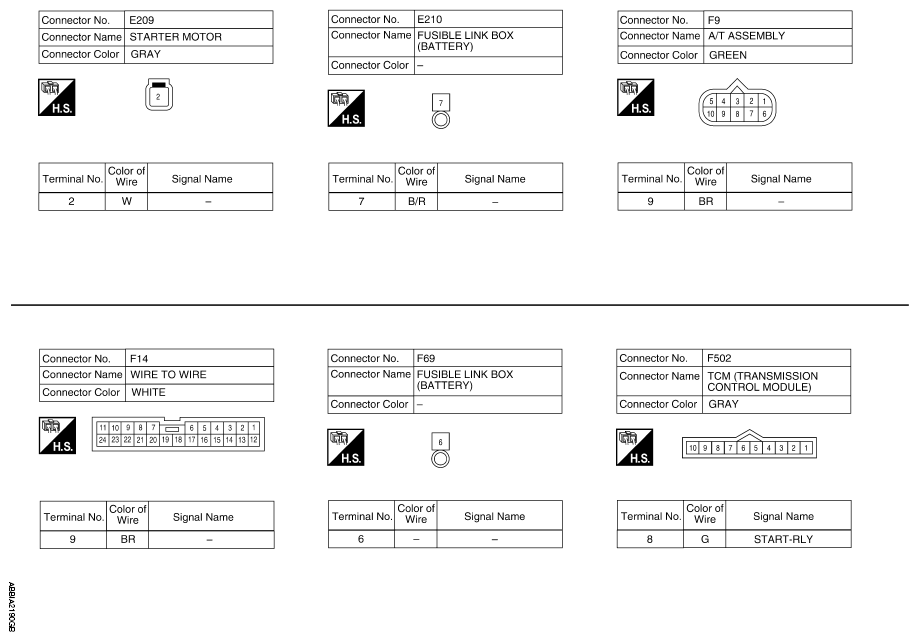

Fig 3: Starting System - With VQ40DE Connector End Views (3 Of 3)
G09442926Courtesy of NISSAN NORTH AMERICA, INC.

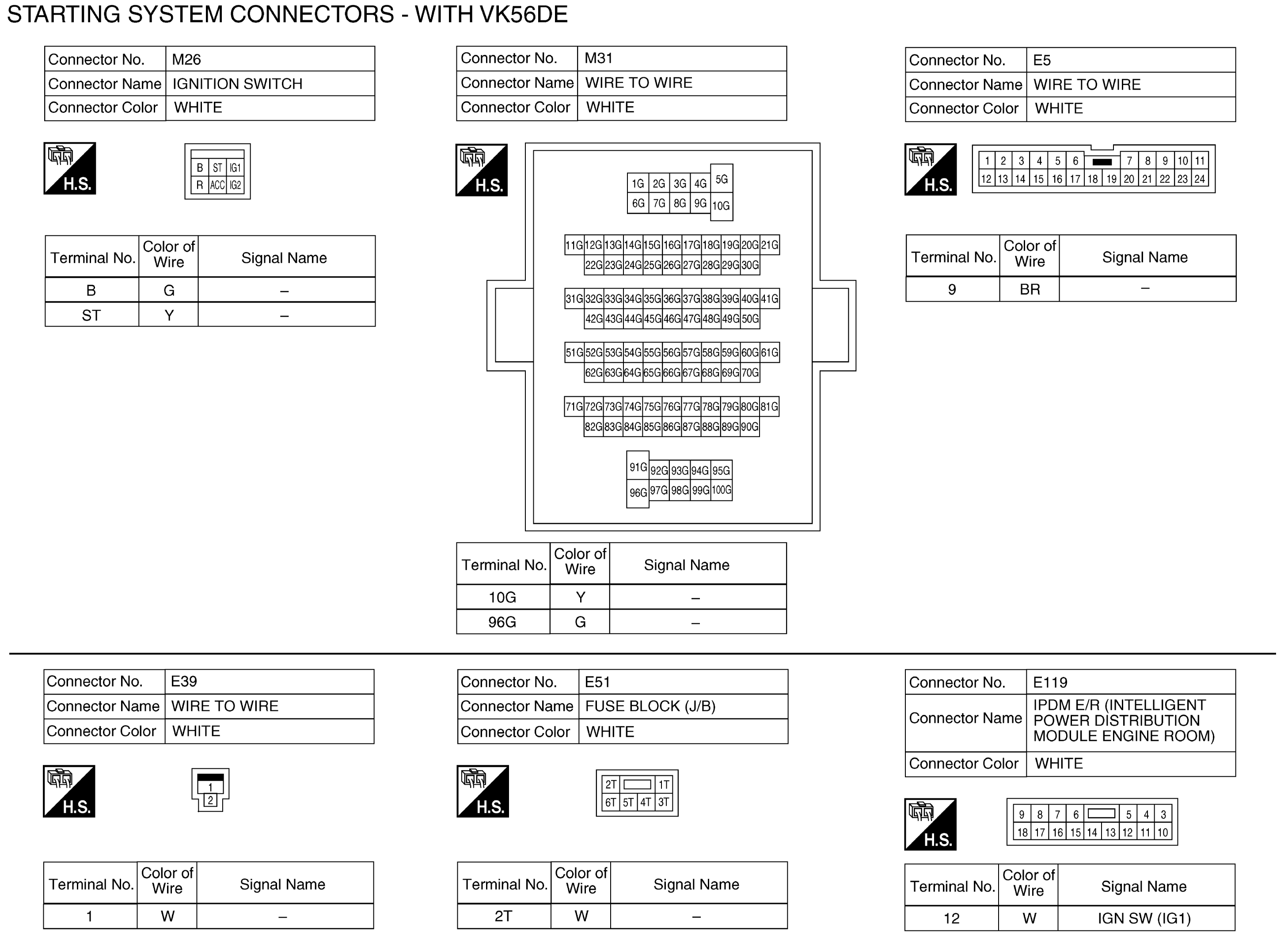

Fig 1: Starting System - With VK56DE Connector End Views (1 Of 3)
G09442928Courtesy of NISSAN NORTH AMERICA, INC.

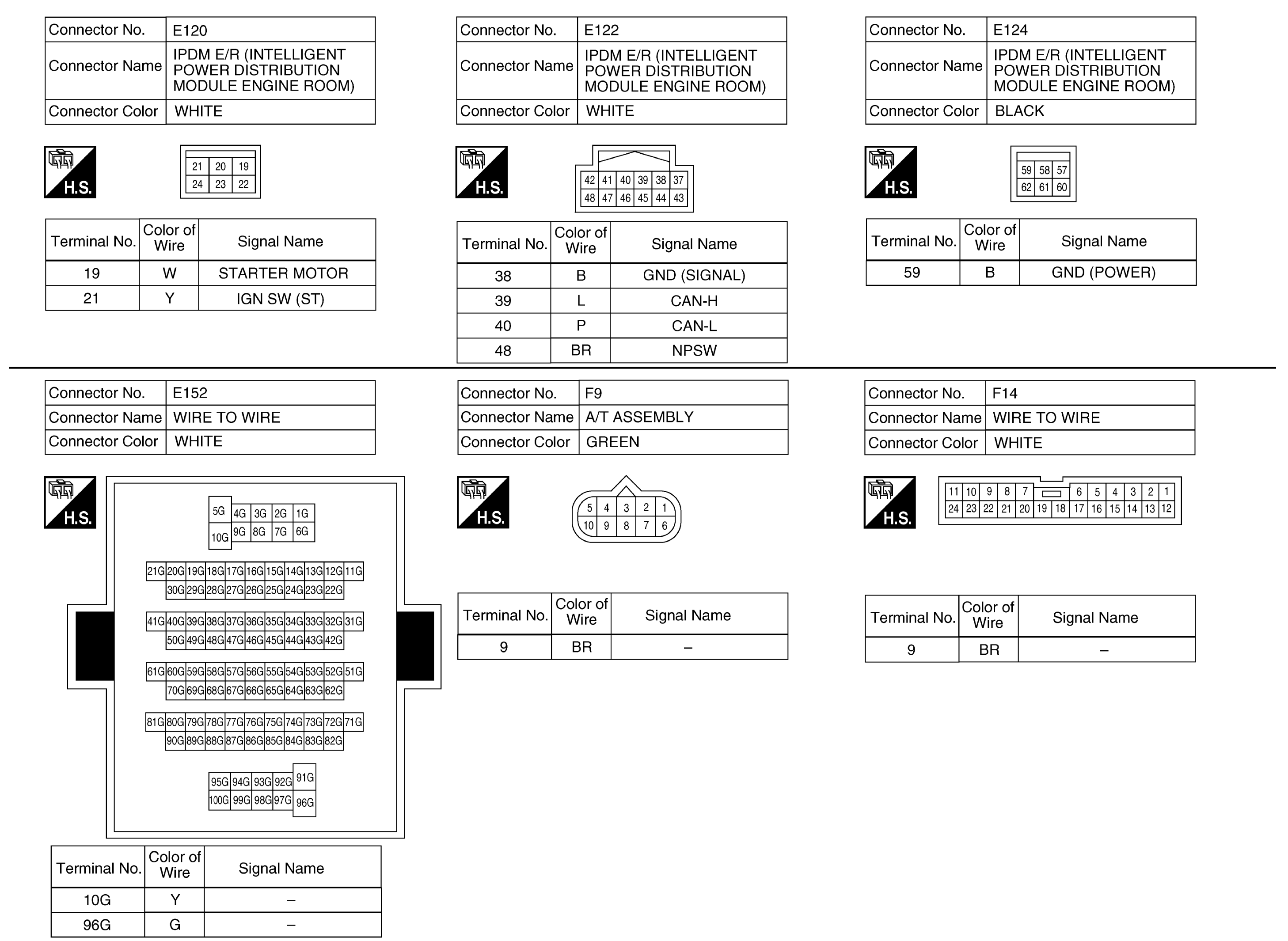

Fig 2: Starting System - With VK56DE Connector End Views (2 Of 3)
G09442929Courtesy of NISSAN NORTH AMERICA, INC.

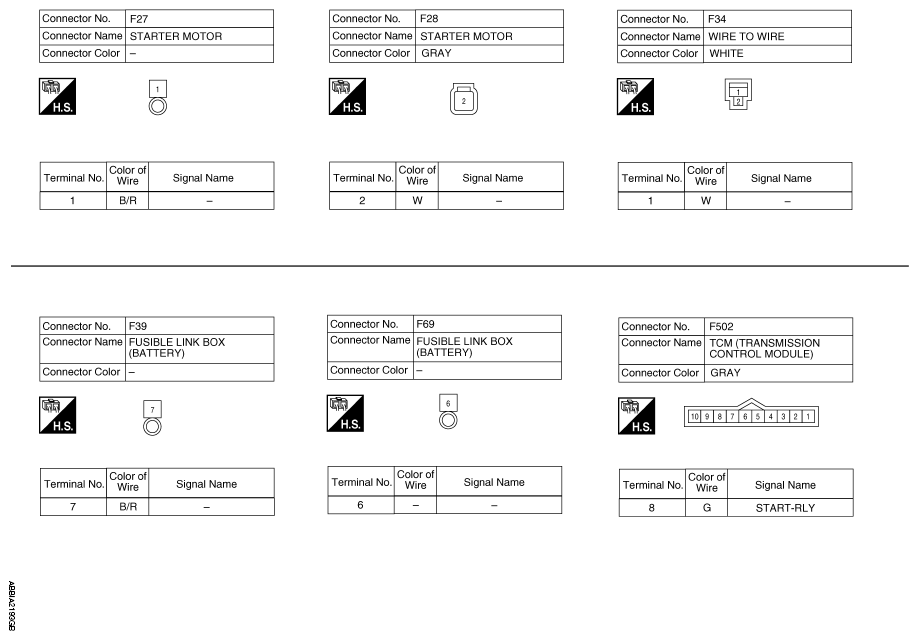

Fig 3: Starting System - With VK56DE Connector End Views (3 Of 3)
G09442930Courtesy of NISSAN NORTH AMERICA, INC.
