Exploded View

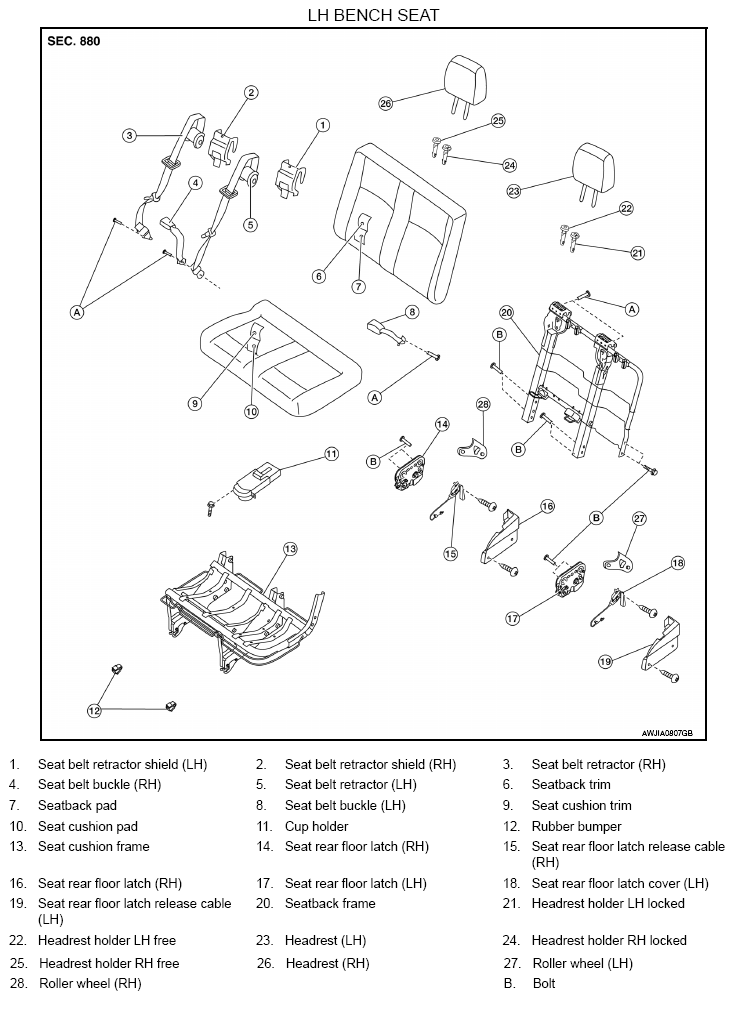

Fig 1: Exploded View Of Fourth Row Seats (LH Bench Seat)
G09444277Courtesy of NISSAN NORTH AMERICA, INC.

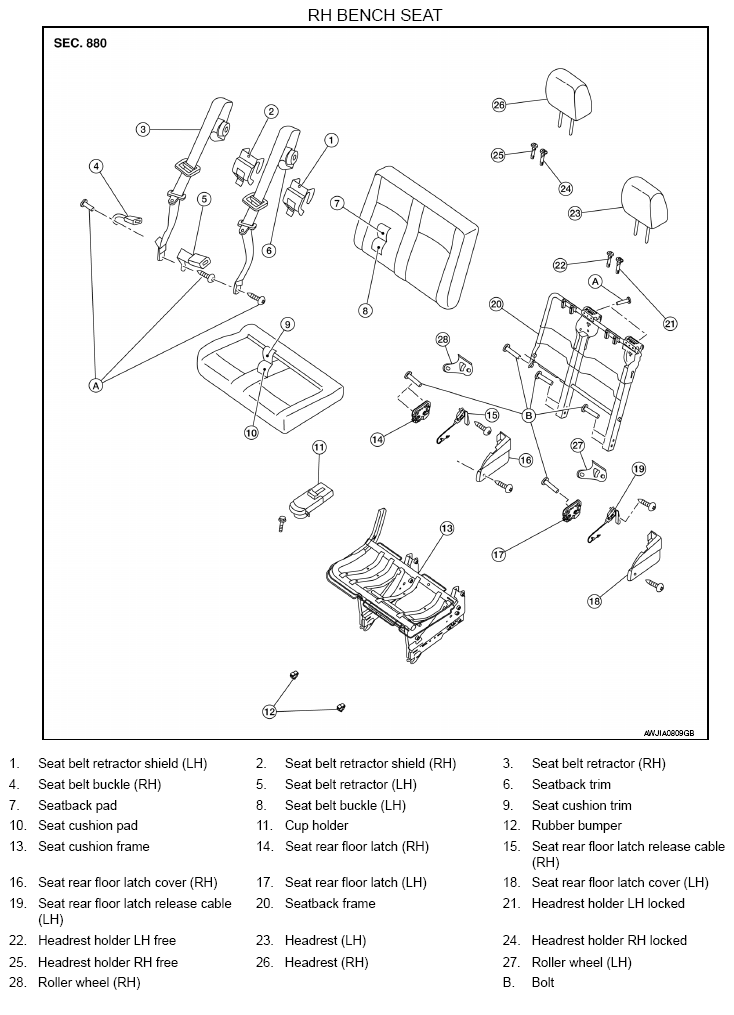

Fig 2: Exploded View Of Fourth Row Seats (RH Bench Seat)
G09444278Courtesy of NISSAN NORTH AMERICA, INC.
