Connector End Views

Fig 1: Vehicle Security System Connector End Views (1 Of 9)
G08160439Courtesy of NISSAN NORTH AMERICA, INC.

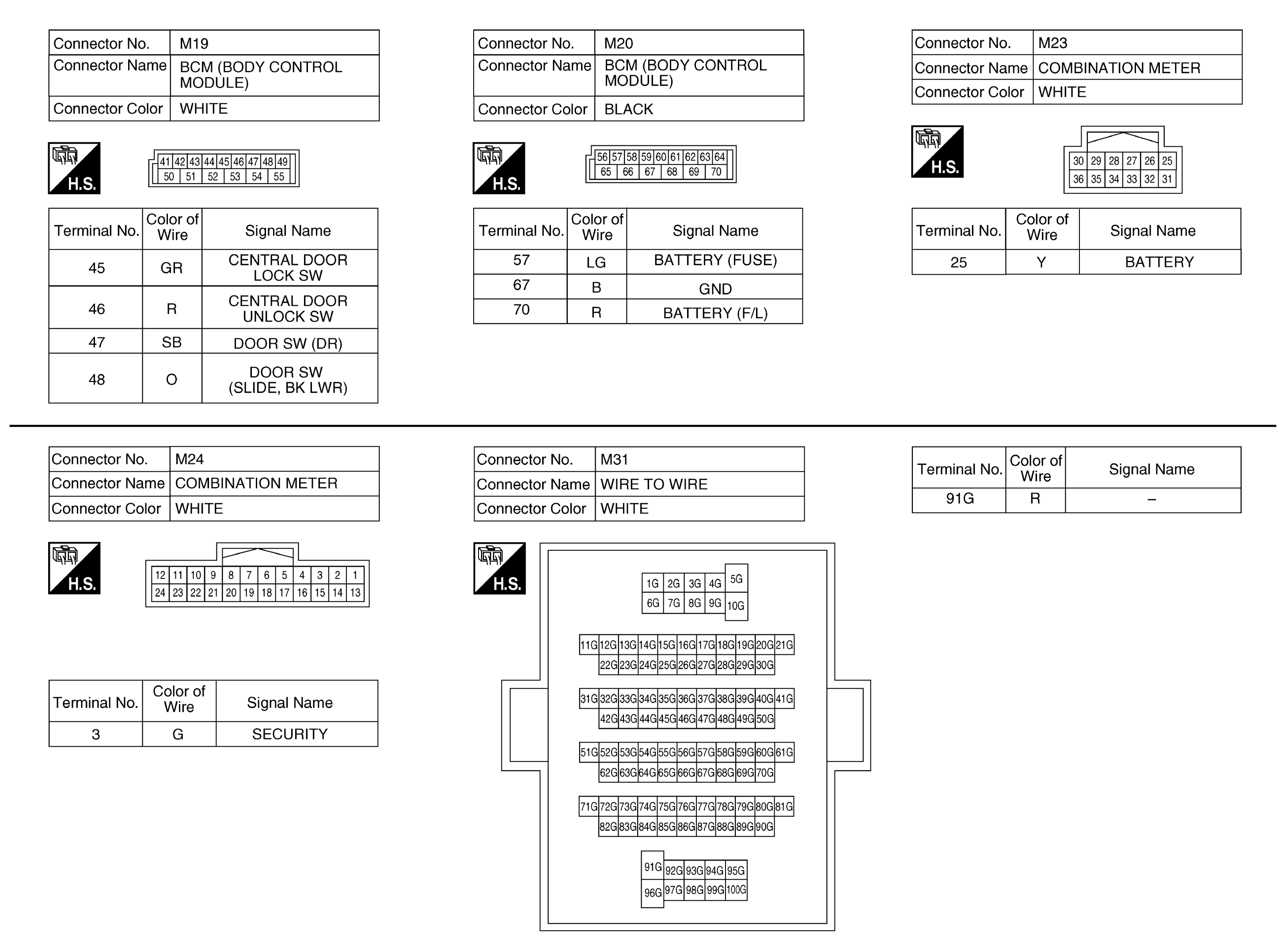

Fig 2: Vehicle Security System Connector End Views (2 Of 9)
G09444495Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Vehicle Security System Connector End Views (3 Of 9)
G08160441Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Vehicle Security System Connector End Views (4 Of 9)
G08160442Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Vehicle Security System Connector End Views (5 Of 9)
G08160443Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: Vehicle Security System Connector End Views (6 Of 9)
G08160444Courtesy of NISSAN NORTH AMERICA, INC.

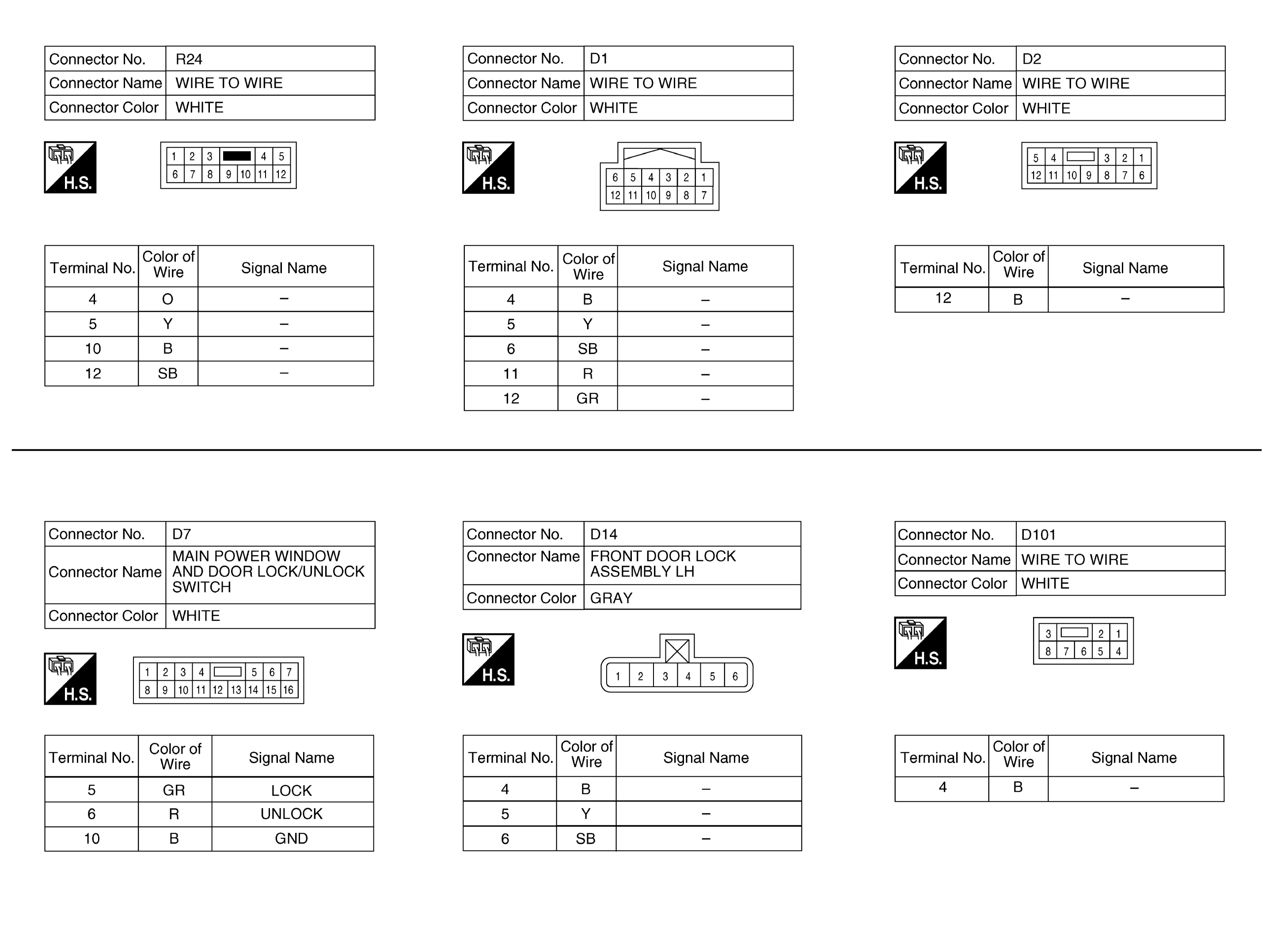

Fig 7: Vehicle Security System Connector End Views (7 Of 9)
G09444500Courtesy of NISSAN NORTH AMERICA, INC.
Fig 8: Vehicle Security System Connector End Views (8 Of 9)
G08160446Courtesy of NISSAN NORTH AMERICA, INC.

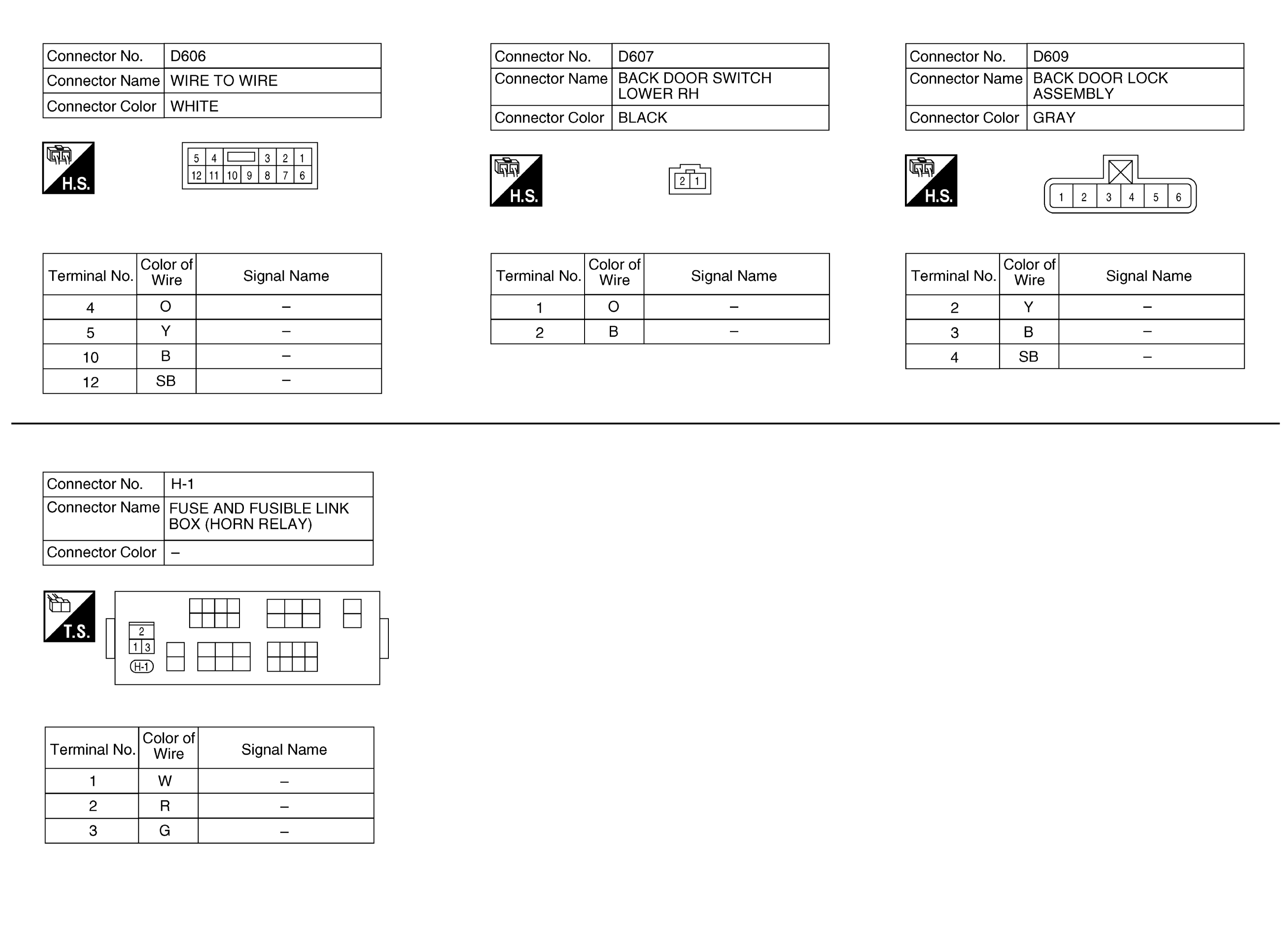

Fig 9: Vehicle Security System Connector End Views (9 Of 9)
G09444502Courtesy of NISSAN NORTH AMERICA, INC.
