Exploded View

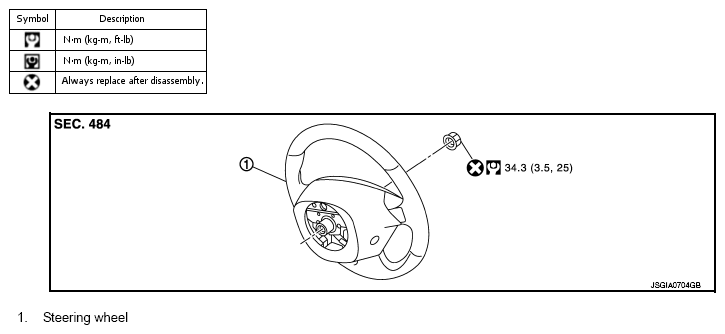

Fig 1: Steering Wheel And Mounting Nut With Torque Specifications

G09447594

Courtesy of NISSAN NORTH AMERICA, INC.
