Ignition Timing: Inspection

  1. CHECK IGNITION TIMING
    1. Attach timing light to the ignition coil No. 1 harness.
    2. Check ignition timing.

      Specification:  "IGNITION TIMING "

      : INSPECTION END

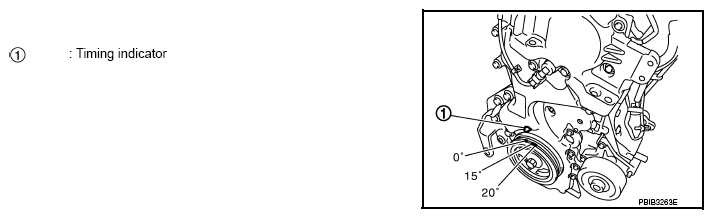

      Fig 1: Identifying Ignition Timing Indicator
      G09447046Courtesy of NISSAN NORTH AMERICA, INC.
