Exploded View

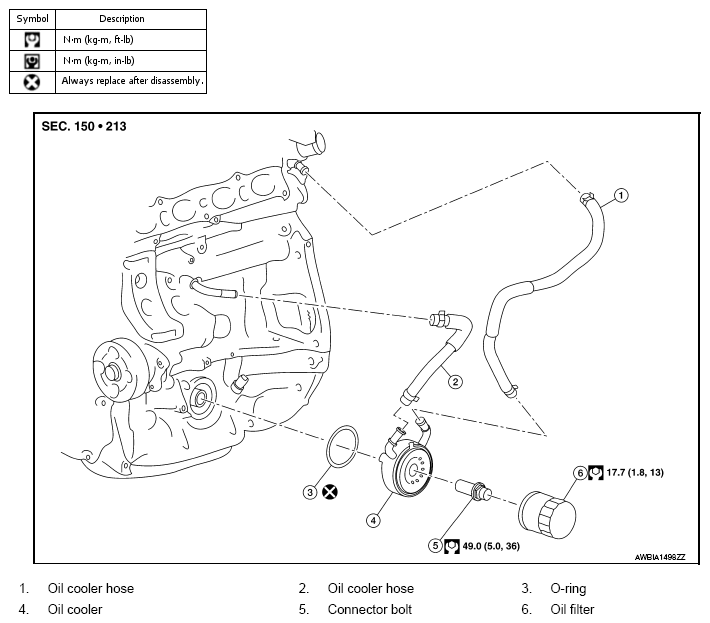

Fig 1: Exploded View Of Oil Cooler With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

WARNING: Make sure engine is cool before performing this operation.

NOTE: When removing components such as hoses, tube/lines, ect., cap or plug openings to prevent fluid from spilling.
