Exploded View - Rear Wheel Sensor
Exploded View - Rear Wheel Sensor

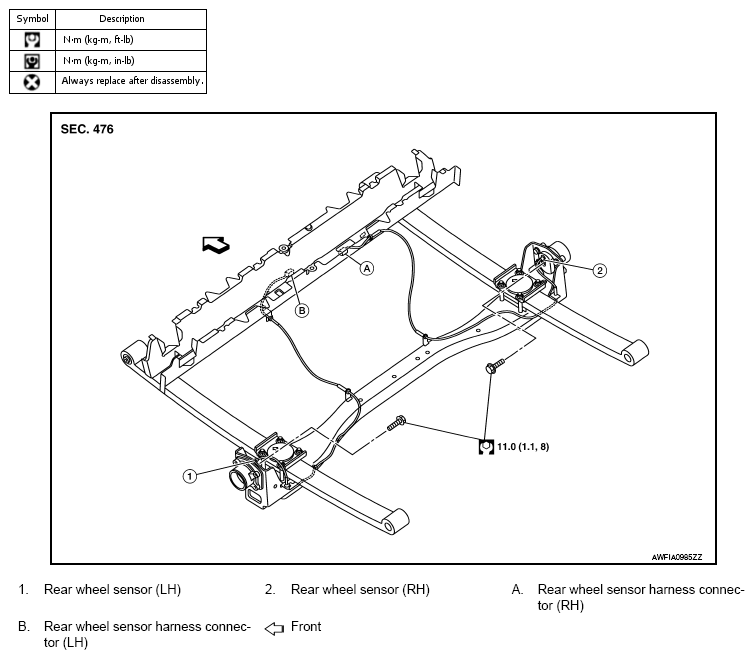

Fig 1: Exploded View Of Rear Wheel Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
