Body & Frame
>>
Windows
>>
Power Window Control System
>>
Wiring Diagram
>>
Power Window System
>>
Connector End View
Connector End View

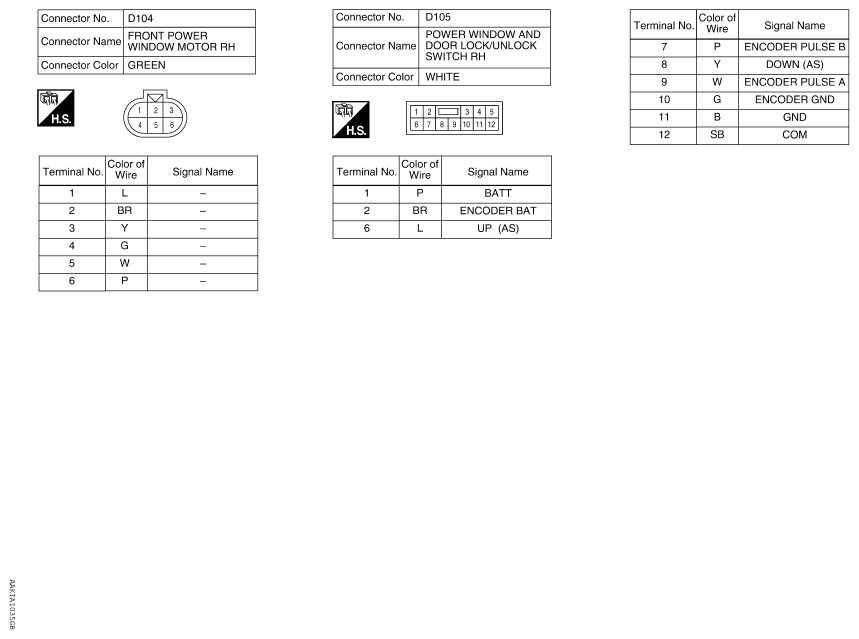

Fig 1: Power Window System Connector End View (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

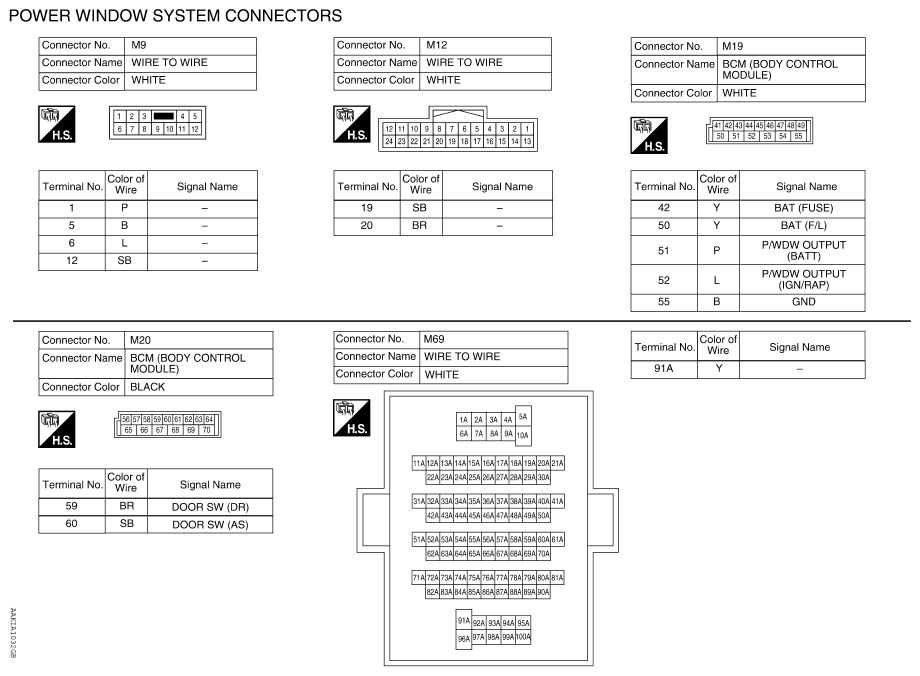

Fig 2: Power Window System Connector End View (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

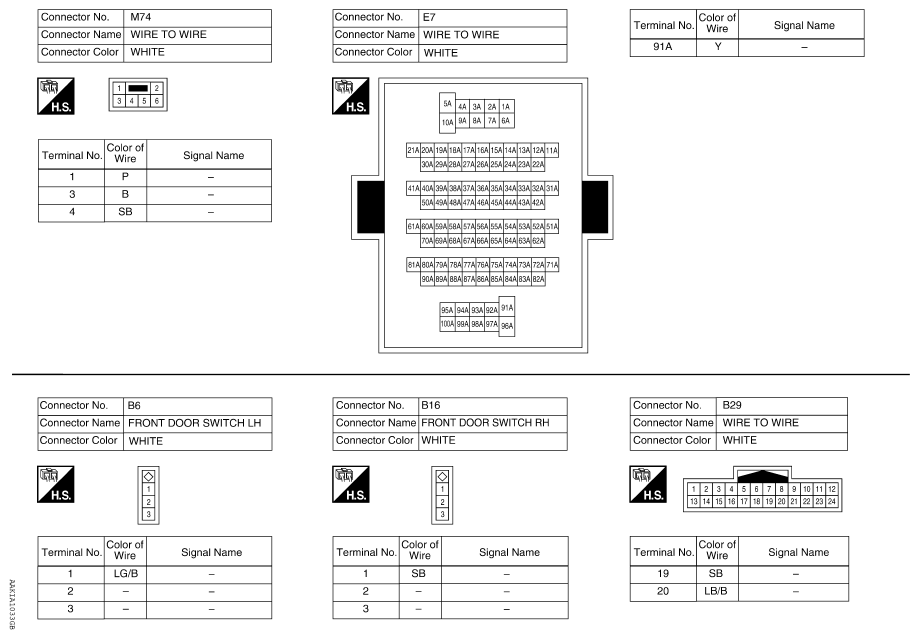

Fig 3: Power Window System Connector End View (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

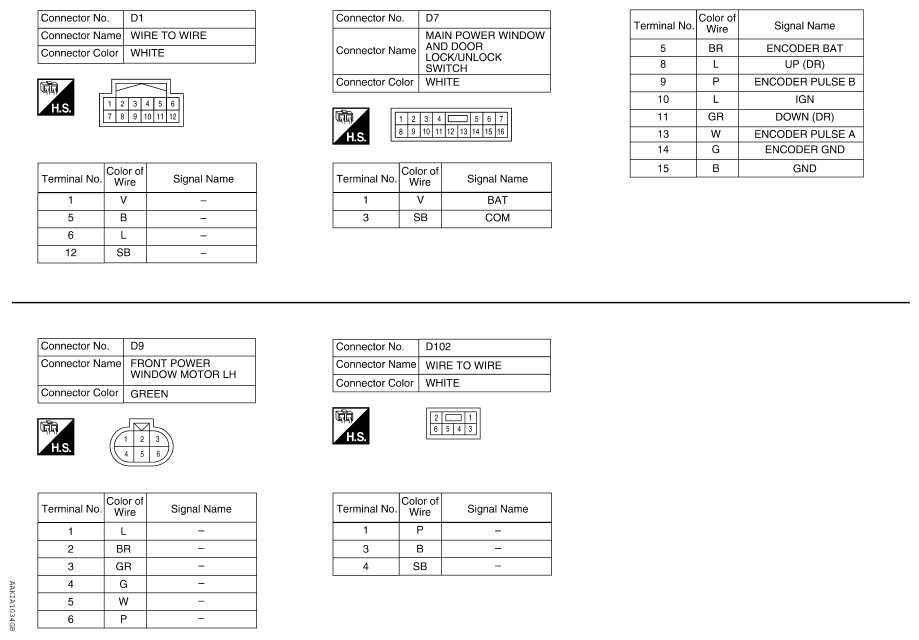

Fig 4: Power Window System Connector End View (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
