ENGINE CONTROL SYSTEM: System Diagram

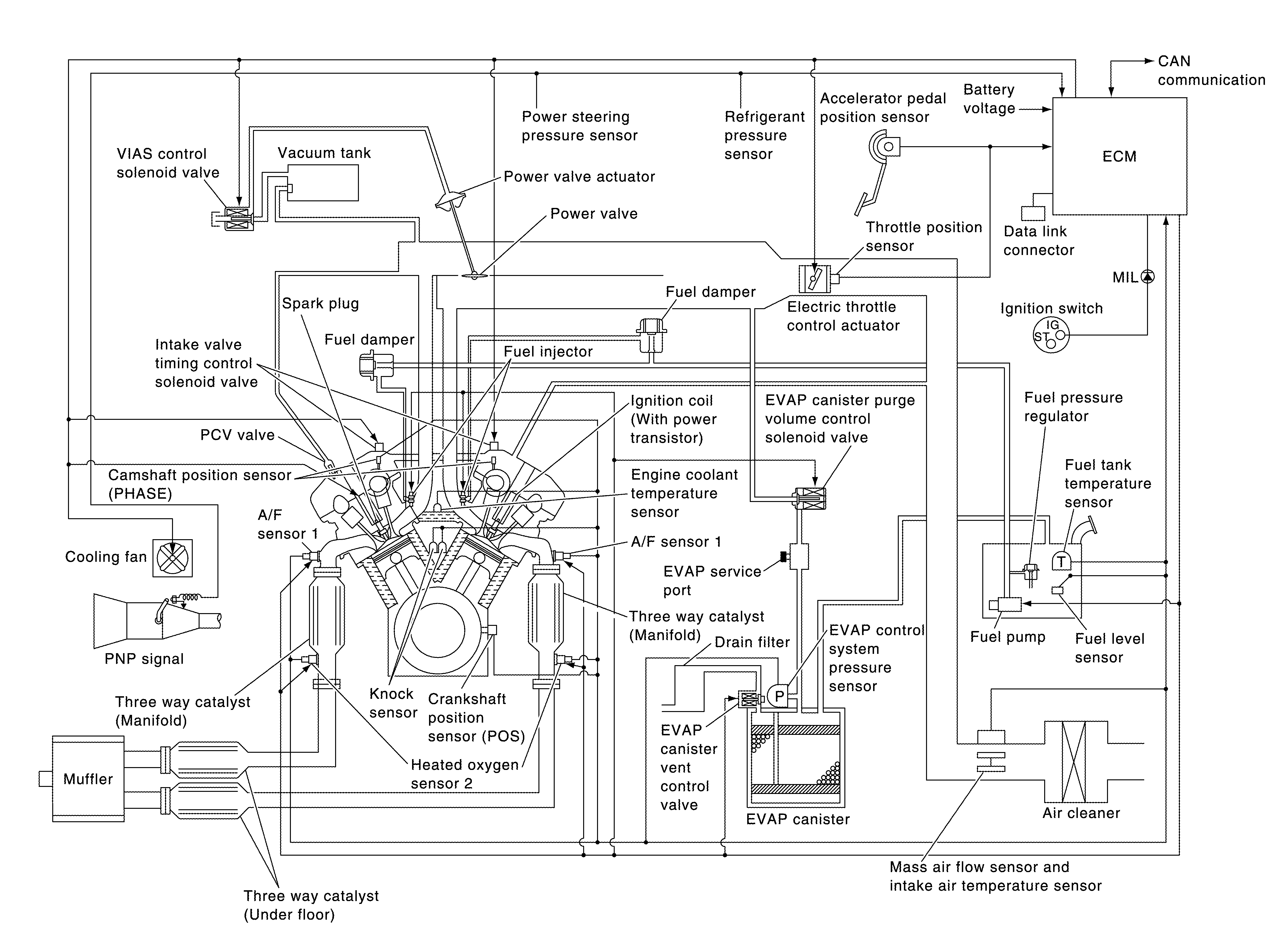

Fig 1: Engine Control - System Diagram

G08163111

Courtesy of NISSAN NORTH AMERICA, INC.
