Power Window System
>>
Connector End Views
Connector End Views

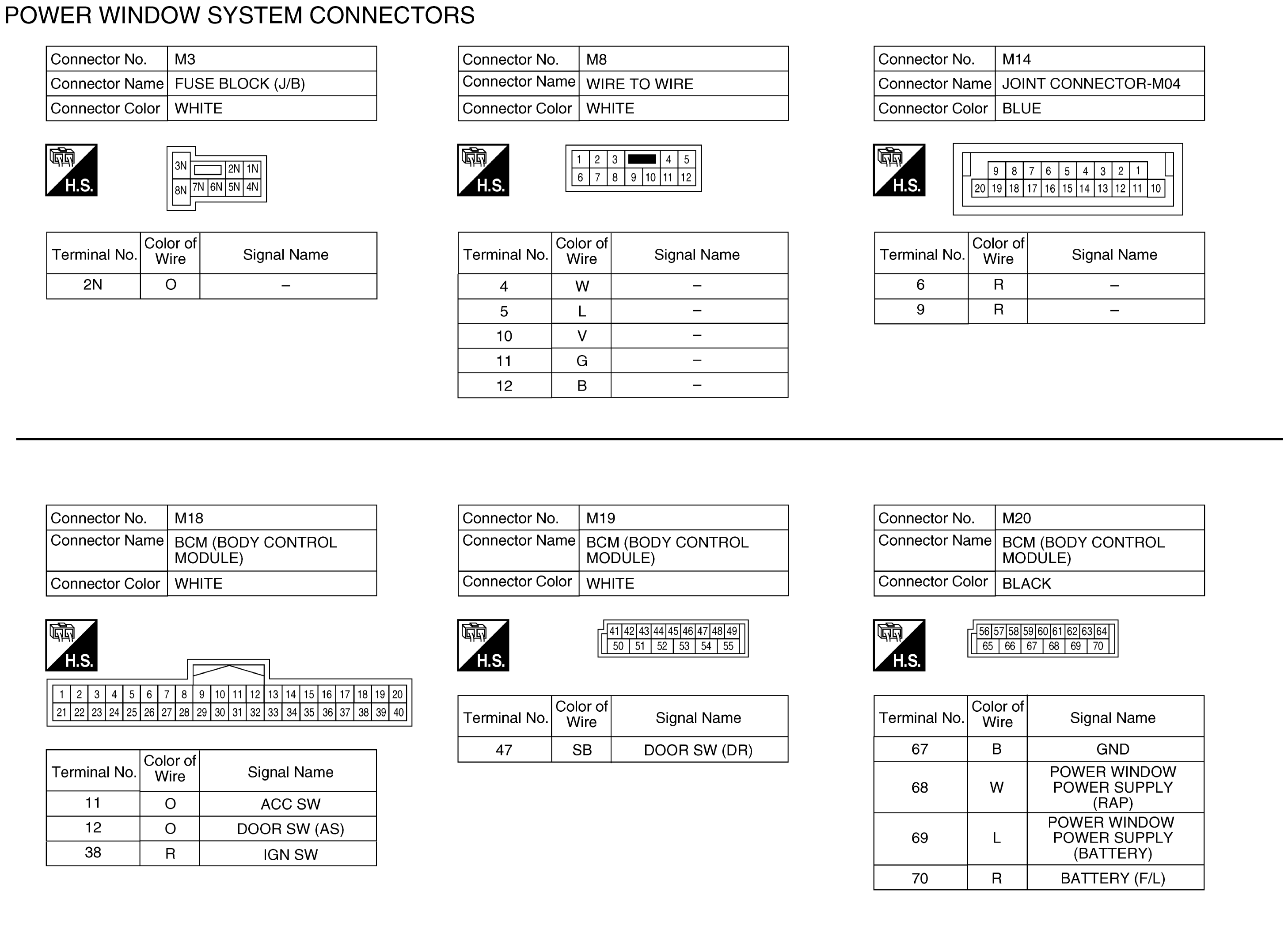

Fig 1: Power Window System Connector End Views (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Power Window System Connector End Views (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Power Window System Connector End Views (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Power Window System Connector End Views (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
