Connector End Views

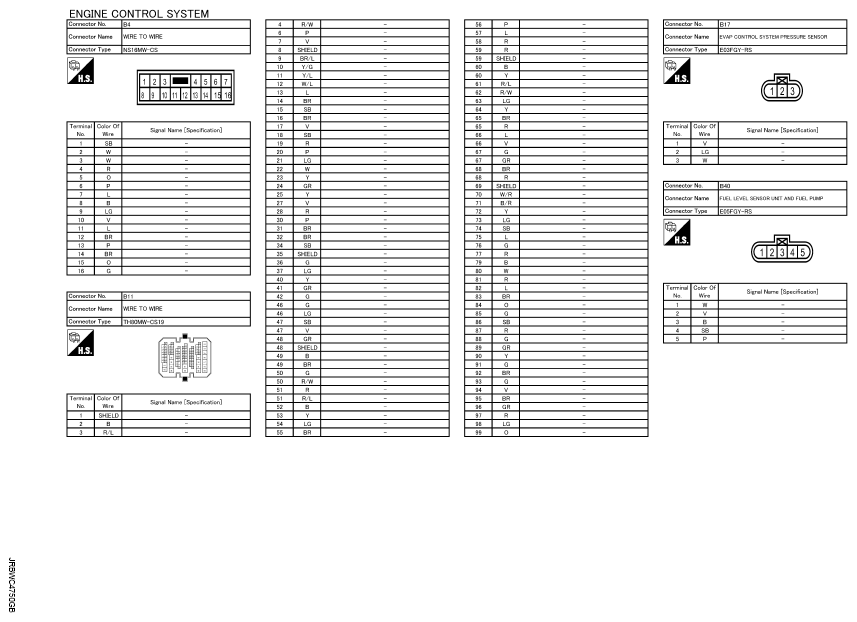

Fig 1: Engine Control System Connector End Views (1 Of 12)
G09561614Courtesy of NISSAN NORTH AMERICA, INC.

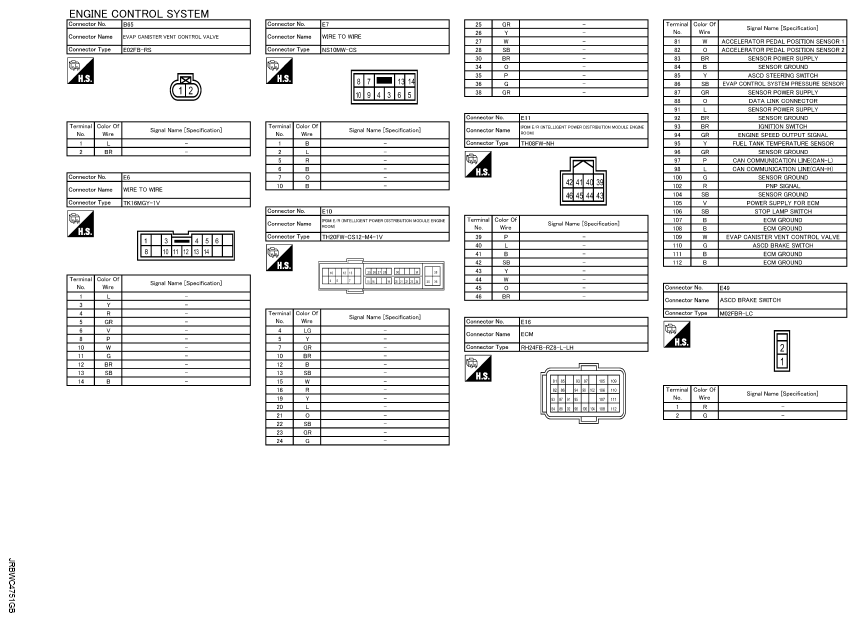

Fig 2: Engine Control System Connector End Views (2 Of 12)
G09561615Courtesy of NISSAN NORTH AMERICA, INC.

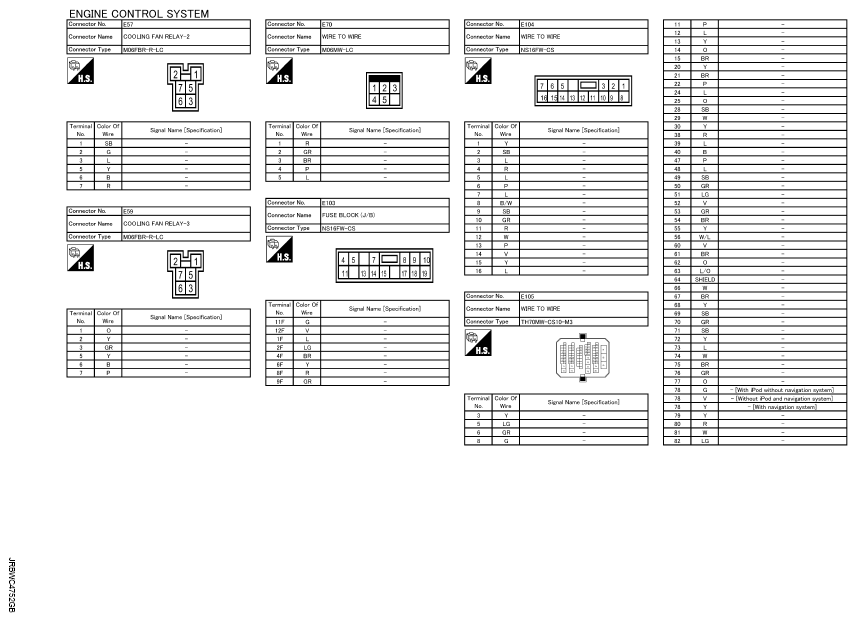

Fig 3: Engine Control System Connector End Views (3 Of 12)
G09561616Courtesy of NISSAN NORTH AMERICA, INC.

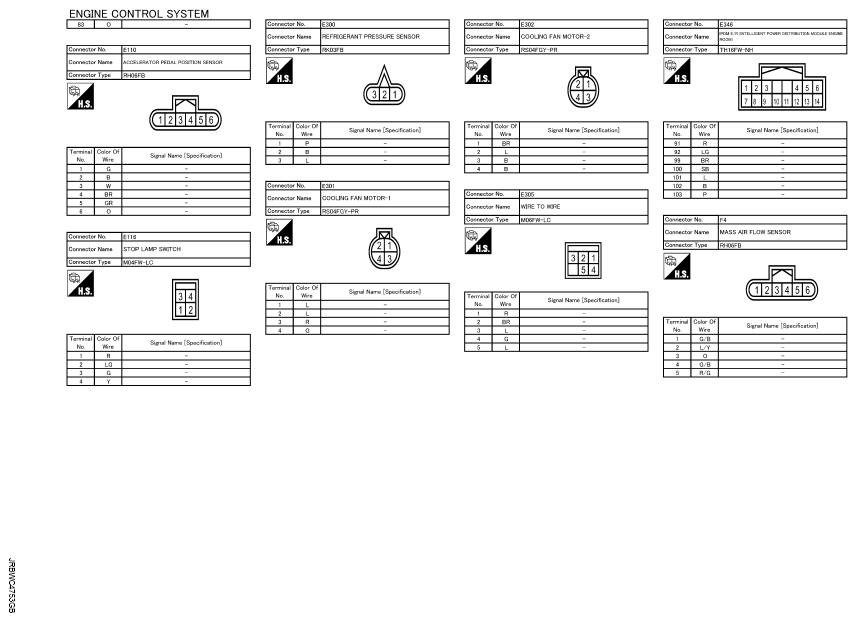

Fig 4: Engine Control System Connector End Views (4 Of 12)
G09561617Courtesy of NISSAN NORTH AMERICA, INC.

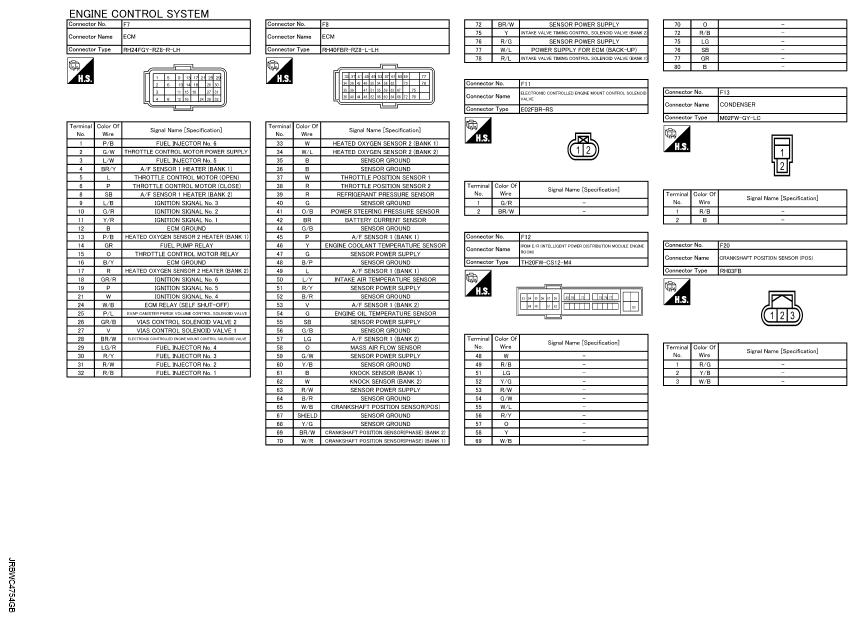

Fig 5: Engine Control System Connector End Views (5 Of 12)
G09561618Courtesy of NISSAN NORTH AMERICA, INC.

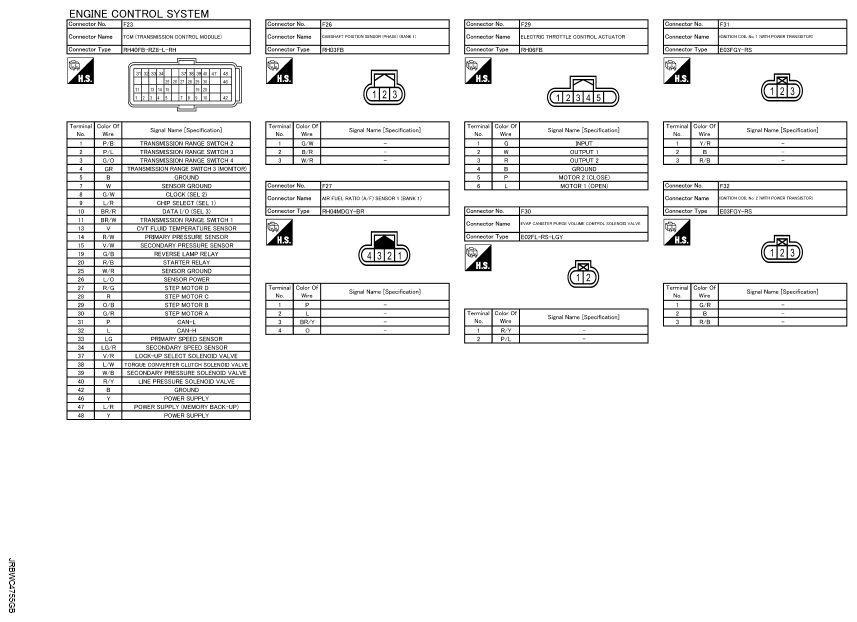

Fig 6: Engine Control System Connector End Views (6 Of 12)
G09561619Courtesy of NISSAN NORTH AMERICA, INC.

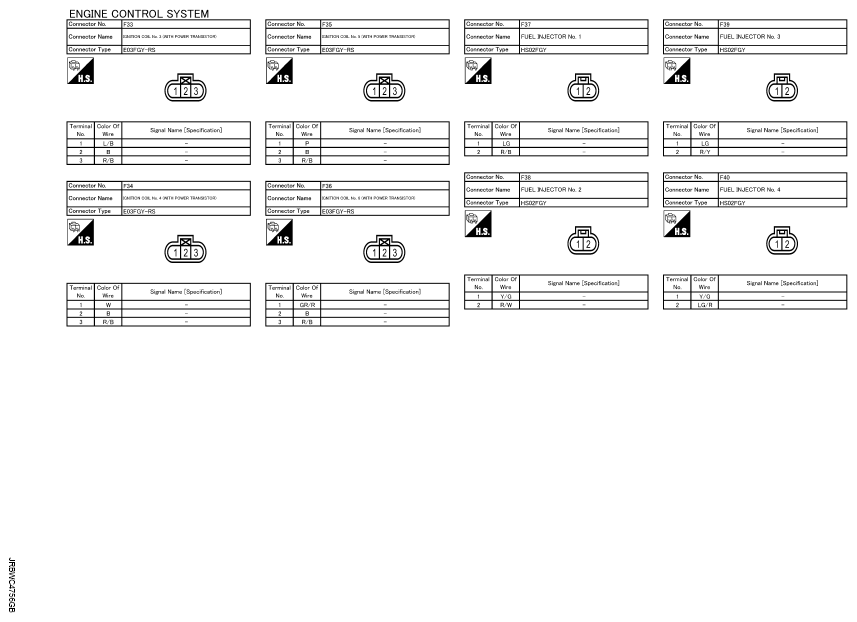

Fig 7: Engine Control System Connector End Views (7 Of 12)
G09561620Courtesy of NISSAN NORTH AMERICA, INC.

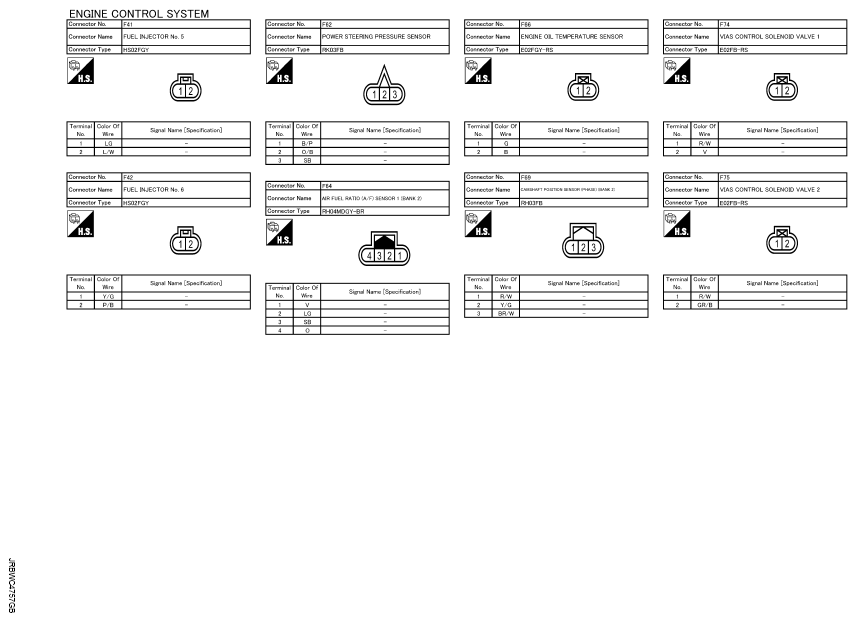

Fig 8: Engine Control System Connector End Views (8 Of 12)
G09561621Courtesy of NISSAN NORTH AMERICA, INC.

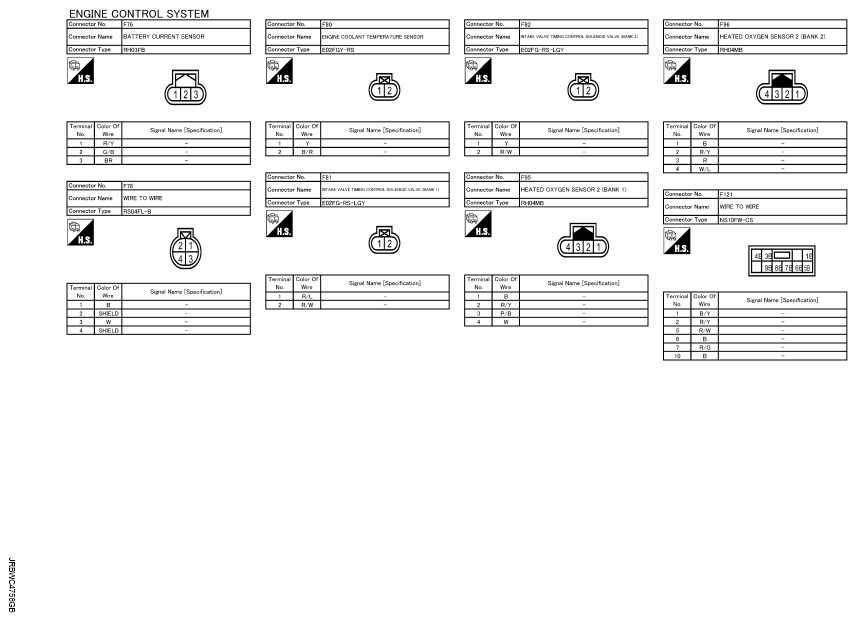

Fig 9: Engine Control System Connector End Views (9 Of 12)
G09561622Courtesy of NISSAN NORTH AMERICA, INC.

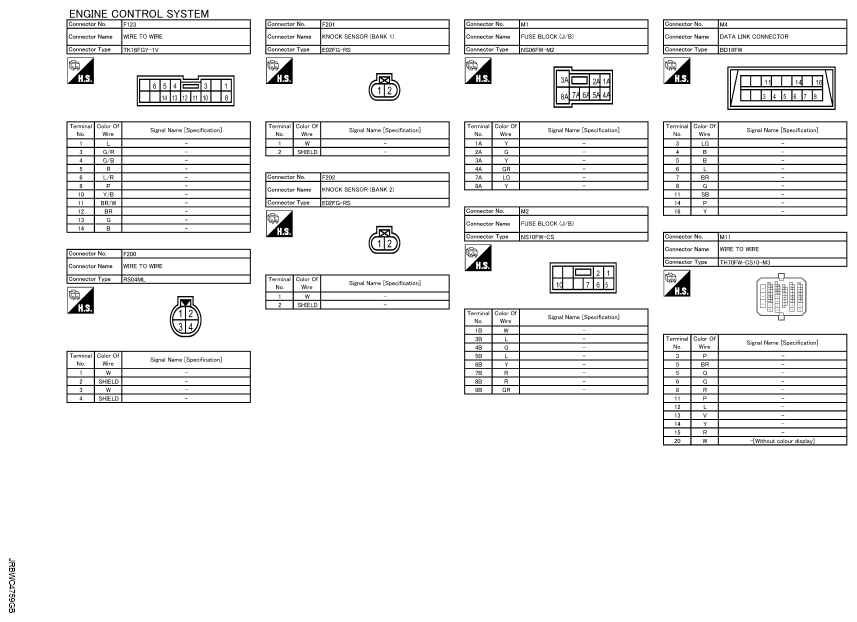

Fig 10: Engine Control System Connector End Views (10 Of 12)
G09561623Courtesy of NISSAN NORTH AMERICA, INC.

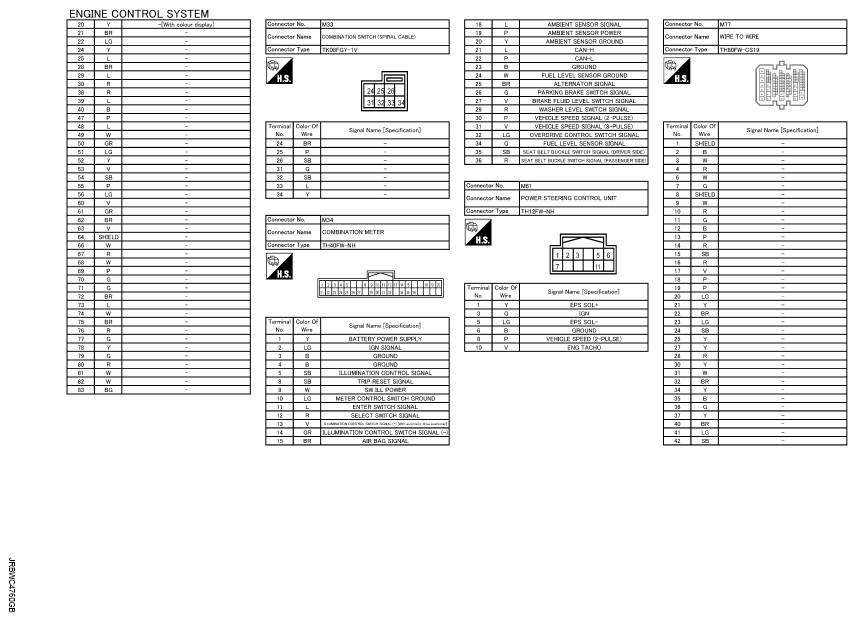

Fig 11: Engine Control System Connector End Views (11 Of 12)
G09561624Courtesy of NISSAN NORTH AMERICA, INC.
Fig 12: Engine Control System Connector End Views (12 Of 12)
G09561625Courtesy of NISSAN NORTH AMERICA, INC.
