LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2014
>>
Murano SL, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System (Except CROSSCABRIOLET)
>>
Removal And Installation
>>
Fuel Tank
>>
Exploded View
Exploded View

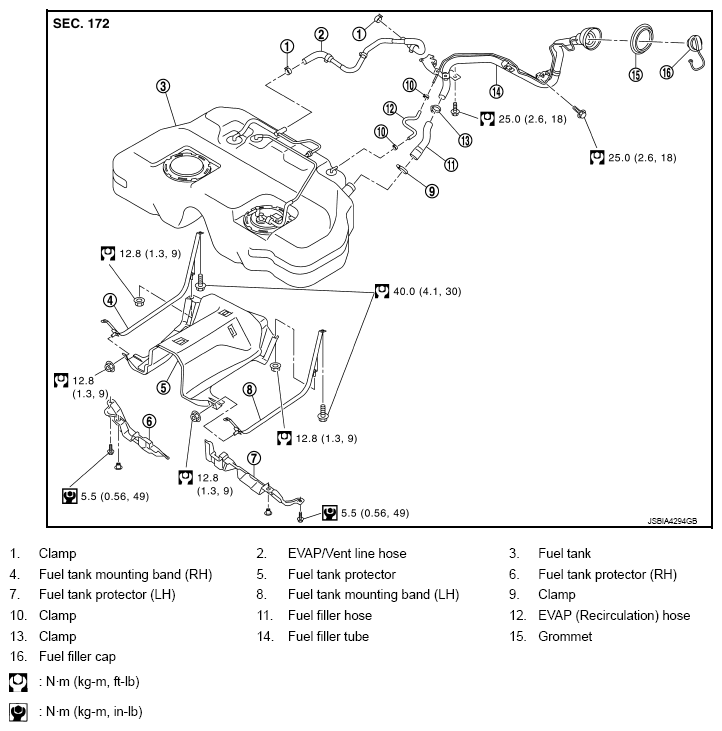

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
