Exploded View

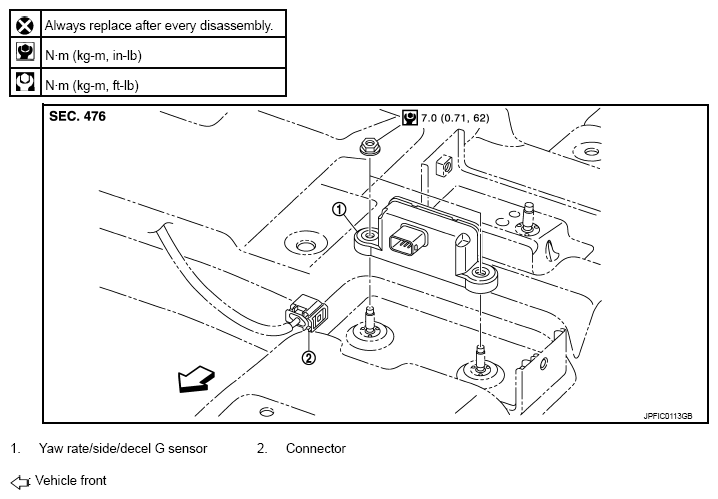

Fig 1: Yaw Rate/Side/Decel G Sensor With Torque Specifications

G09562367

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol in the figure.
