Exploded View

WARNING: This page is about a different car, the 2014 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

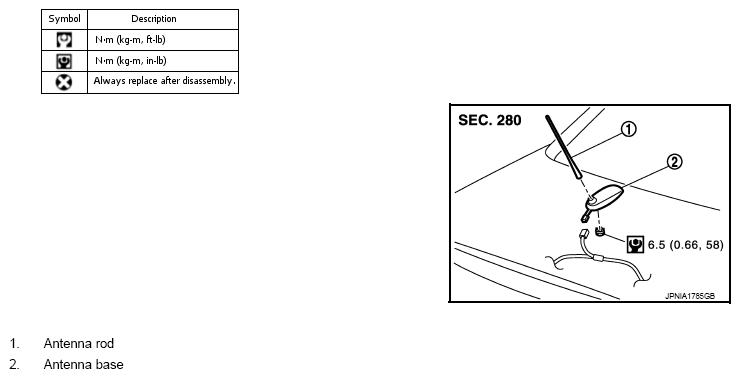

Fig 1: Antenna Rod And Antenna Base With Torque Specifications
G09511962Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
