Section 11 (Engine Cooling System)
>>
System Description
>>
Description
>>
Engine Cooling System
Engine Cooling System
WARNING:
This page is about a different car, the 2014 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

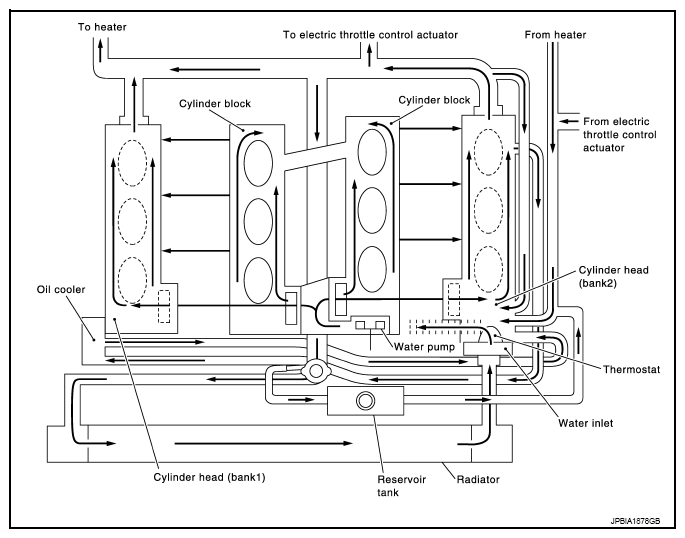

Fig 1: Engine Cooling System Operation Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
