Engine Cooling System Schematic

WARNING: This page is about a different car, the 2014 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

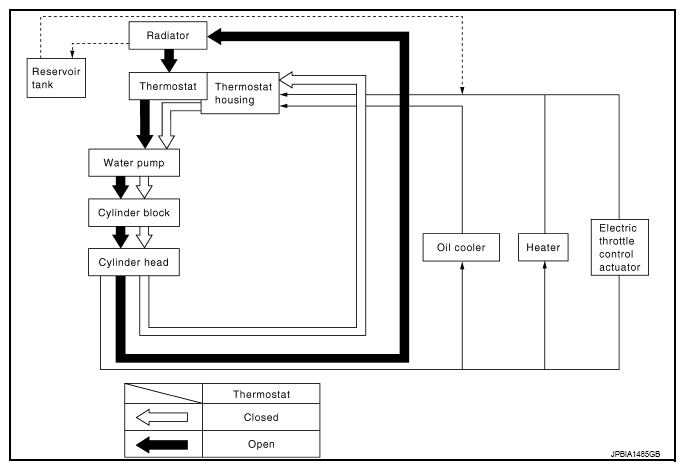

Fig 1: Engine Cooling System Schematic
G09506724Courtesy of NISSAN NORTH AMERICA, INC.
