Home
>>
Nissan-Datsun
>>
2014
>>
Murano LE, AWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Mechanical (Except CROSSCABRIOLET)
>>
Removal And Installation
>>
Intake Manifold Collector
>>
Exploded View
Exploded View

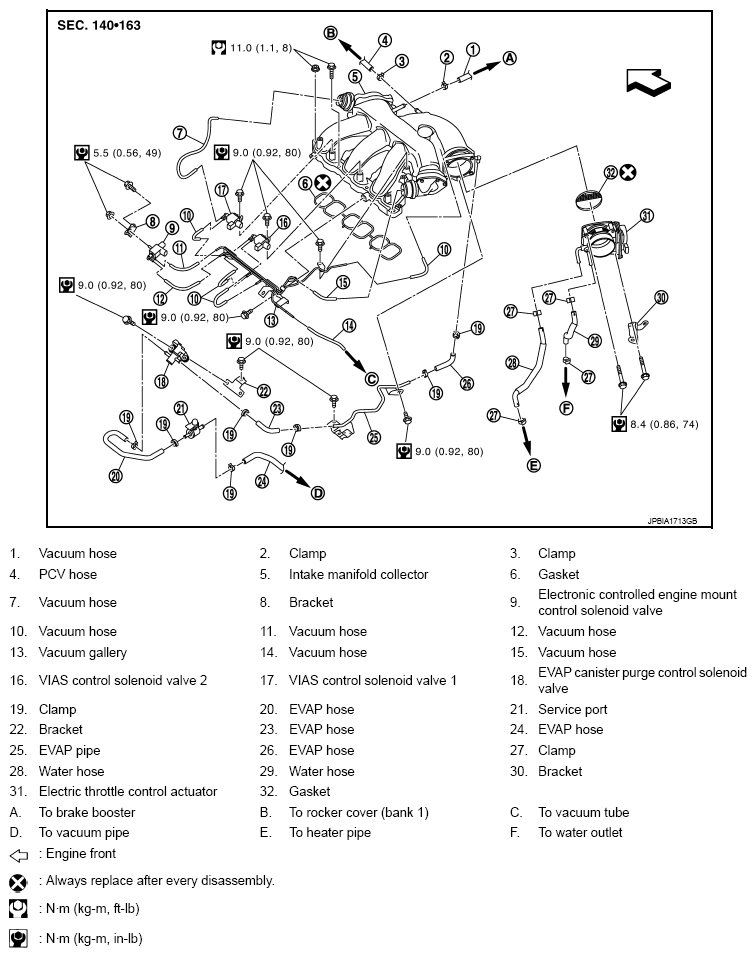

Fig 1: Exploded View Of Intake Manifold Collector With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
