Engine Control System (Introduction) (CROSSCABRIOLET)
>>
System Description
>>
System
>>
Engine Control System
>>
ENGINE CONTROL SYSTEM: System Description
>>
System Diagram
System Diagram

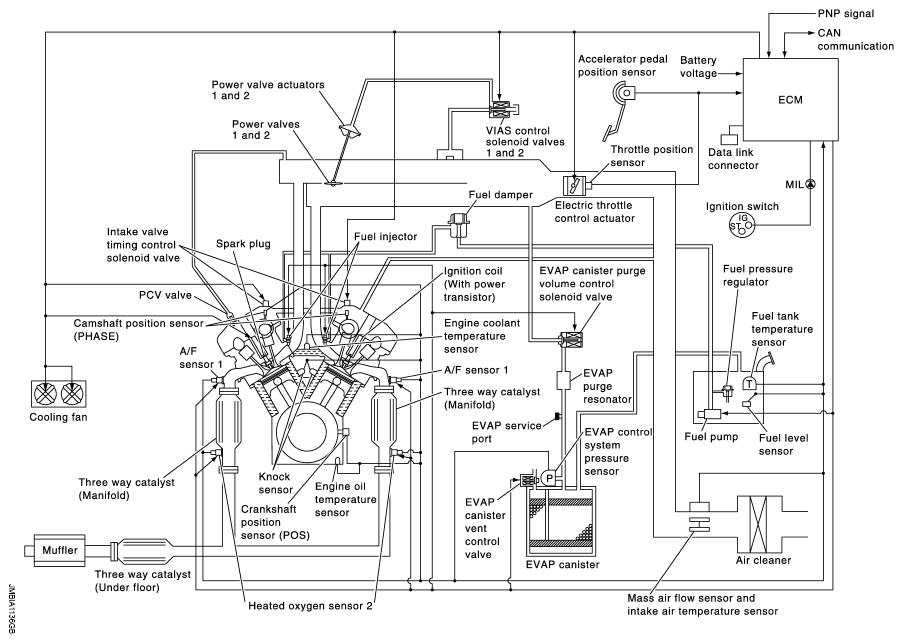

Fig 1: Engine Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
