Nissan-Datsun
>>
2014
>>
Maxima SV
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System
>>
Removal And Installation
>>
Hydraulic Line
>>
Exploded View
Exploded View

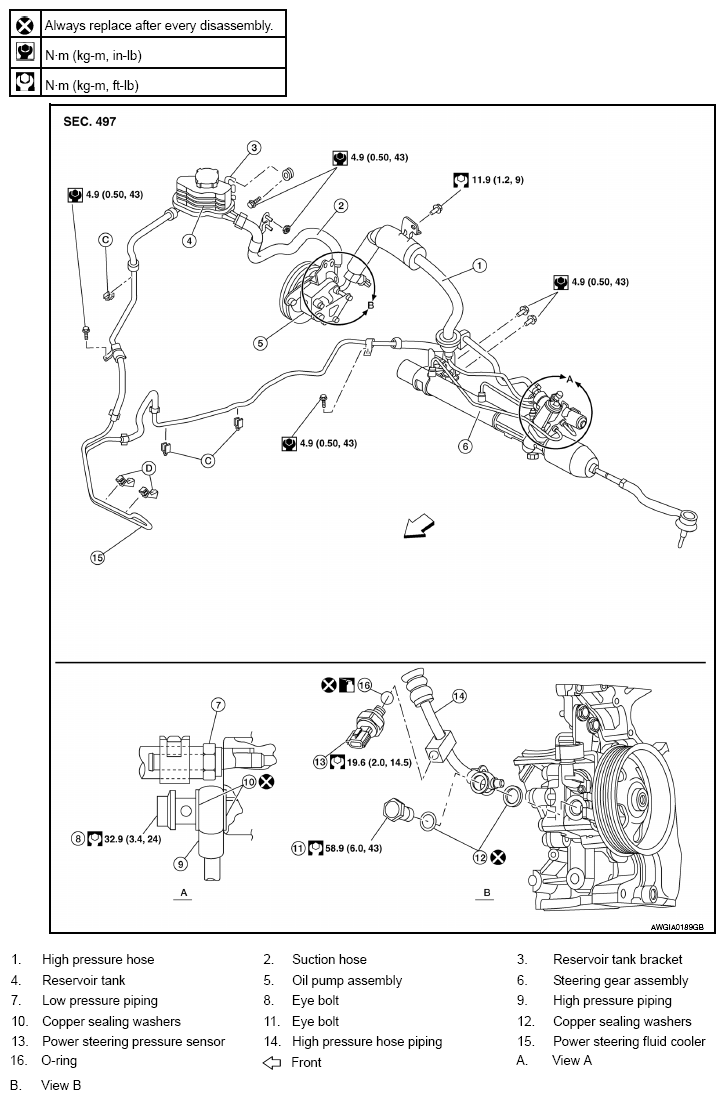

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
