Connector End Views

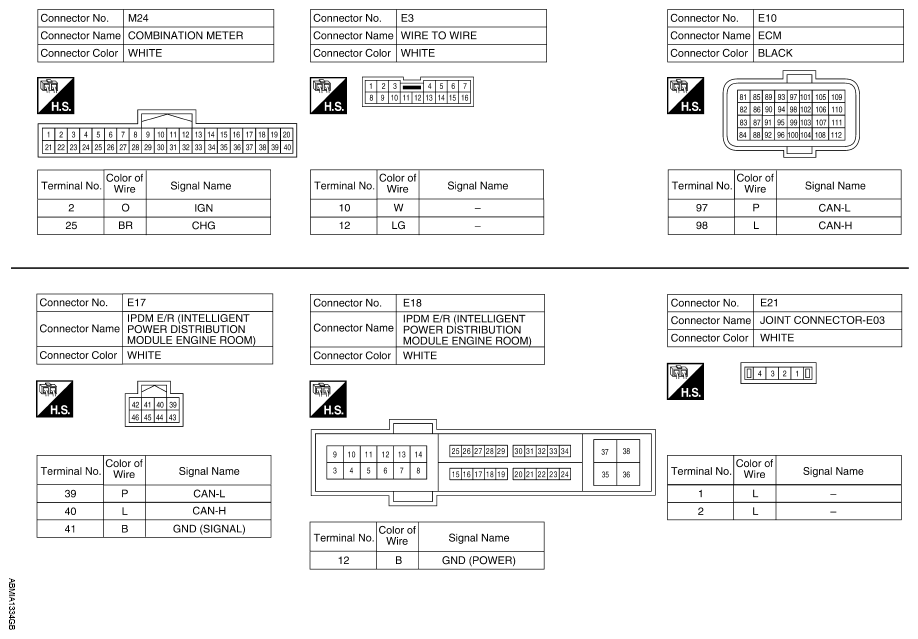

Fig 1: Charging System Connector End Views (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

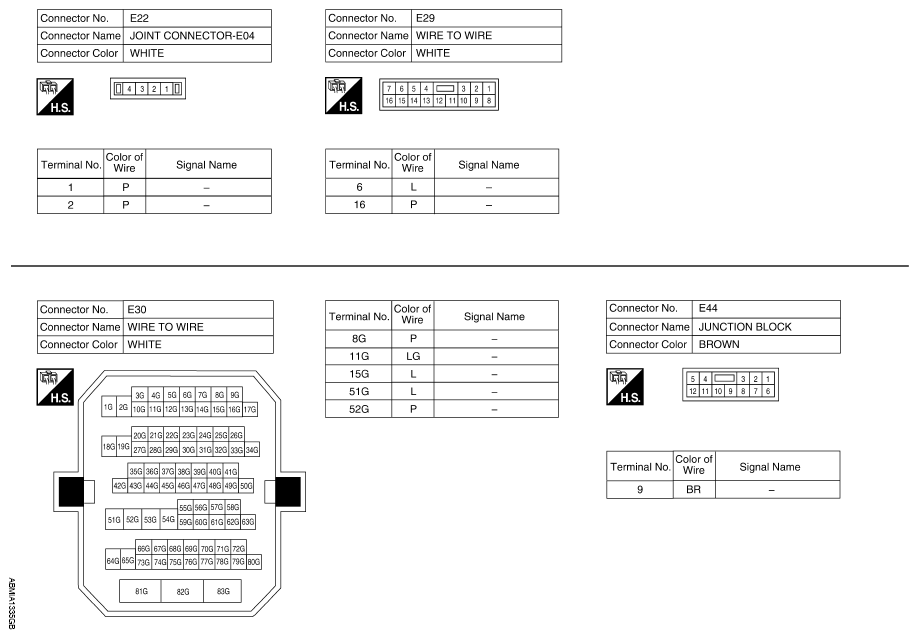

Fig 2: Charging System Connector End Views (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

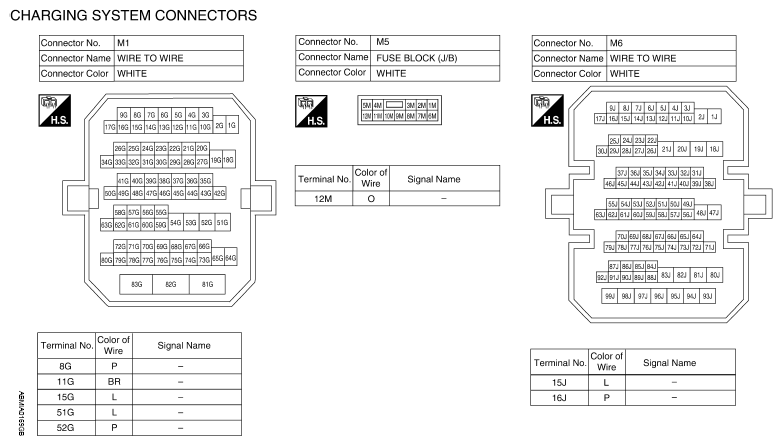

Fig 3: Charging System Connector End Views (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

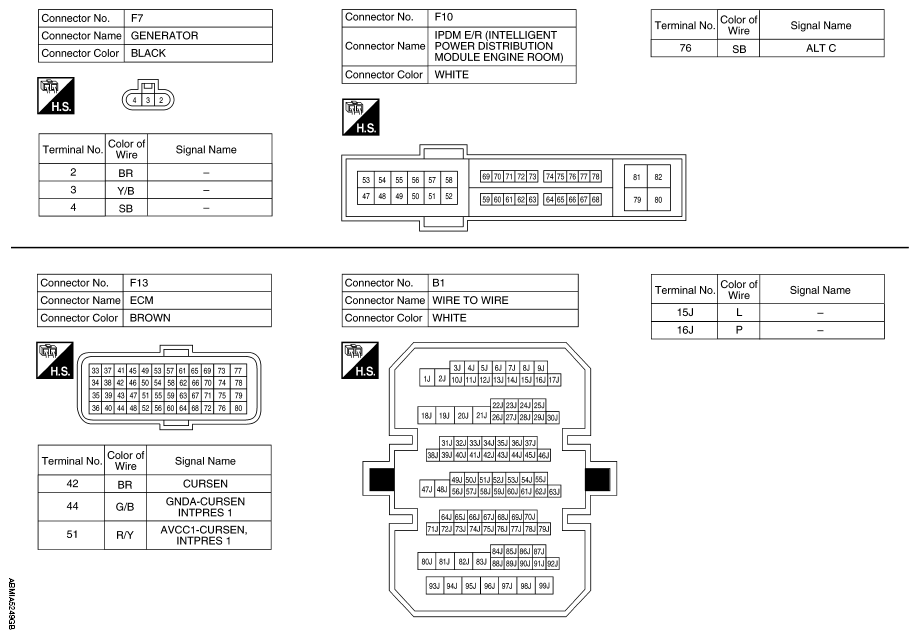

Fig 4: Charging System Connector End Views (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Charging System Connector End Views (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

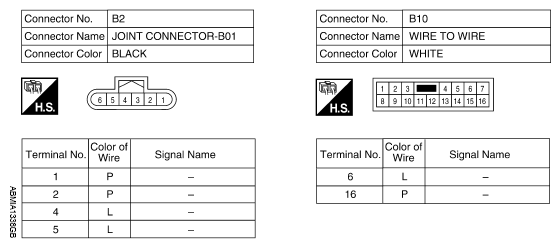

Fig 6: Charging System Connector End Views (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
