Removal and Installation: Removal

Remove the front door grip cover. Refer to "REMOVAL AND INSTALLATION ".
Remove the clip (A) from the door grip using suitable tool.

Fig 1: Identifying Door Grip Clip
Courtesy of NISSAN NORTH AMERICA, INC.
Release the metal clip and lift the power window and door lock/unlock switch (2) and switch finisher (1) as an assembly starting from the rear using a suitable tool, pull upward to remove it from the front door finisher.

Fig 2: Identifying Switch Finisher, Power Window And Door Lock/Unlock Switch
Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the harness connector from the power window and door lock/unlock switch.

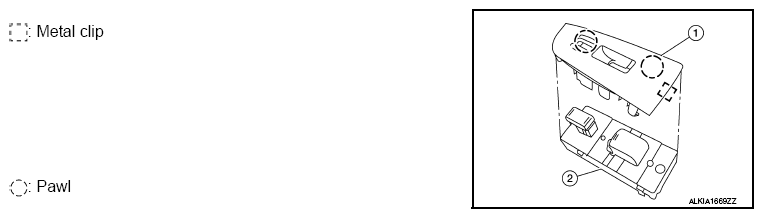

Release the pawls on each side to separate the switch finisher (1) from the power window and door lock/unlock switch (2).
◦: Pawl

CAUTION: Do not damage the pawl of the switch finisher.
