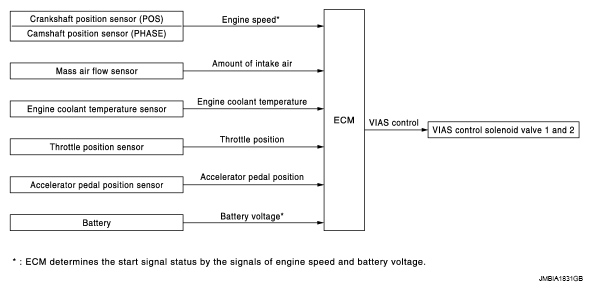

Home >> Nissan-Datsun >> 2014 >> Maxima S >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Introduction) >> System Description >> Variable Induction Air System >> System Diagram
