Home >> Nissan-Datsun >> 2014 >> Maxima S >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass & Window System >> Unit Disassembly And Assembly >> Front Regulator >> Exploded View

Exploded View

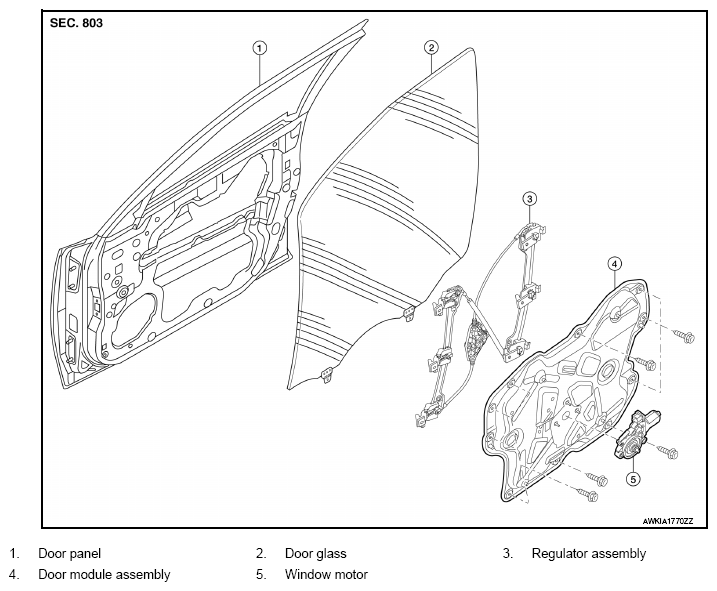

Fig 1: Exploded View Of Front Regulator

G09557739

Courtesy of NISSAN NORTH AMERICA, INC.
