Connector End Views

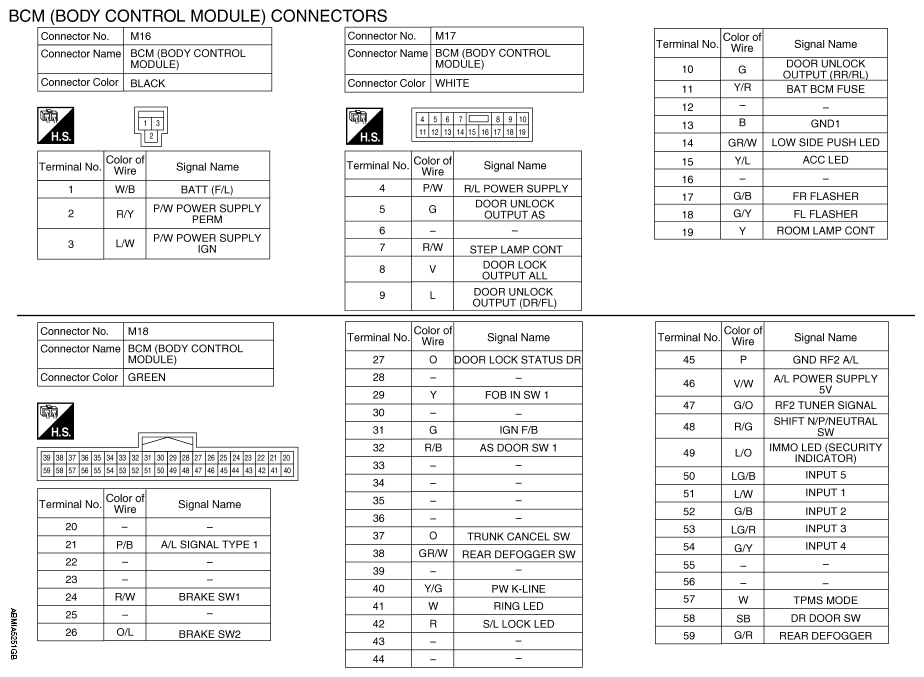

Fig 1: Body Control Module Connector End Views (1 Of 3)
G09559125Courtesy of NISSAN NORTH AMERICA, INC.

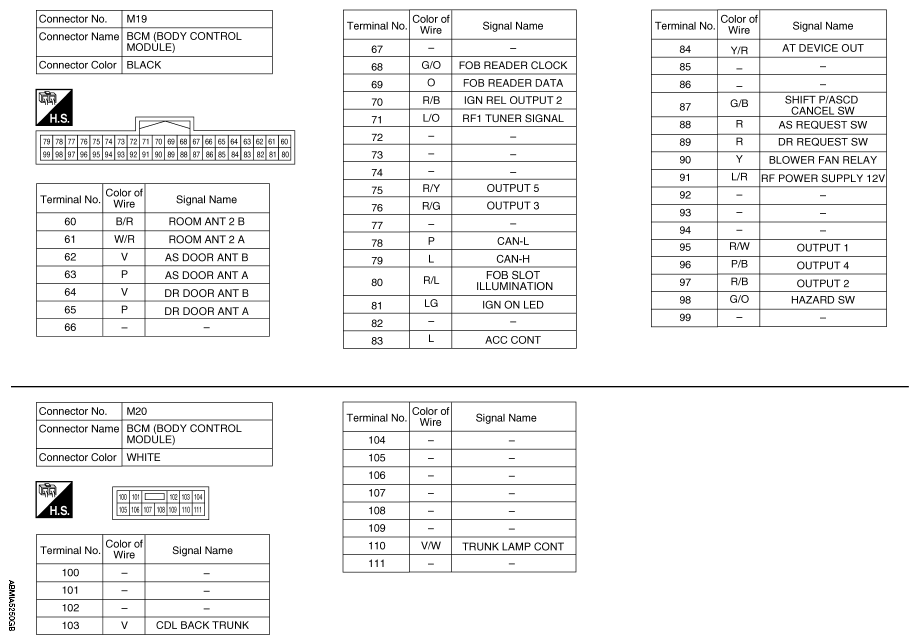

Fig 2: Body Control Module Connector End Views (2 Of 3)
G09559126Courtesy of NISSAN NORTH AMERICA, INC.

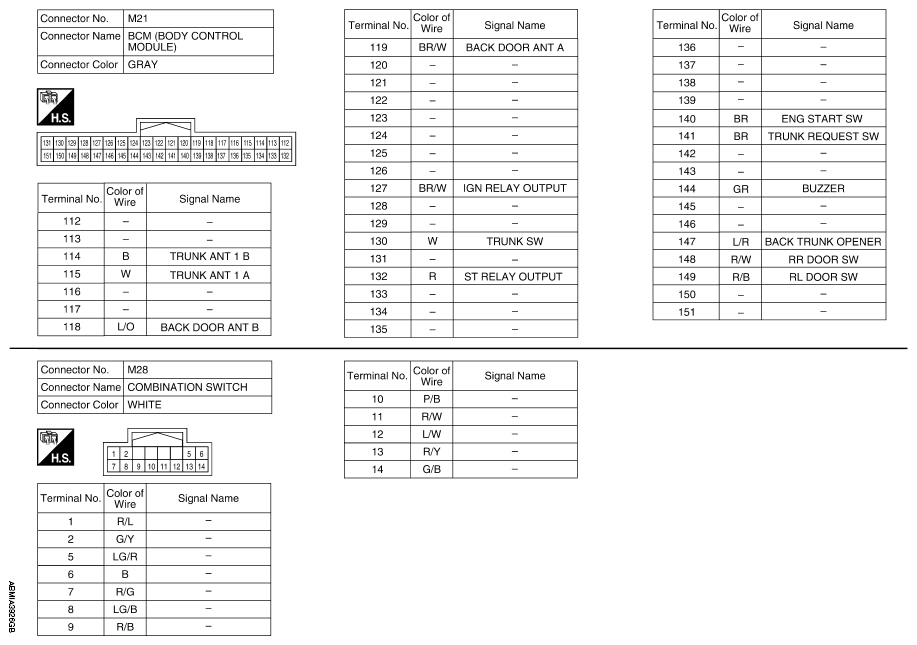

Fig 3: Body Control Module Connector End Views (3 Of 3)
G08925763Courtesy of NISSAN NORTH AMERICA, INC.
