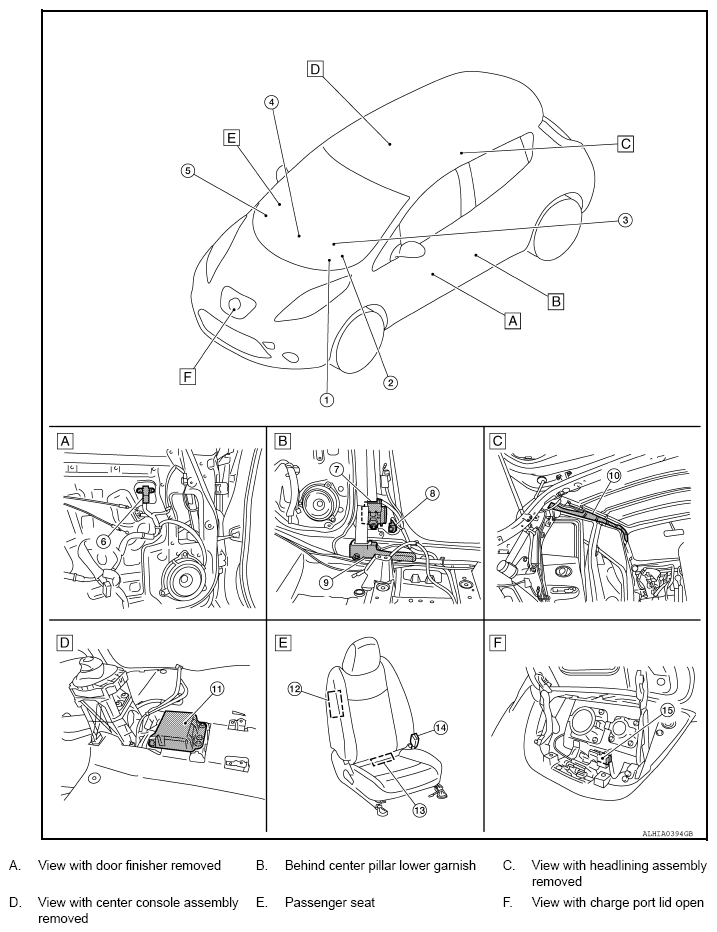

Component Parts Location
| No. | Component | Function |
|---|---|---|
| 1. | Combination meter (air bag, belt warning lamp) | Refer to "MAIN COMPONENT PARTS AND FUNCTIONS: AIR BAG WARNING LAMP ". |
| 2. | Combination switch (spiral cable) | Refer to "MAIN COMPONENT PARTS AND FUNCTIONS: SPIRAL CABLE ". |
| 3. | Driver air bag module | Refer to "AIR BAG MODULE: DRIVER AIR BAG MODULE ". |
| 4. | Front passenger air bag OFF indicator | Turns the front passenger air bag OFF indicator lamp ON when the front passenger seat is occupied by a child or a child-seat |
| 5. | Passenger air bag module | Refer to "AIR BAG MODULE: PASSENGER AIR BAG MODULE ". |
| 6. | Front door satellite sensor LH | Refer to "MAIN COMPONENT PARTS AND FUNCTIONS: SATELLITE SENSOR ". |
| 7. | Front LH seat belt pre-tensioner | Refer to "SEAT BELT PRE-TENSIONER WITH LOAD LIMITER ". |
| 8. | LH side air bag (satellite sensor) | Refer to "MAIN COMPONENT PARTS AND FUNCTIONS: SATELLITE SENSOR ". |
| 9. | Lap seat belt pre-tensioner (driver side) | Refer to "DOUBLE PRE-TENSIONER SEAT BELT ". |
| 10. | LH side front curtain air bag module | Refer to "AIR BAG MODULE: CURTAIN AIR BAG MODULE ". |
| 11. | Air bag diagnosis sensor unit | Refer to "MAIN COMPONENT PARTS AND FUNCTIONS: AIR BAG DIAGNOSIS SENSOR UNIT ". |
| 12. | RH side front curtain air bag module | Refer to "INFLATOR: SIDE AIR BAG INFLATOR ". |
| 13. | Occupant classification system control unit | Transmits the passenger seat status (occupied or empty) to air bag diagnosis sensor unit. It is installed in the passenger seat cushion. Refer to "HEATED SEAT SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location. |
| 14. | Seat belt buckle switch (passenger side) | Controls deployment timing depending on the seat belt condition that is fastened or unfastened. It is installed in the seat belt buckle. Refer to "EXPLODED VIEW " for detailed installation location. |
| 15. | Crash zone sensor | Refer to "MAIN COMPONENT PARTS AND FUNCTIONS: CRASH ZONE SENSOR ". |
