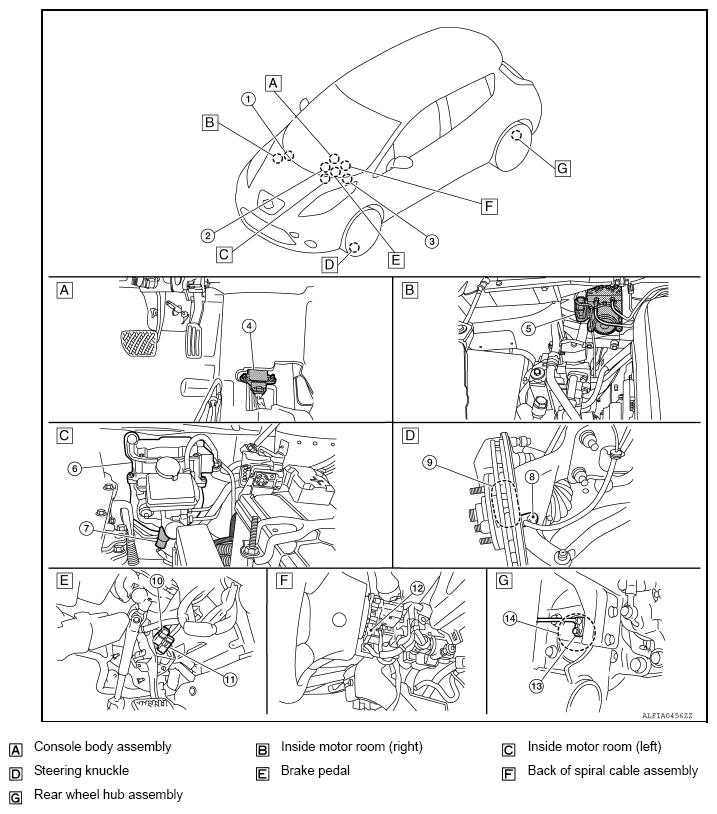

Component Parts Location
| No. | Component parts | Function | ||
|---|---|---|---|---|
| (1) | VCM | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
Refer to "COMPONENT PARTS LOCATION " for detailed installation location. |
||
| (2) | Combination meter | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:
Refer to "METER SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location. |
||
| (3) | VDC OFF switch | "VDC OFF SWITCH " | ||
| (4) | Yaw rate/side/decel G sensor | "YAW RATE/SIDE/DECEL G SENSOR " | ||
| (5) | ABS actuator and electric unit (control unit) | "ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) " | ||
| (6) | Electrically-driven intelligent brake | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication and brake communication line(1):
|
||
| (7) | Master cylinder pressure sensor | "MASTER CYLINDER PRESSURE SENSOR " | ||
| (8) | Front wheel sensor | "WHEEL SENSOR AND SENSOR ROTOR " | ||
| (9) | Front sensor rotor | |||
| (10) | Stop lamp switch | "STOP LAMP SWITCH " | ||
| (11) | Brake pedal position switch | "BRAKE PEDAL POSITION SWITCH " | ||
| (12) | Steering angle sensor | "STEERING ANGLE SENSOR " | ||
| (13) | Rear wheel sensor | "WHEEL SENSOR AND SENSOR ROTOR " | ||
| (14) | Rear sensor rotor | |||
|
||||
