Component Parts Location

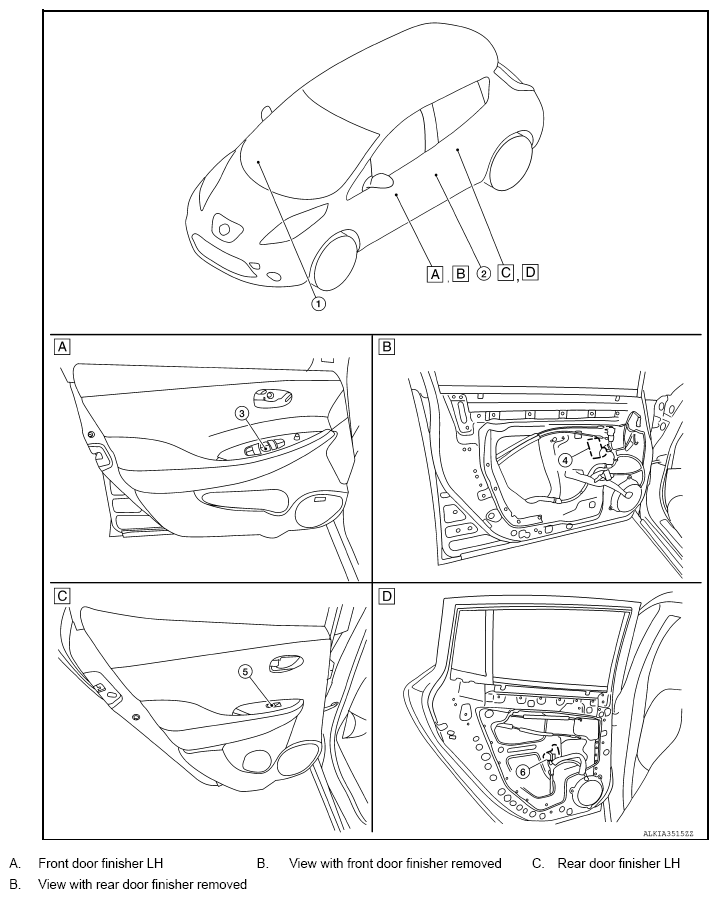

Fig 1: Power Window Control System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component parts	Function
1.	BCM	Supplies power supply to power window switches Controls retained power Refer to "BODY CONTROL SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
2.	Front door switch LH	Inputs door open/close condition to BCM Refer to "COMPONENT PARTS LOCATION " for detailed installation location.
3.	Main power window and door lock/unlock switch	Refer to "POWER WINDOW MAIN SWITCH ".
4.	Front power window motor LH	Refer to "POWER WINDOW MOTOR ".
5.	Rear power window switch LH	Refer to "POWER WINDOW SWITCH ".
6.	Rear power window motor LH	Refer to "POWER WINDOW MOTOR ".
