Nissan-Datsun
>>
2014
>>
Juke SV, 4WD
>>
Repair and Diagnosis (Single Page)
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
Wiring Diagram
>>
Brake Control System
>>
Connector End Views
Connector End Views

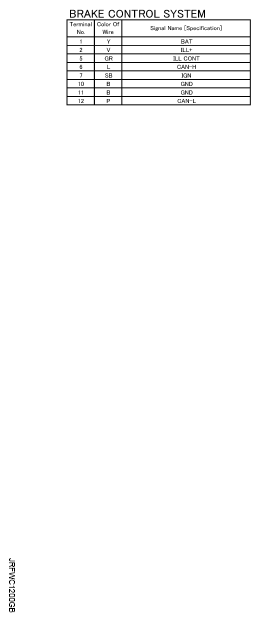

Fig 1: Brake Control System Connector End Views (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

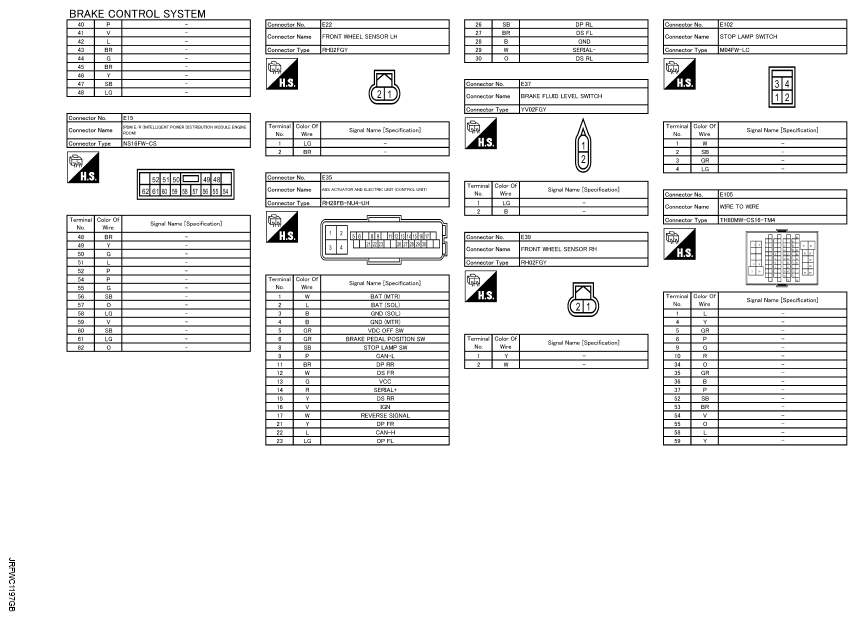

Fig 2: Brake Control System Connector End Views (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

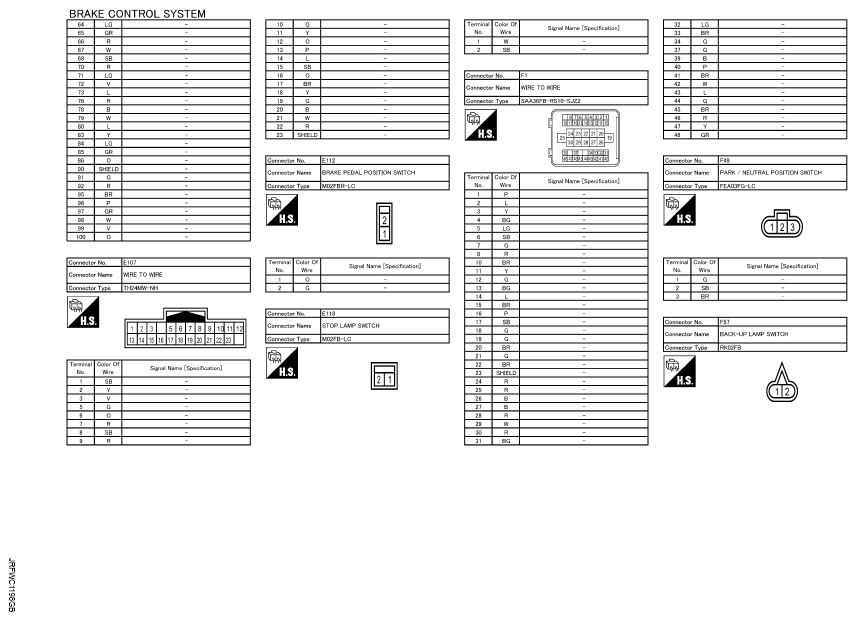

Fig 3: Brake Control System Connector End Views (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

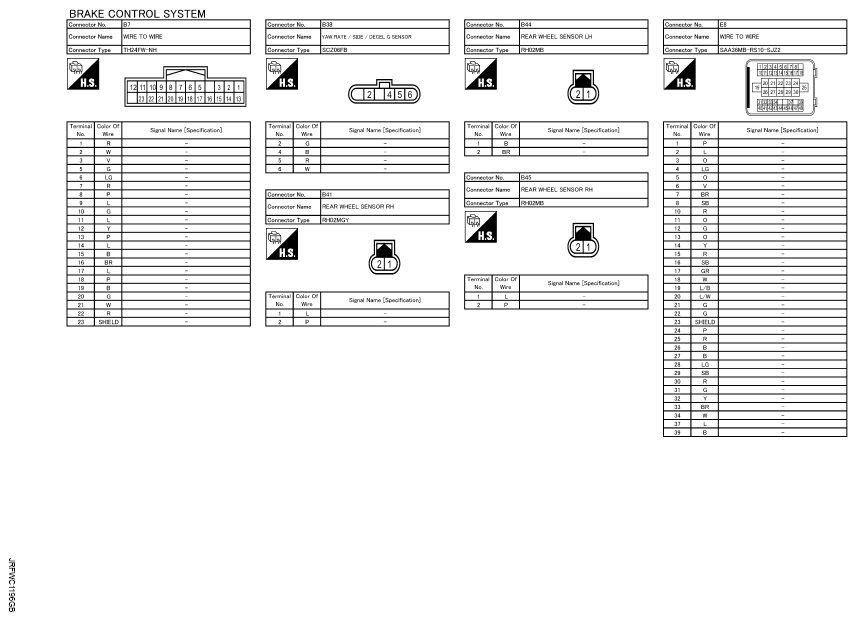

Fig 4: Brake Control System Connector End Views (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

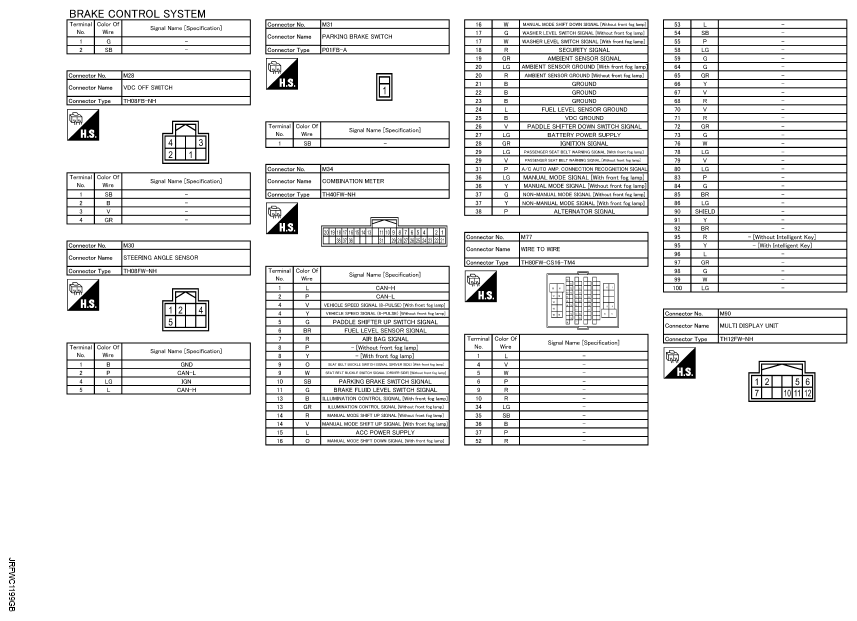

Fig 5: Brake Control System Connector End Views (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
