Transfer Case: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install the oil defense to transfer cover.
  2. Install gaskets onto filler plug and drain plug and install them into transfer case.
    CAUTION:
    • Never reuse gasket.
    • Install filler plug after oil is filled.
  3. Install the dowel pin to transfer case.
    CAUTION: Never reuse the dowel pin.
  4. Select drive pinion adjusting shim, and install it to transfer case. Refer to "ADJUSTMENT ".
  5. Install outer race of pinion bearing (front) to the transfer case with the drift (A) [SST: ST37830000 (-)].
    CAUTION:
    • Never reuse pinion bearing.
    • Apply gear oil to the pinion bearing.

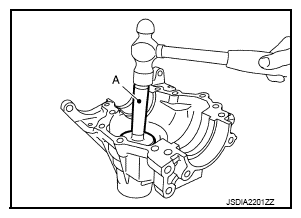

    Fig 1: Installing Front Pinion Bearing Outer Race Using Drift
    G09244236Courtesy of NISSAN NORTH AMERICA, INC.
  6. Install outer race of pinion bearing (rear) to transfer case with the drift (A) [SST: ST33230000 (J-25805-01)].
    CAUTION:
    • Never reuse pinion bearing.
    • Apply gear oil to the pinion bearing.

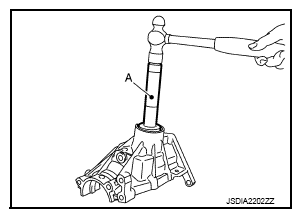

    Fig 2: Installing Rear Pinion Bearing Outer Race Using Drift
    G09244237Courtesy of NISSAN NORTH AMERICA, INC.
  7. Install drive pinion assembly to transfer case. Refer to "ASSEMBLY ".
  8. Install ring gear shaft assembly to transfer case. Refer to "ASSEMBLY ".

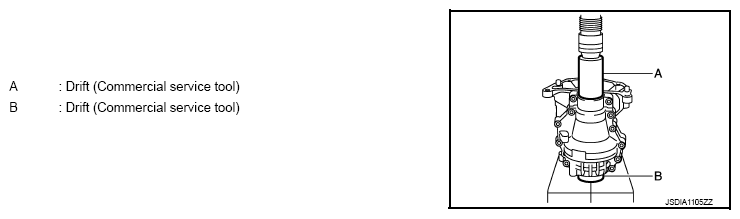

  9. Set the drifts (A and B) to right and left side spacers individually. Compress ring gear shaft assembly with ring gear bearing to install transfer cover to transfer case.
    Fig 3: Installing Transfer Cover To Transfer Case Using Tool
    G09244238Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Never apply gasket fluid on the mounting surface.
    • Clean the mounting surface of transfer case and transfer cover to degrease sufficiently.
    • The drift shall be placed on the center of the spacers.
    • The pressure shall be as low as to install ring gear shaft assembly into transfer case. The maximum pressure shall be 10 kN (1 ton, 1.0 Imp ton).
    • If the adjusting shims and spacers are installed by tapping, the transfer cover may be damaged. Avoid tapping.
  10. Check backlash, tooth contact, and total preload. Refer to "ADJUSTMENT ".
    CAUTION: Measure the total preload without the transfer case oil seals.
  11. Remove transfer cover. Refer to "DISASSEMBLY ".
  12. Apply liquid gasket (1) to mating surface of transfer cover.
    CAUTION:
    • Remove old gasket on mounting surfaces. Also remove any moisture, oil, or foreign material on mounting surfaces.
    • The width of sealant bend is 2 - 3 mm (0.08 - 0.012 in).
    • Overlap both ends of the bead for at least 3 mm (0.012 in).
    • Immediately install transfer cover after installing applying gasket.

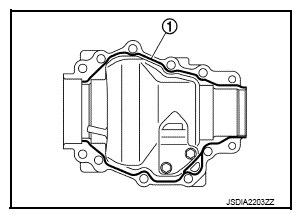

    Fig 4: Identifying Liquid Gasket Applying Area On Transfer Cover Mating Surface
    G09244239Courtesy of NISSAN NORTH AMERICA, INC.

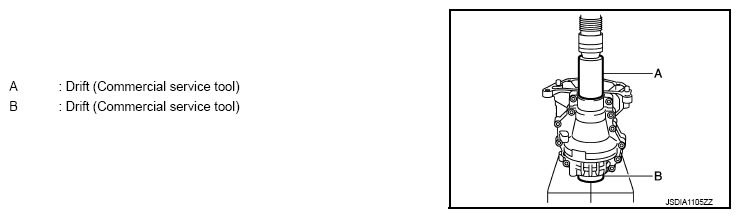

  13. Set the drifts (A and B) to right and left side spacers individually. Compress ring gear shaft assembly with ring gear bearing to install transfer cover to transfer case.
    Fig 5: Installing Transfer Cover To Transfer Case Using Drift
    G09244240Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Immediately install after applying gasket.
    • The drift shall be placed on the center of the spacers.
    • The pressure shall be as low as to install ring gear shaft assembly into transfer case. The maximum pressure shall be 10 kN (1 ton, 1.0 Imp ton).
    • If the adjusting shims and spacers are installed by tapping, the transfer cover may be damaged. Avoid tapping.
  14. Tighten transfer cover mounting bolts to the specified torque.
  15. Using the drifts (A and B), install transfer case oil seal (left) (1) within the dimension (L) shown as follows.

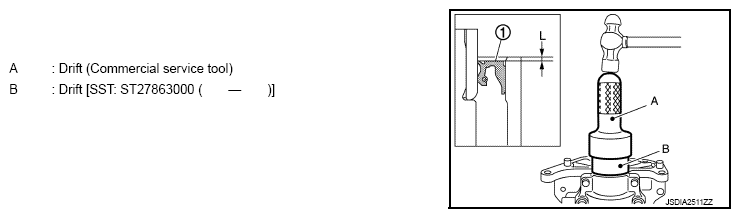

    Fig 6: Installing Left Transfer Case Oil Seal Using Drifts
    G09244241Courtesy of NISSAN NORTH AMERICA, INC.

    L: 1.0 - 1.6 mm (0.040 - 0.063 in)

    CAUTION:
    • Never reuse oil seals.
    • When installing, never incline oil seals.
    • Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference of oil seal.
    • Immediately install after installing transfer cover.
    • After installing oil seal, immediately wipe out gasket squeezed out inward of transfer case.
  16. Using the drifts (A) [SST: ST35271000 (J-26091)], install transfer case oil seal (right) (1) within the dimension (L) shown as follows.

    L: 0 - 0.6 mm (0 - 0.024 in)

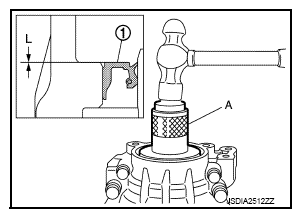

    Fig 7: Installing Right Transfer Case Oil Seal Using Drifts
    G09244242Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Never reuse oil seals.
    • When installing, never incline oil seals.
    • Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference of oil seal.
    • Immediately install after installing transfer cover.
    • After installing oil seal, immediately wipe out gasket squeezed out inward of transfer case.
