System - Basic Engine Control System

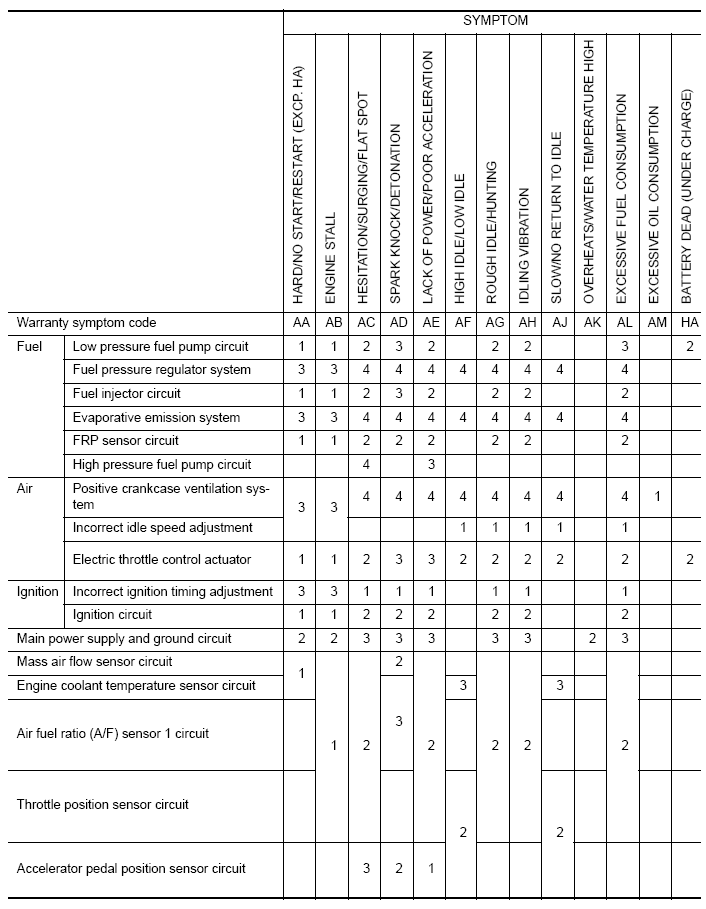

Fig 1: Engine Control System Symptom Table (1 Of 2)
G09242960Courtesy of NISSAN NORTH AMERICA, INC.

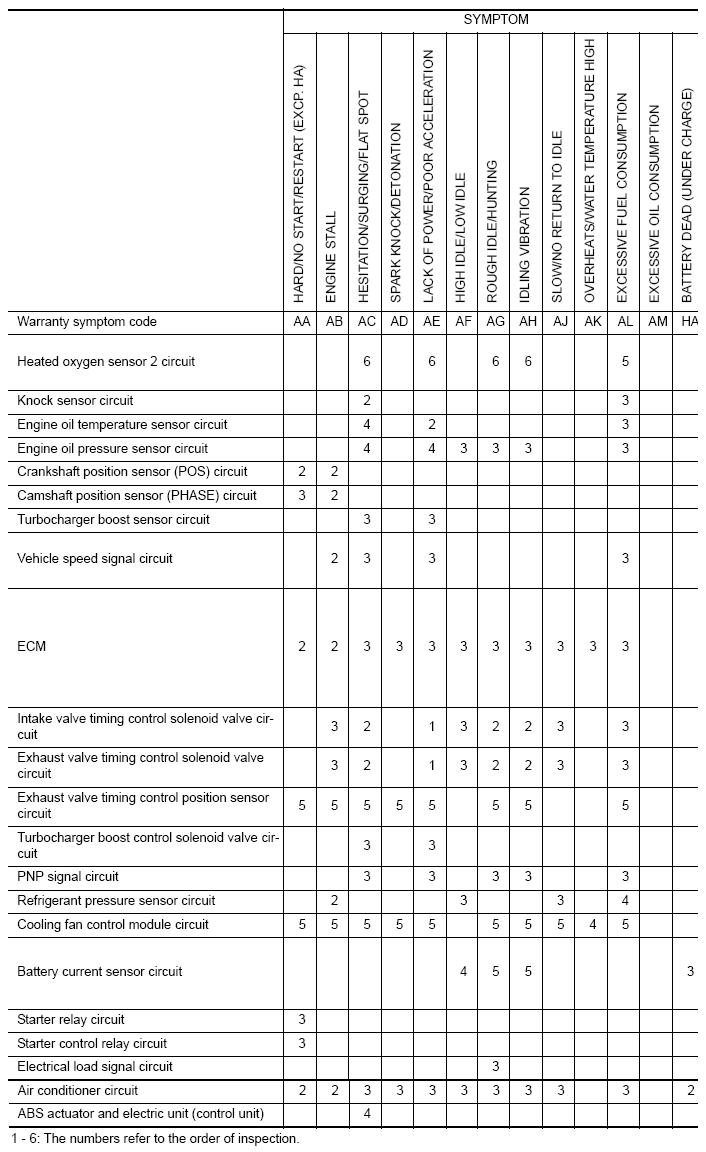

Fig 2: Engine Control System Symptom Table (2 Of 2)
G09242961Courtesy of NISSAN NORTH AMERICA, INC.
